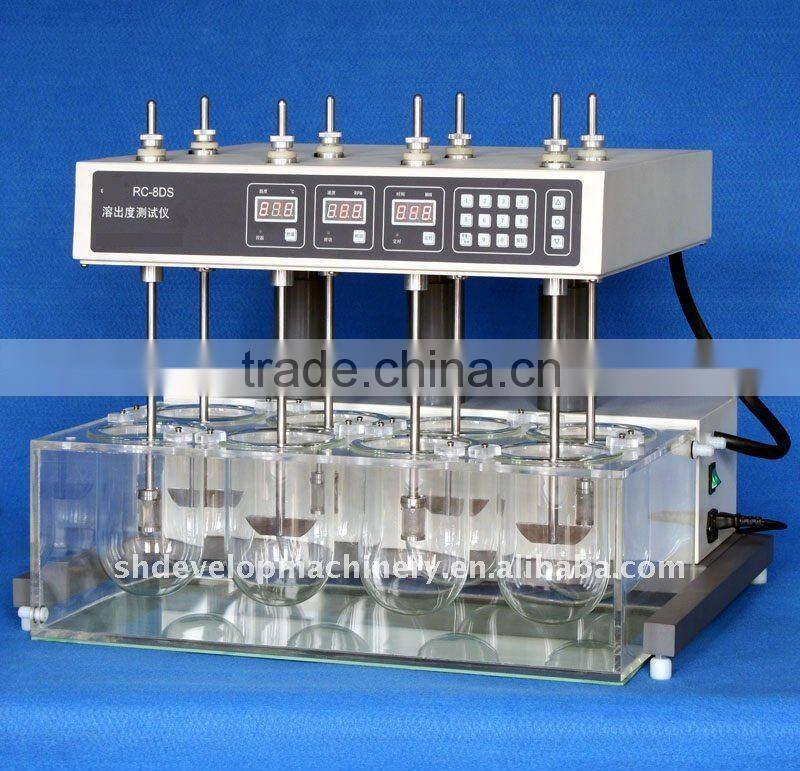

RC-8DS Tablet Dissolution Tester

Specifications

RC-8DS tablet dissolution tester

This Series of instruments are used for detecting velocity and extent of pharmaceutical  dissolution from tablet ,capsule etc in prescriptive menstruum

Applicable standards.

1. National standard (Chinese codex)/2000/

2.Corporate standard (Dissolution tester)Q/12XQ0187-2004

Features

1.  It has eight vessels and eight poles ,with four vessels and four poles in front and other two vessels at back ;

2. The head moves up/down automatically

1. The basket units and paddle units are made of imported stainless steel (ss316L)
2. The magnetism-pumped circular water current can heat the system evenly ,and the bath liquid can achieve an equal temperature.
3. A MPU is used in dissolution tester to automatically control the temperature,rotational speed and time ,and the parameters can be preset ant any time .
4. It can be operated conveniently by keystroke, The measurement result is displayed by LED ,The preset and real data can be displayed alternately in time .
5. Automation :Auto-set ,auto=diagnose ,auto-alarm.
6. It can test by self and alarm automatically ,The dissolution parameters of “Chinese codex 2000” are stored in and can be taken out at any time .
7. Time can be preset at many points ,The beeper sounds automatically to any point ,and then the tester automatically runs to the next one .

Specifications

1.Speed range                    (20-200)rpm

2. Speed accuracy                 ±2rpm

3.Temperature Range              ambient to +39.9°C

4.Temperature Stability             ±0.3°C

5.Preset timing                     six points(1-999)min

6.Time accuracy                   ±0.5min

7.Paddle radial run-out              ±0.5min

8.Basket radial run-out              ±0.1min

9.Power                           220v/50HZ/1000W  or 110v/60HZ/1000W

10.Dimesion                         (680×540×480)mm

11.Weight                          75KG
