Help CenterRing Gear Used for Hydrated Lime Plant
Related Products
-
China Manufacture of Load Cement BucketUS$ 83 - 165MOQ: 100 Pieces -
China Golden Suppliers Rollers for ConveyorsUS$ 30 - 63.5MOQ: 100 Pieces
-
Trough Shaped With no Deformation Cement Conveyor Parts EquipmentUS$ 53 - 106MOQ: 100 Pieces
-
Golden Supplier Convey Parts for Cement Manufacturing PlantUS$ 7,860 - 12,800MOQ: 1 Set
-
Cement Convey Parts Equipment With Head Axle GroupUS$ 9,800 - 16,800MOQ: 1 Set
Specifications
1. Ring gear used for hydrated lime plant2.High strength and tenacity
3.Good wear resistant
--production description
1.Hardness:HRC52-60
2.Lead time:30 days after deposit receiving
3.Ring gear surface:quenching(quenching reach 5mm)
4.Package:nude or iron-box package
5.model:SCD630 SCD800 SCD1000
6.Warranty:1 year
7.Dimension(L*W*H):according to you requirement
8.Material:ZG42SiMn
9.Material feature:wear resistant and tenacity
lor:customized
11.certification:TUV ISO
12.Quench:intermediate frequence quench
--Head Device
Model |
Material |
NO/teeth |
Teeth shape |
Section diameter |
Pin diameter |
Quenching deep |
SCD630 |
ZG42SiMn |
15 |
Double gear |
D=Ø614.65 |
D1=Ø50 |
5mm |
SCD800 |
ZG42SiMn |
25 |
Double gear |
D=Ø1005.27 |
D2=Ø60 |
5mm |
SCD1000 |
ZG42SiMn |
25 |
Double gear |
D=Ø1005.27 |
D3=Ø63 |
5mm |
--Tail Device
Model |
Material |
NO/teeth |
Teeth shape |
Section diameter |
Pin diameter |
Quenching deep |
SCD630 |
ZG42SiMn |
15 |
Double gear |
D=Ø614.65 |
D1= Ø50 |
5mm |
SCD800 |
ZG42SiMn |
21 |
Double gear |
D=Ø848.16 |
D2= Ø60 |
5mm |
SCD1000 |
ZG42SiMn |
21 |
Double gear |
D=Ø848.16 |
D3= Ø63 |
5mm |
--Used for head device and tail device

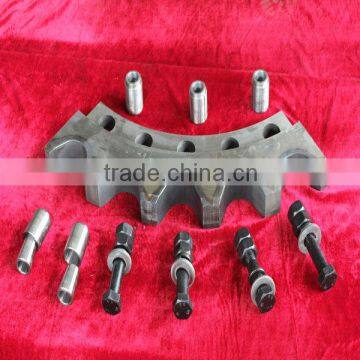

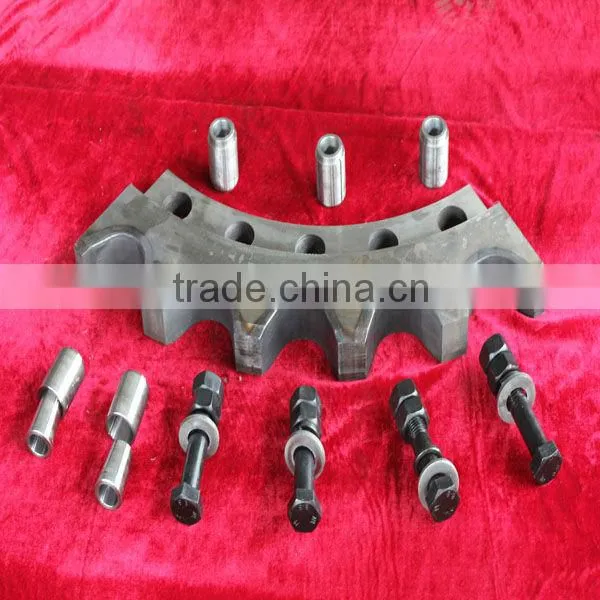

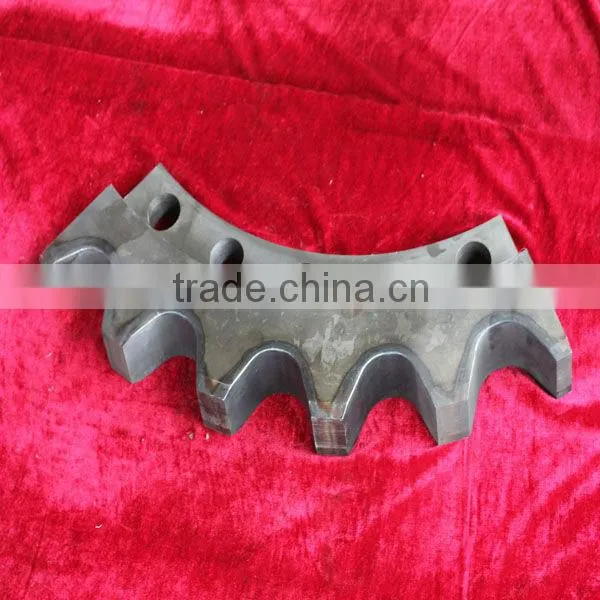

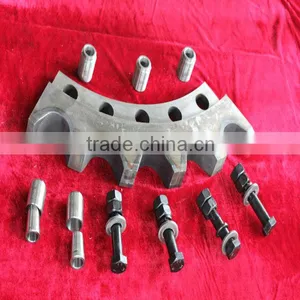

Ring gear we are adopt 42SiMn to material.ring gear work surface must be quenching.the quenching deep 5mm.It hardness reach HRC52-60 that own good wear resistant . high strength and tenacity .ring gear(inside)it has bolt.expansion sleeve.washer.nut.etc.In order to extend the life of the ring gear has taken odd double gear cutting.each tooth operation two teeth only once.secondly.hub and ring gear bolt connection has increased in expansion sleeve design.which it can avoid this hole wear and make entire sprockets scrap.
--production

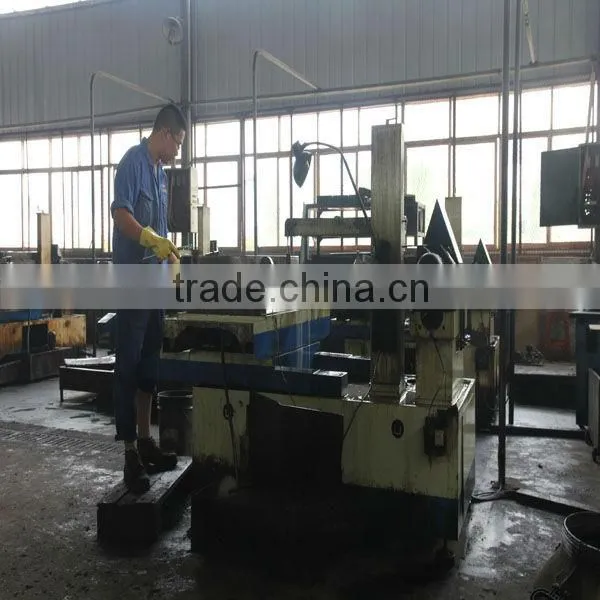

Two ring gear fixed cutting(will not mistakenly) shaving gear

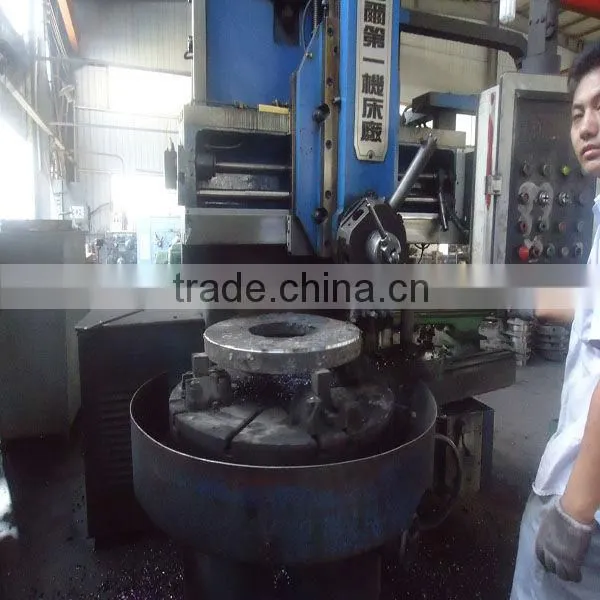

Rough machining

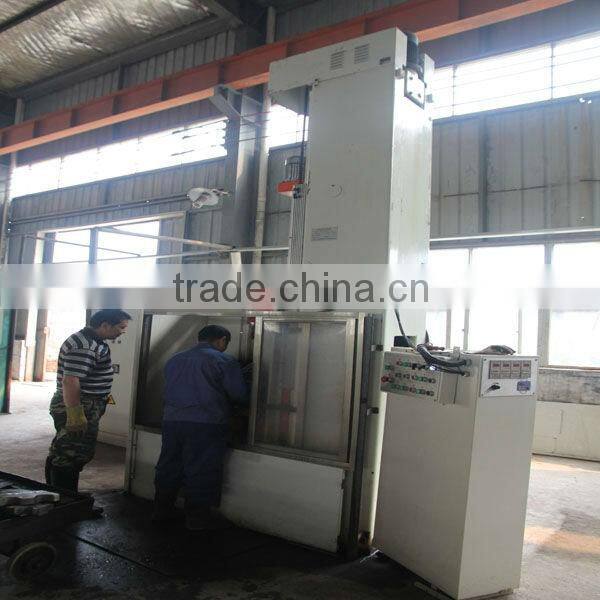

--quenching
--certification
