Roller Conveyor H Beam Blast Machine CleanerTM

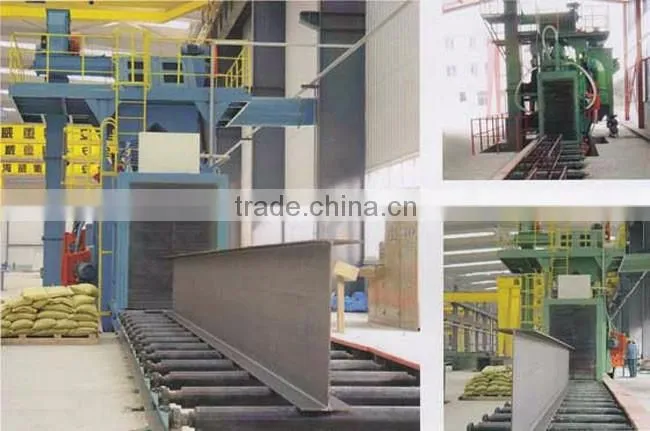

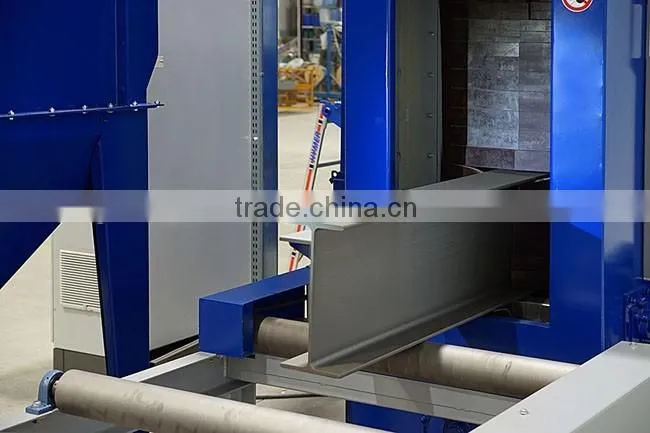

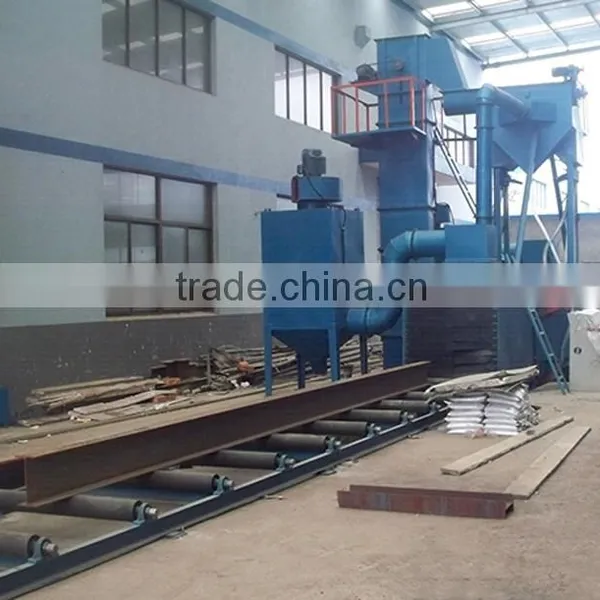

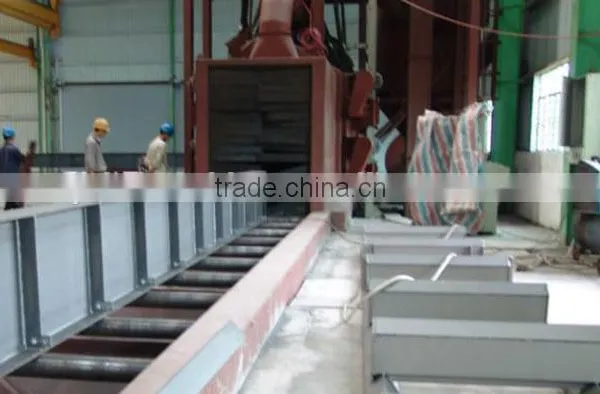

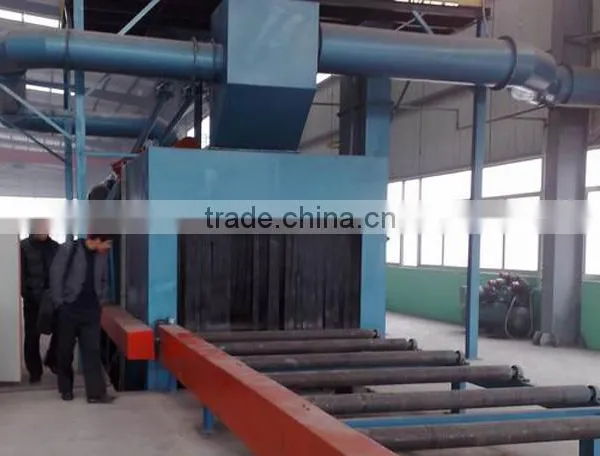

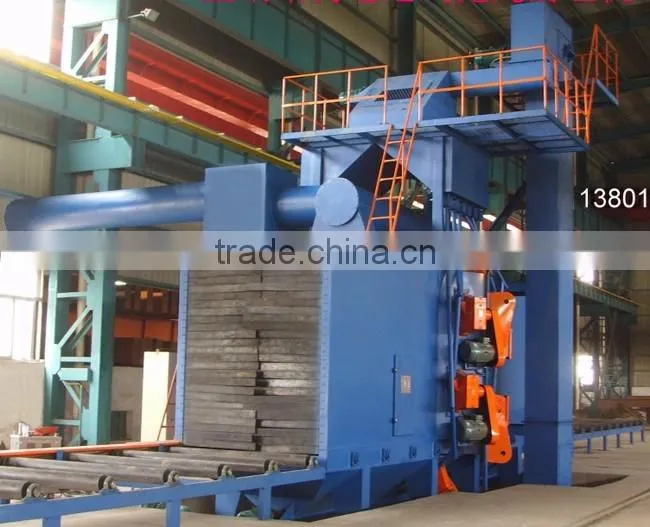

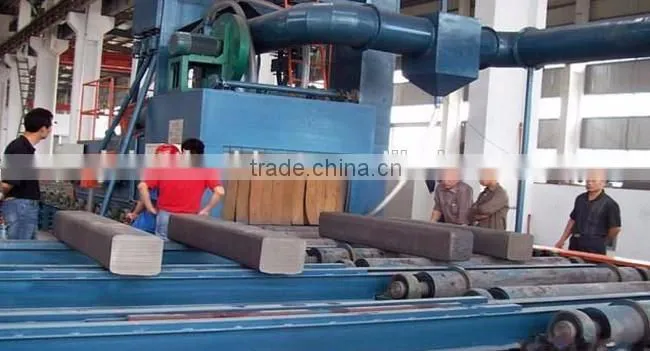

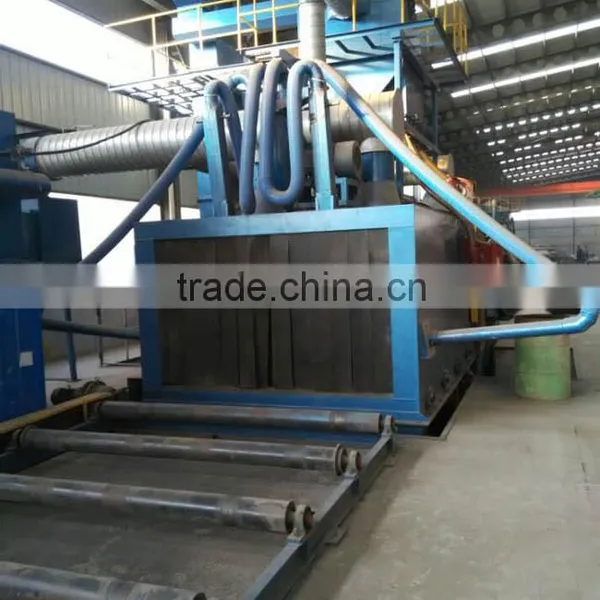

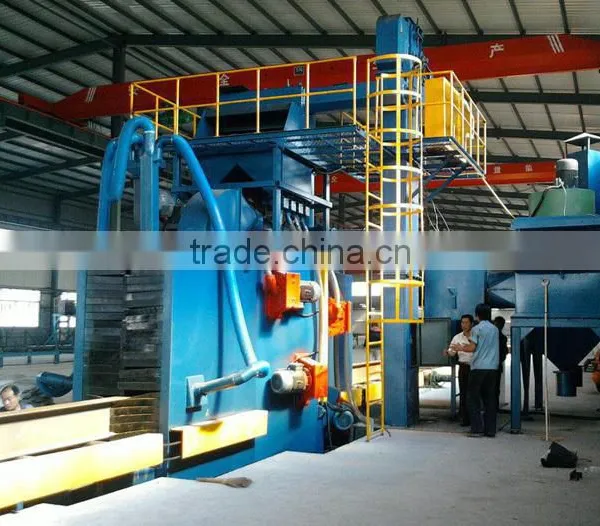

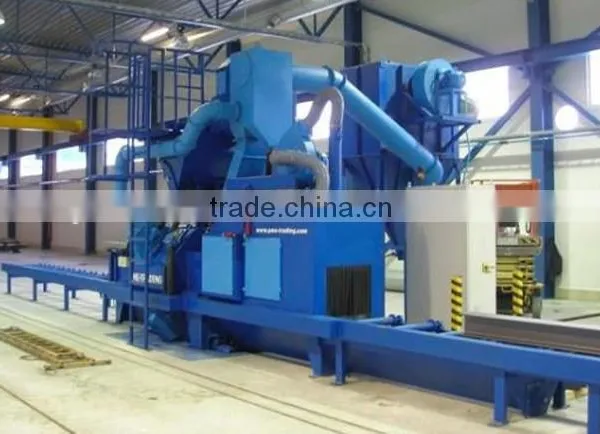

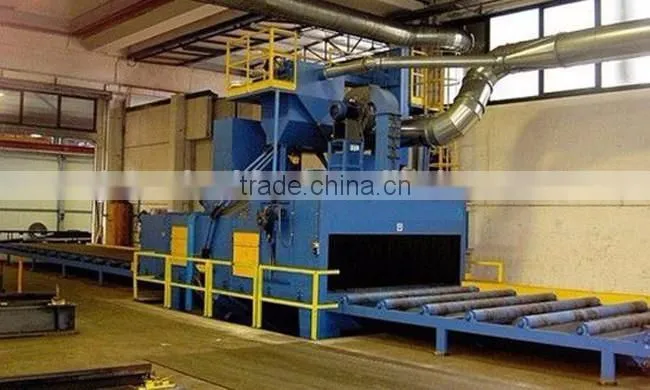

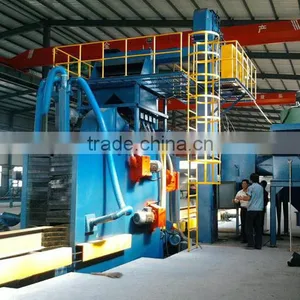

The type Q698 CleanerTM roller conveyor blast machine is mainly designed for the treatment of H beams or profiles in the steel construction or steel preparation industries. The machines can be delivered as standalone units or integrated into an automatic transportation or sawmill/bore line.
The standard Roller Conveyor is our type CleanerTM blast machine, available in throughfeed widths from 600 mm to 5000 mm.
Automatic loading/unloading systems are optional.
Find more detailed information about the offerings from each model below.

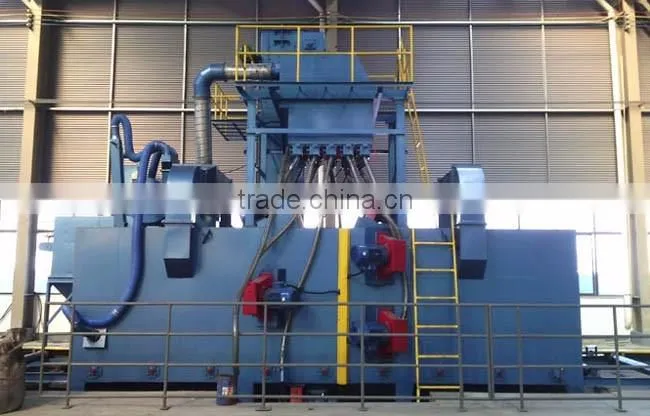

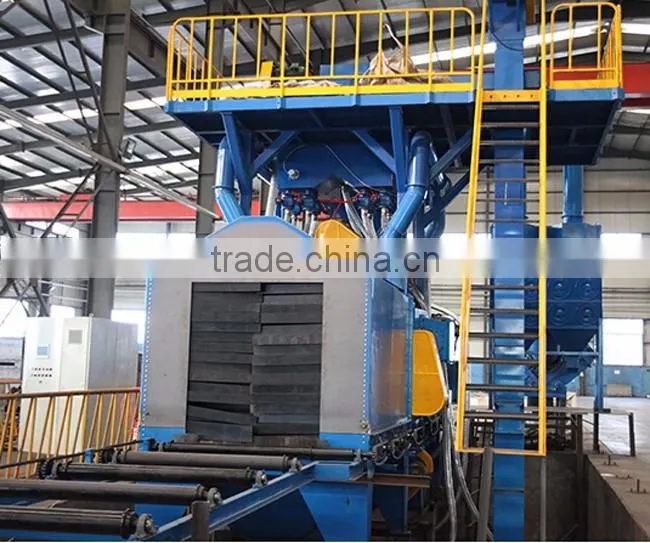

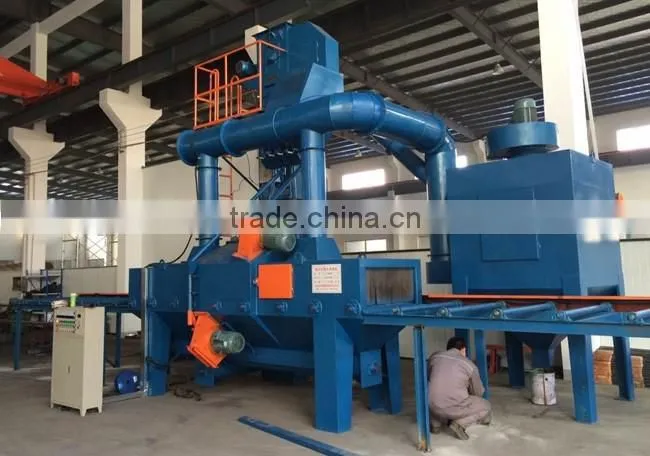

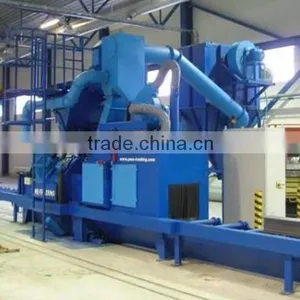

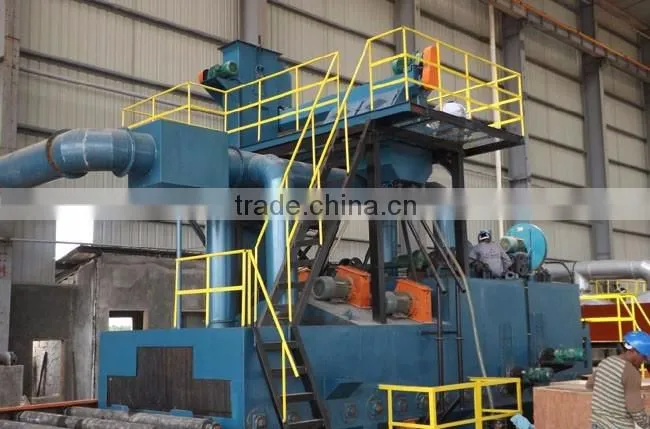

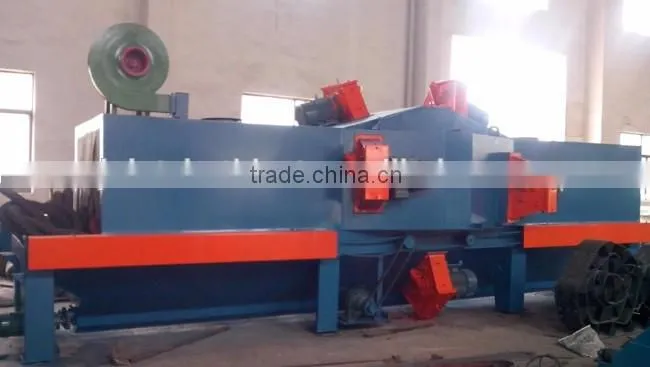

Q698 CleanerTM Roller machines are self contained, robustly built and designed for the economical and efficient surface treatment of H beams and profiles.
• Self contained, fully equipped shot blast machine
• Solid manganese rolls in blast compartment

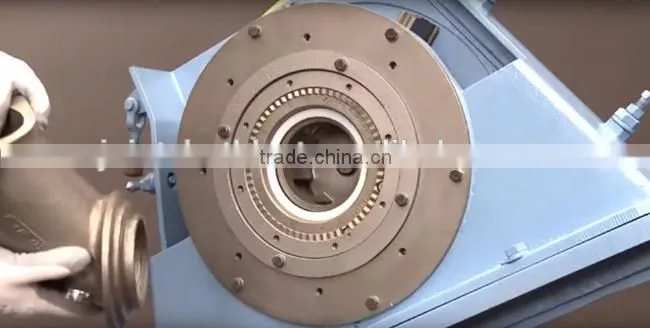

• Tested and proven WildblastTM blast wheels
• Automatic abrasive removal system
• Automatic PLC control
• Installed without the need for further exhaust ducting
• Quick turnaround, easy assembly and commissioning
• High life time by use of S-WindTM air separator.
The systems can be used as single machines or integrated into descaling and anti-corrosion treatment lines.
| Type | Q698 | Q6915 | Q6920 | Q6930 | Q6940 |
| Machine Entrance Width | 600 mm | 1500 mm | 2000 mm | 3000 mm | 5000 mm |
| Machine Entrance Height | 550 mm | 550 mm | 550 mm | 800 mm | 800 mm |
| Wheels*Power | 4*7.5 kw | 4*11 kw | 4*15 kw | 6*15 kw | 8*15 kw |
| Upper Edge Roller Conveyor (variable) | 1000 mm | 1100 mm | 950 mm | 950 mm | 950 mm |
| Work Speed | 1-4 m/min | ||||
Seaworthy plastic bag+plywood box.
20' GP or 40' GP.

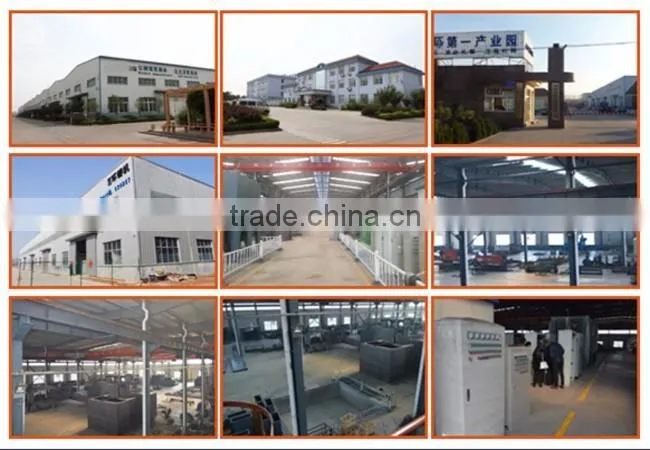

As a leader in surface preparation technology, Joint Group designs, manufactures and sells worldwide a complete range of high quality shot/sand blasting machines for the foundry and forging industries.Located in China, Joint Group shot/sand blasting machines and parts are working in over 60 countries’ workshop.
Leading companies in the foundry, automotive, aerospace, energy, marine, rail, construction and many other industries have used Joint Group’s products and services to improve productivity and profitability for over 50 years.
Joint Group continues to use the experience of having the large installed base in the industry to deliver the best solution for the customer. Joint Group’s approach to solving customers’ operating challenges is unique in the industry. Using insight gained from thousands of different applications across a variety of different industries.
