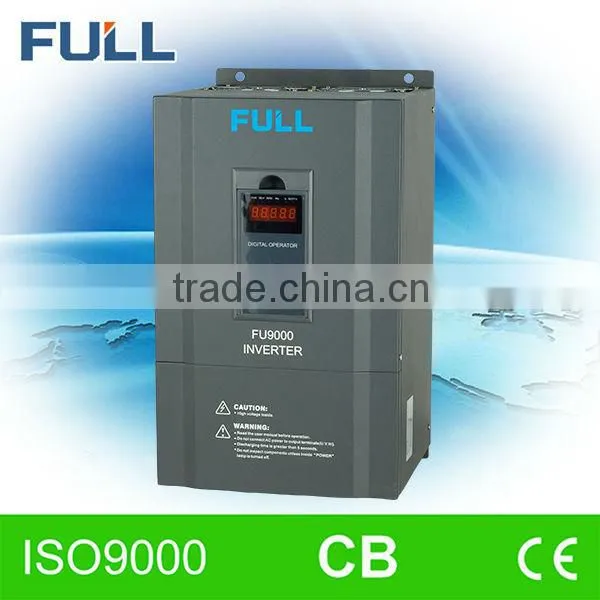

5kw 240v electric motor power inverter converter power supply
Feature:
1)Ten years manufacture and export experience
2)CE,ISO90001 Certificate
3)1.5 years guarantee
Usage :
1)Fan, water pump, compressor
2)Weave and chemical fibre machine
3)Injection machine
4)Petrochemical industry, metallurgy industry,cement machinery,machanism, belt
transport industry
5)Drilling and piling machine
6)Food and carpentry machine
Specification
Item |
FU9000-E series |
|
Control Method |
SPWM |
|
Input Power Supply |
400V Power Supply: 340VAC~460VAC 220V Power Supply: 180VAC~250VAC
|
|
Frequency Control |
Frequency Range |
0.1~400.00Hz |
Frequency Accuracy |
Digital:0.01%(-10~40°C) Analog:0.1%(25±10°C) |
|
Frequency Setting Resolution |
Digital:0.01Hz Analog:1% of Max Operating Frequency |
|
Output Resolution |
0.01Hz |
|
Operator Setting Method |
Press← or ∧ or ∨ to set |
|
Analog Setting Method |
0-5V /0-10V 4-20 mA /0-20mA |
|
Other functions |
Frequency up/lower limit,start frequency,stopping frequency,three skip frequencies can be individually set |
|
General Control |
Acceleration/Deceleration time |
0.1-6500s four selectable combinations of independent acceleration and deceleration setting. |
V/F Curve |
Set V/F curve at will |
|
Torque Control |
Max Torque 10.0% Max output voltage,the starting torque can reach 150% at 1.0Hz |
|
Multi-function input terminals |
6 multifunction input terminals for 8 multi-speed,easy PLC,4 Accel/Decel time,UP/DOWN command,external emergency stop |
|
ITEM |
HCI-A |
|
Communication control |
RS485 |
|
Operating temperature |
-10~40°C |
|
Humidity |
0~95% relative humidity |
|
Vibration |
0.5G or lower |
|
Protection Function |
Instantaneous over current |
Approx.200% 1 minute |
Over load |
Inverter:150% 1 minute |
|
Motor Overload protection |
Electronic thermal overload relay |
|
Over voltage |
23 series:DC bus over 400 Vdc 43 series:DC bus over 800Vdc |
|
Under voltage |
23 series:DC bus voltage drop 200Vdc 43 series:DC bus voltage drop 400Vdc
|
|
Momentary power loss |
0~2 seconds:The inverter can be restarted by speed search. |
|
Heat sink over heat |
Protected by thermistor |
|
|
Multi-function output termianls |
5 multifunction output terminals for the displaying and warning of on-running,zero speed,counting and external fault information. |
|
Other functions |
AVR,Decelerating stop or free-stop,DC brake,auto restart tracking,easy PLC auto energy saving,adjustable carrier Frequency(Max 20KHz) |
Digital operator monitor |
Frequency command,output frequency,speed output current,output voltage,DC bus voltage and rotation direction. |
|
