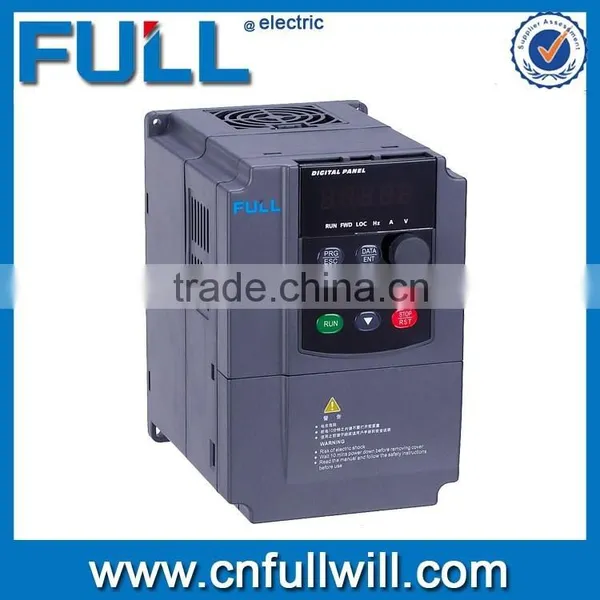

Ac 50hz 60hz 220v 380v 440v Frequency Inverter Converter

Ac 50hz 60hz 220v 380v 440v Frequency Inverter Converter thumbnail-1
Ac 50hz 60hz 220v 380v 440v Frequency Inverter Converter thumbnail-2
Ac 50hz 60hz 220v 380v 440v Frequency Inverter Converter thumbnail-3
Ac 50hz 60hz 220v 380v 440v Frequency Inverter Converter thumbnail-4
Ac 50hz 60hz 220v 380v 440v Frequency Inverter Converter thumbnail-5
Ac 50hz 60hz 220v 380v 440v Frequency Inverter Converter thumbnail-6
Ac 50hz 60hz 220v 380v 440v Frequency Inverter Converter photo-1

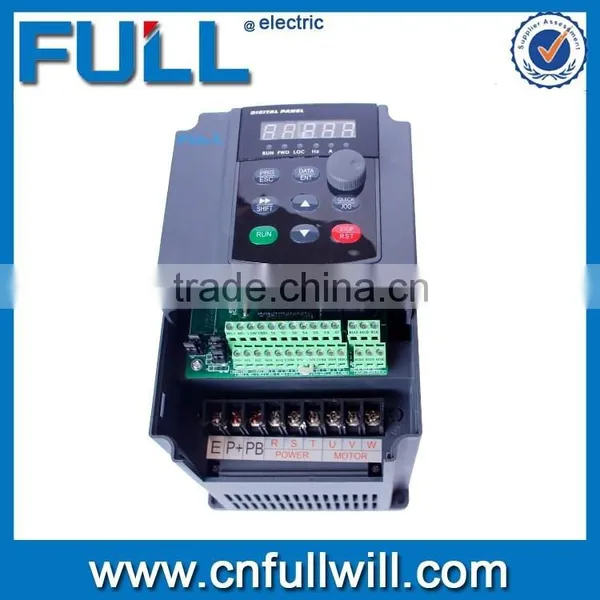

Ac 50hz 60hz 220v 380v 440v Frequency Inverter Converter photo-2
Ac 50hz 60hz 220v 380v 440v Frequency Inverter Converter photo-3

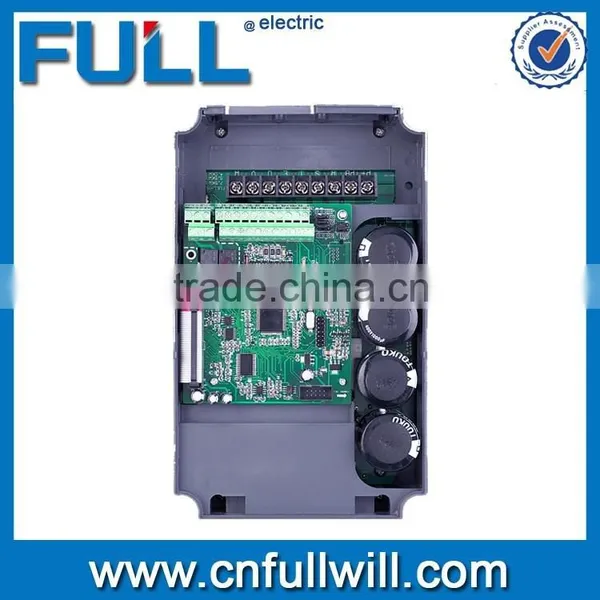

Ac 50hz 60hz 220v 380v 440v Frequency Inverter Converter photo-4

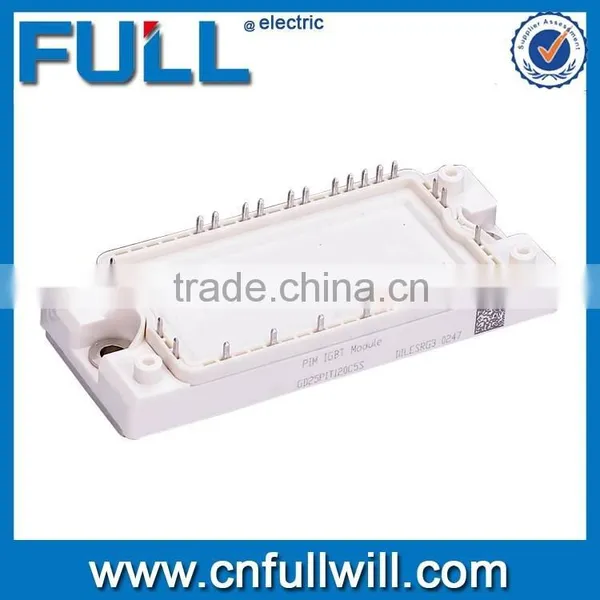

Ac 50hz 60hz 220v 380v 440v Frequency Inverter Converter photo-5

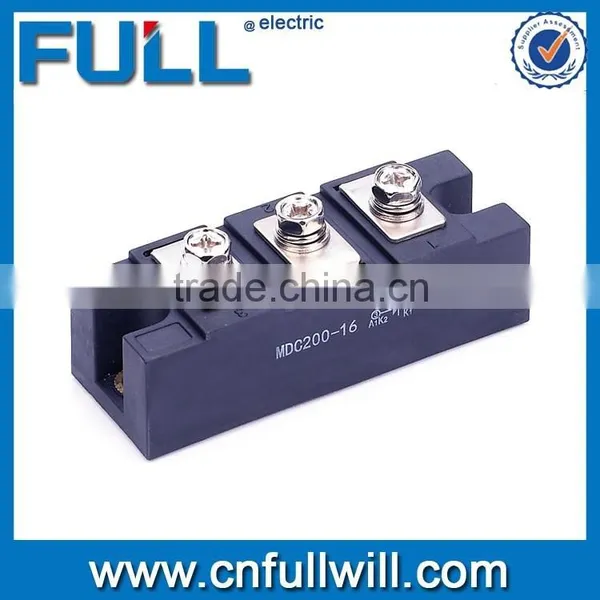

Ac 50hz 60hz 220v 380v 440v Frequency Inverter Converter photo-6
US$ 100 - 6,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FULL
Model Number:
FU9000E
Contact Supplier Request Quote Chat Now
Zhejiang Fullwill Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai / Shenzhen / Guangzhou / Yiwu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name FULL
Model Number FU9000E
Output Power Other, 0.75KW-315KW
Output Type Triple
Size 170*125*162--600*800*2000
Weight 2.16KGS--160KGS
Input Voltage 380V
Output Voltage 380V
Type Other, AC
Output Frequency 0-400HZ
Output Current 2.7A-605A

Ac 50hz 60hz 220v 380v 440v frequency inverter converter  Ac 50hz 60hz 220v 380v 440v frequency inverter converterAc 50hz 60hz 220v 380v 440v frequency inverter converterAc 50hz 60hz 220v 380v 440v frequency inverter converterAc 50hz 60hz 220v 380v 440v frequency inverter converter



why choose us

    1.More than 15 years – we are more than 15 years professional manufacture of frequency inverter

    2.More than 10 years – We have more than10 years’ experience in foreign trade service

    3.More than 50 countries- we exported our products to more than 50 countries all over the world.

    4.Professional work team- we can accept OEM ODM

    5.Powerful production capacity - we can offer a large quality products each month.

    6.Certification –we have passed ISO90001,CCC,CE,CB

   7.we offer 24 hours service



Product feature:

1.Range of input voltage:180V~250V/340V~460V. It can drive the rated voltage

   220/380V three phase AC induction motor

 2.Output of low speed nominal torque, secure operation

 3.Over-load/over-current/over-voltage/over-heating/over-torque/short-circuit protection

    function

 4.Automatic current limited, voltage stall prevention

 5.Control mode:vector control,V/f control,constant torque,sensorless vector control

 6.Start-up torque:0.5HZ/150%(SVC)

 7.Automatic energy-saving function

 8.The carrier of frequency is adjustable continuously and it's up to 15KHz

 9.Torque output with low speed,operate stable

10.10rogrammable input and output terminal for controll

11.Standard communication interface RS485,PID and simple PLC internally stalled

12.Built-in step(8step)speed control: PID control, travers Control

13.PID adjuster(respectively setting the proportion/ integral calculus/ differential

    coefficient of feedback signal)

14.AVR: automatically keep the output voltage stable when input voltage is fluctuating

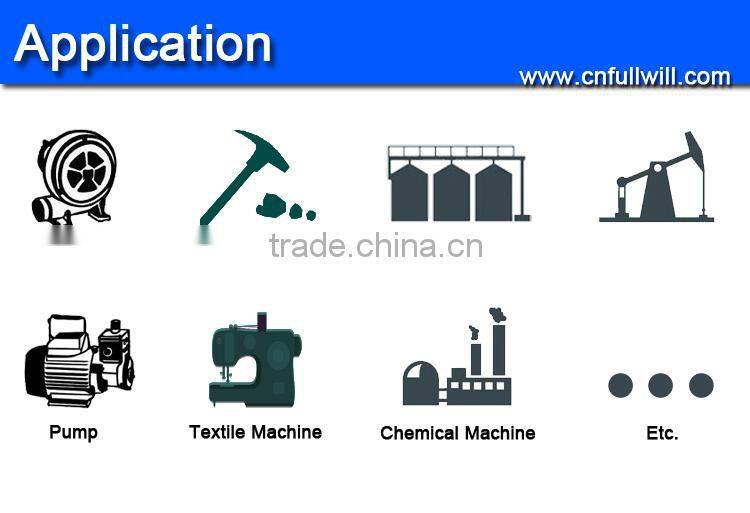

Application

  1. Sawing Machine          2.Textile Machine
  2. Lifting Equipment        4. Fans and Pumps
  3. Printing Equipment      6. Compressor
  4. Injection Machine        7. Machine Tool Equipment

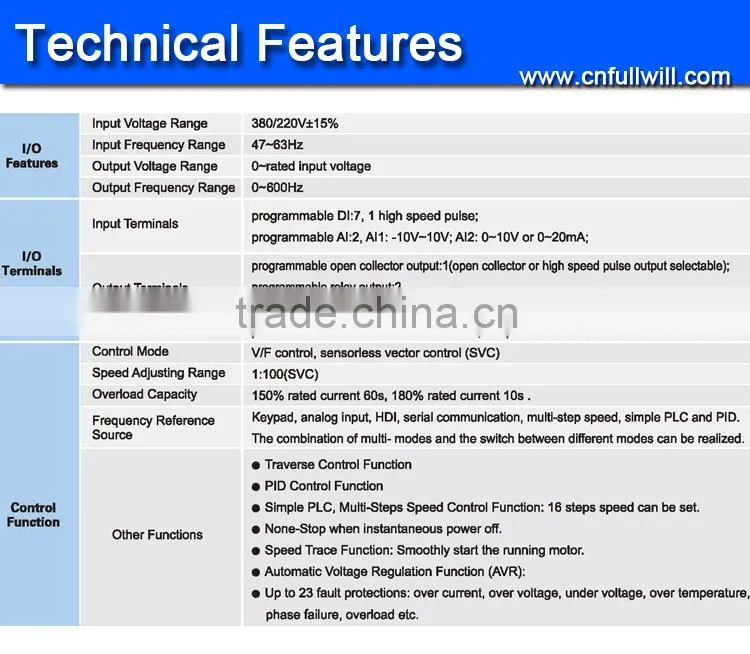

 technical specfication:



Item

FU9000-E/L

Control Method

SPWM

Input Power Supply

380V Power Supply:340~460V ;220V Power Supply:180~250V

Basic Function

Speed tracing, PID control, auto speed compensation, AVR, torque control, overlay control, time control, multi-speed choice, etc

5 Digital Display,status idicator

Display frequency,speed,current,voltage,counter,temperature,forward/reverse ,fault…

Communication Control

RS485

Operating Temperature

–10~40°C

Humidity

0-95% relative humidity

Vibration

0.5G or less

Frequency Control

Range

0.1~400.00HZ

Accuracy

Digital:0.01%(-10~40°C);Analog:0.1%(25±10°C)

Frequency Setting Resolution

Digital:0.01Hz; Analog:1‰ of Max Operating Frequency

Output Resolution

0.01HZ

Operator Setting

Press← or ∧ or∨ to set

Analog Setting

0~5V,0~10V, 4~20mA ,0~20mA

Others

Frequency lower limit,start frequency,stop frequency,three skip frequency can be individually set

General Controll

Acceleration / deceleration time

0.1-6500s four selectable combinations of independent acceleration and deceleration setting

V/F Curve

Set V/F curve at will

Torque Control

Max Torque 10.0% Max output voltage,the starting torque can reach 150% at 1.0Hz

Multi-function input terminal

6 multi-function input terminal for 8 multi-speed,easy PLC,4 Accel/Decel time,UP/DOWN command,external emergency stop

Multi-function output terminal

5 multi-function output terminal for display and warm of on running,zero speed,counter and external fault information

Others

AVR,Decelerating stop or free-stop,DC brake,auto restart tracking,easy PLC auto energy saving,adjustable carrier Frequency(Max 20KHz)

Protection Function

Over Load

Motor dirver of electronic circuit : (contstant torque 150% at 1 minute,fans 120% at 1 minute)

Fuse

Fuse off,motor stop

Under voltage

220V:DCvoltage

Over voltage

220V:DCvoltage>400V; 380V:DC voltage>800V

Restart for instantaneous stop

Restart with freququency track after instantaneous stop

Stall prevention

Stall prevention for acceleration and deceleration

Short circuit of output terminal

protection for electronic circuit

Others

Heatsink overheat protection,reverse limit,fault reset,parameter lock PID…




Welcome To Wenzhou Fullwill Electric Co., Ltd

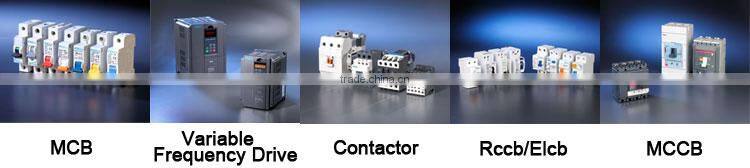

Circuit Breaker,



Frequency inverter,



Ac contactor

&

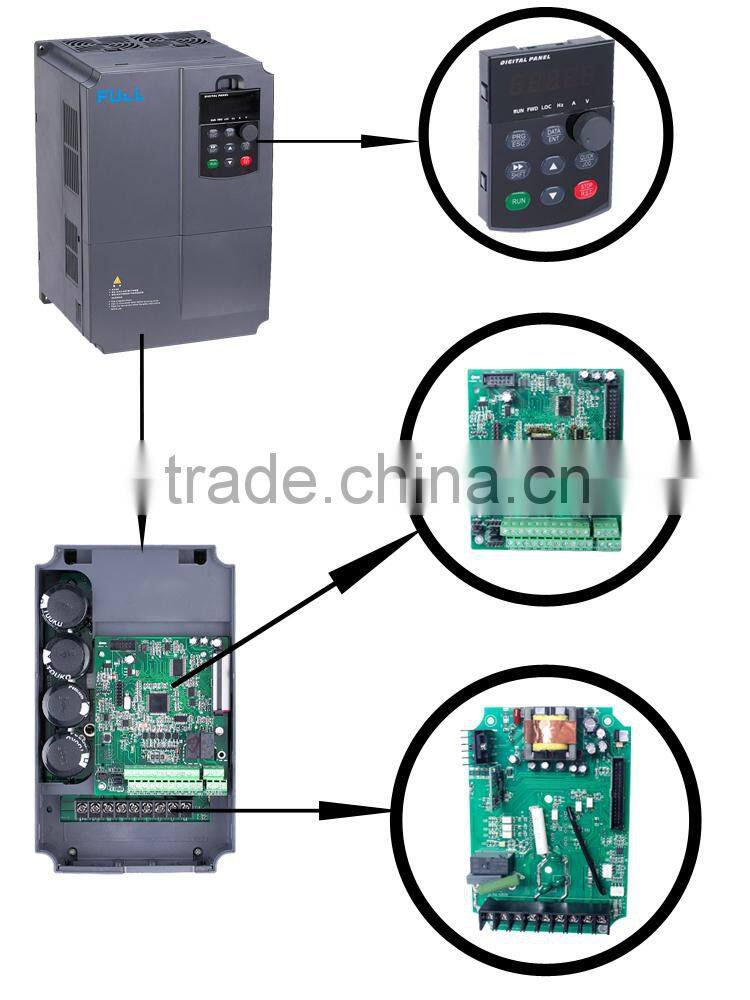

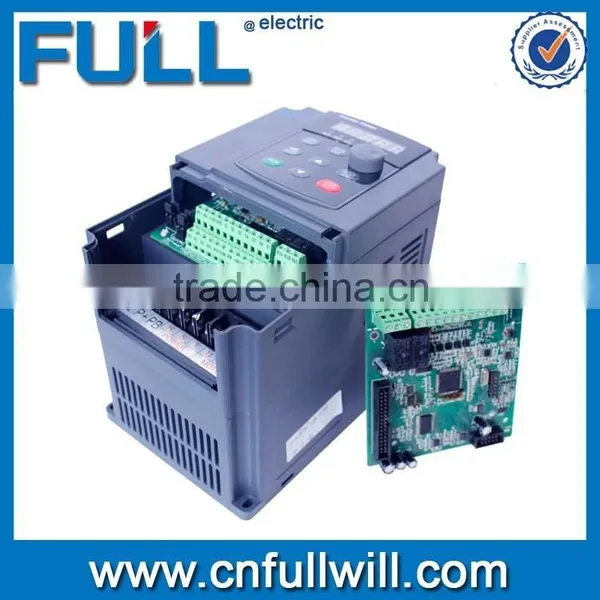

 Internal Structure

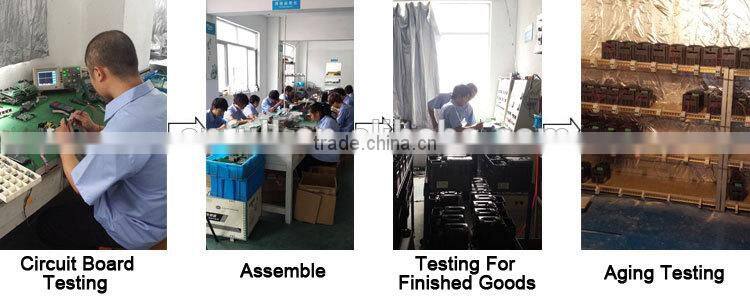

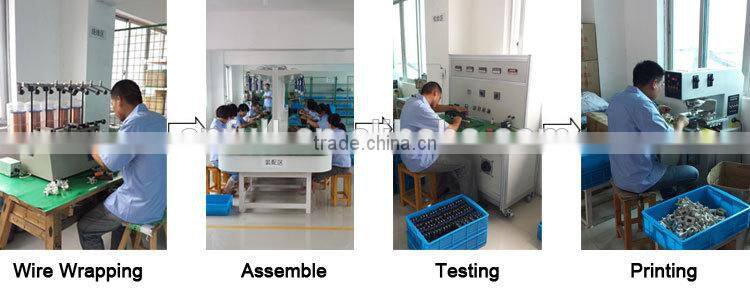

Our Professional Factory = High Quality frequency inverter

Ac 50hz 60hz 220v 380v 440v frequency inverter converterAc 50hz 60hz 220v 380v 440v frequency inverter converter

Our certificate



Shipping Terms &Conditions

Contact
