2015 China Hot Selling 2 Years Warranty General Type 0.75KW ac Frequency Inverter

2015 China Hot Selling 2 Years Warranty General Type 0.75KW ac Frequency Inverter thumbnail-1
2015 China Hot Selling 2 Years Warranty General Type 0.75KW ac Frequency Inverter thumbnail-2
2015 China Hot Selling 2 Years Warranty General Type 0.75KW ac Frequency Inverter thumbnail-3
2015 China Hot Selling 2 Years Warranty General Type 0.75KW ac Frequency Inverter thumbnail-4
2015 China Hot Selling 2 Years Warranty General Type 0.75KW ac Frequency Inverter thumbnail-5
2015 China Hot Selling 2 Years Warranty General Type 0.75KW ac Frequency Inverter thumbnail-6
2015 China Hot Selling 2 Years Warranty General Type 0.75KW ac Frequency Inverter photo-1
2015 China Hot Selling 2 Years Warranty General Type 0.75KW ac Frequency Inverter photo-2
2015 China Hot Selling 2 Years Warranty General Type 0.75KW ac Frequency Inverter photo-3
2015 China Hot Selling 2 Years Warranty General Type 0.75KW ac Frequency Inverter photo-4
2015 China Hot Selling 2 Years Warranty General Type 0.75KW ac Frequency Inverter photo-5
2015 China Hot Selling 2 Years Warranty General Type 0.75KW ac Frequency Inverter photo-6
US$ 105 - 8,100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FULL
Model Number:
FU9000A
Contact Supplier Request Quote Chat Now
Zhejiang Fullwill Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo / Shanghai / Guangzhou / Shenzhen / Yiwu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name FULL
Model Number FU9000A
Output Power Other, 0.75KW
Output Type Triple
Size 170*125*162mm
Weight 2.16kgs
Input Voltage 380V
Output Voltage 380V / 220V
Type Other, AC
Output Frequency 0-400Hz
Output Current 2.7-605A

  General type 0.75KW ac frequency Inverter



1.Application



This type is economic,high-efficiency,stable,adopting special 32-bit micro-

processor, and it is controlled by electric motor with high-precision frequency outputing ,

wide range of voltage fluctuation,low exotherm of inner element,prolonging the life

of operation of product,owning complete protection and fault diagnosis system

and the performance index surpassing the same products in the world.However,the price

 is only 50% of them.



2.Usage



FU9000 series is designed according to the complicated driving technics to satisfy so

many manufacturing fields:



1)Fan, water pump, compressor

2)Weave and chemical fibre machine

3)Injection machine

4)Petrochemical industry, metallurgy industry,cement machinery,machanism, belt

   transport industry

5)Drilling and piling machine

6)Food and carpentry machine





2015 China hot selling 2 years warranty General type 0.75KW ac frequency Inverter2015 China hot selling 2 years warranty General type 0.75KW ac frequency Inverter





2015 China hot selling 2 years warranty General type 0.75KW ac frequency Inverter

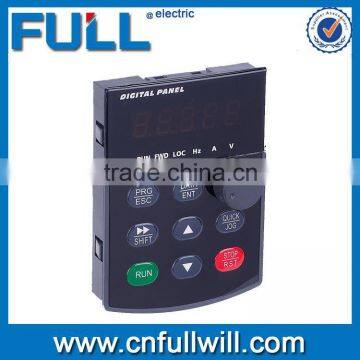

  1. Display of LED digital,Chinese/English LCD etc
  2. Open loop vector,closed loop vector,V/F control
  3. Keyboard locator(0-5V) ,external analog (0-10V/0-20mA) ,external signal superposition….
  4. 16 steps speed ,forward and reverse,hopping frequency,acceleration and deceleration,counter,jog acceleration and deceleration,wake of PID sleep,PG …..
  5. Built-in 485 port independently
  6. Frequency set: keyboard ,external analog,pulse frequency,PC serial communication …
  7. Precision of speed control: PG feedback vector control ±0.05% rated frequency,No PG feedback vector control ±0.5% rated. frequency
  8. Scope of speed control for PG feedback vector 1:1000;No PG feedback vector 1:100
  9. With PG feedback vector control,torque response
  10. PG feedback vector control:200% rated output torque/0.05HZ;No PG feedback vector control:150% rated output torque/0.5HZ
  11. Precision of torque control:±5% rated output torque
  12. Over-load protection,over-voltage stall,overload forecast,automatic current limit,automatic fault reset,under-voltage protection,over-heating protection,phase- lack protection

Technical specificationg:





Item

Specification

Output

Rated output voltage

3 phases380V(Maximum output voltage is same with input voltage)

Continuous current

100% rated output current

overload capacity

150% rated output current at 2 minutes,180% rated output current at 10s

output frequency

0Hz~400Hz

Power

Rated output voltage

3 phases380V±20%,50~60Hz±5%

Control performance

Modulation mode

Optimization space voltage vector PWM

Control mode

PG feedback vector control;No PG feedback vector control;V/F control

Run command given

Keyboard;external terminal;PC serial communication

Speed setting

Keyboard ,analog,pulse frequency,PC

serial communication …

Speed setting resolution

Digital: 0.01HZ; Analog: 1/1000 of maximum frequency

Speed setting precision

Digital:±0.01%of maximum frequency(-10°C~ +40°C )

Analog:±0.05% of maximum frequency(25°C±10°C )

Speed control precision

PG feedback vector control:±0.05% rated speed;(25°C±10°C )

No PG feedback vector control:±0.5% rated speed;(25°C±10°C )

Speed control range

PG feedback vector control 1:1000

No PG feedback vector control 1:100

Torque control response

PG feedback vector control response<150mS

No PG feedback vector control response<200mS

Start torque

PG feedback vector control:200% rated output torque/0.05HZ

No PG feedback vector control:150% rated output torque/0.5HZ

Braking torque

non-energy consumption braking:within 22KW>20% rated

output torque,above 30KW>15% rated output torque,energy

consumption braking >150% rated output torque

Torque control precision

±0.5% rated output torque

Signal of input output control

Reference voltage output

1way,+10V,5mA

Control output of voltage source

24V,100mA;also can be provided by PLC terminals

from external

Power input for external users

1 way,input terminal connect can use external power

supply (12-24 V)

Analog input

1 way,0~10V/0-20mA DC,10 bit

1 way,0~10V DC,10 bit

Analog output

1 way,0~10V,output programmable,multi-output selectable

1 way,0~10V/0~20mA,output programmable,multi-output selectable

programmable joints input

7 way programmable,forward/reversal,forward jog,

multi-speed,multi-step acceleration and deceleration

time,free parking,current and voltage switched and 27 kinds

of function selectable

Pulse signal input

1 way,0~50K Hz

PG signal input

A+,A-,B+,B- differential input;A-,A-,B- input

of open -collector encocoder

FAM frequency signal output

1 way,signal of frequency table ( output frequency signal

multiples frequency inverter output frequency signal),0~50HZ

Open collector output

2 way, 24 kinds of running status can be chosen,max

output current 50mA

Programmable relay output

2 way, 24 kinds of running status can be chosen; Contacts

capacity: 250 VAC/3A or 30 V DC/1 A

Serial communication port

RS-485 Interface

Standard function

Current limiting,torque boost,rotate speed tracking,DC

power braking,restart for power off,slip compensation,

fault reset automaticlly,frequency up/lower limit,bias

frequency,start frequency,hopping frequency,gain

frequency,adjustment of carrier frequency adjustment,

acceleration/deceleration mode can be adjusted,voltmeter

output,ammeter output,multi-steps speed,program run,

swing frequency run,PI closed loop running,proportion

linked,remote control,forward/reverse dead zone

Protection function

Over-voltage, under-voltage,over-current,current

limiting, over-load,over-heat, electronic thermal-

overload relays, over-voltage stall,data protection etc

Display

Four digital display(LED)

16 kinds of status parameter like frequency set,output

frequency,output voltage,output current,motor RPM,

output torque,switch terminals etc and 31 kinds of fault

code etc

Chinese /English LCD

Control mode,current programmin or monitor parameter

name,alarm content,keyboard guide etc

Indicator lamp ( LED )

Parameter unit,RUN/STOP status etc







2015 China hot selling 2 years warranty General type 0.75KW ac frequency Inverter2015 China hot selling 2 years warranty General type 0.75KW ac frequency Inverter2015 China hot selling 2 years warranty General type 0.75KW ac frequency Inverter2015 China hot selling 2 years warranty General type 0.75KW ac frequency Inverter



 2015 China hot selling 2 years warranty General type 0.75KW ac frequency Inverter

2015 China hot selling 2 years warranty General type 0.75KW ac frequency Inverter2015 China hot selling 2 years warranty General type 0.75KW ac frequency Inverter2015 China hot selling 2 years warranty General type 0.75KW ac frequency Inverter2015 China hot selling 2 years warranty General type 0.75KW ac frequency Inverter

QUESTION AND ANSWER:

Q 1. what's the payment term?

A. We accept T/T, L/C, D/P, D/A,West Union, PAYPAL,Money Gram,Cash.

Q 2. What's the delivery time ?

A. We deliver 20'GP qty of this Frequency inverter within 20 days.

   We deliver 40'HQ qty of this Frequency inverter within 40 days.



Q 3. What is the standard of package?

A. 0.75-15kw Soft Starter: export standard paper package.

   15-315kw Soft Starter: export standard wooden package.



Q 4. what is the Warranty ?

A. We offer 2 years warranty for this Frequency inverter.



Q 5. Do you accept OEM business?

A. We accept OEM/ODM for this Frequency inverter.



Q 6.What is your production capacity?

A. We can produce 3*40HQ containers each month.



Q 7.Which market do you already sell?

A. We already cooperate with Europe, South America, Asia, Middle east, Africa etc.



Q8. what kind of certificate you have ?

A. We have CE, CB,CCC certificate.

2015 China hot selling 2 years warranty General type 0.75KW ac frequency Inverter



1.More than 15 years – We have more than 15 years professional manufacture of this Frequency inverter.



2.More than 10 years – We have more than 10 years’ experience in foreign trade service.


3.More than 50 countries – We exported Frequency inverter to more than 50 countries all over the world.


4.Professional work team – We can accept OEM ODM.


5.Powerful production capacity – We can offer 3*40HQ each month.


6.Certification – We have passed ISO9001,CE,CB,CCC.


7.We offer 24 hours service.
