Garage Door Opener dc Motor - Can Send by Postal Way

   garage door opener dc motor  - can send by postal way

Xuchang Superlift is the first enterprise manufacture garage door and opener in China, have 18 years experience.

Passed CE, RoHS, ISO9001:2008, ISO14001, OHSAS18000. We are the most professional manufacturer in China. Exported to more than 40 countries.

Special functions of s66 sectional garage door opener:

1.Lock the door when power is off:this is our patent technology which can lock the opening door when power is off and the lock need not to be opened manually when power comes again. When the door moves to the closing position, the lock can open automatically and all the operationcan get normal.

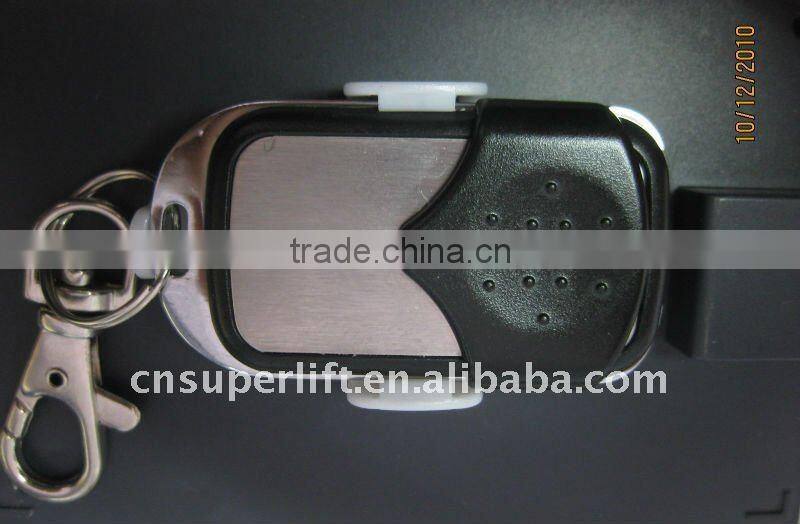

2. Rolling code remote control:adopt professional rolling decoding circuit, no same codes, prevent stealing and high security.

3.Movement memory and soft opening and closing Controlled by microcomputer and needn'tmovement switch. The soft opening and closing can decrease the impact to the door and prolong its service life .

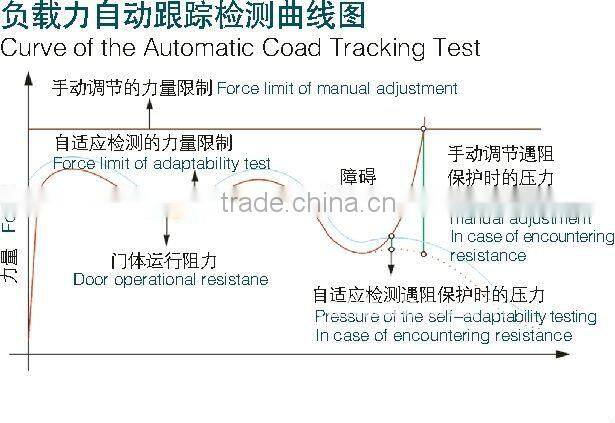

4.intelligent check infrared photoswitch, the position of opening and closing andmovement resistance automatically track and check the resistance changes of the whole movement to make sure the high protection sensitivity  and provide better security.adapt the resistance changes automatically for a long time and needn't manual adjustment and maintenance.

5. S66 can close the door automatically after a while when the door is at the opening position. The time can be set from 1 minute to 9 minutes and also this function can be forbidden to act.

6. Fault self-checking: S66 willself-check when it is under operating, if there is fault the code will be showed on the LED. It is convenient for adjusting and maintaining.

7. Easy operation: owners can use the LBD and nixie tube to adjust the parameter easily. By press the remotesbutton two times Self-checking could be finished and S66 will be available atonce after that.

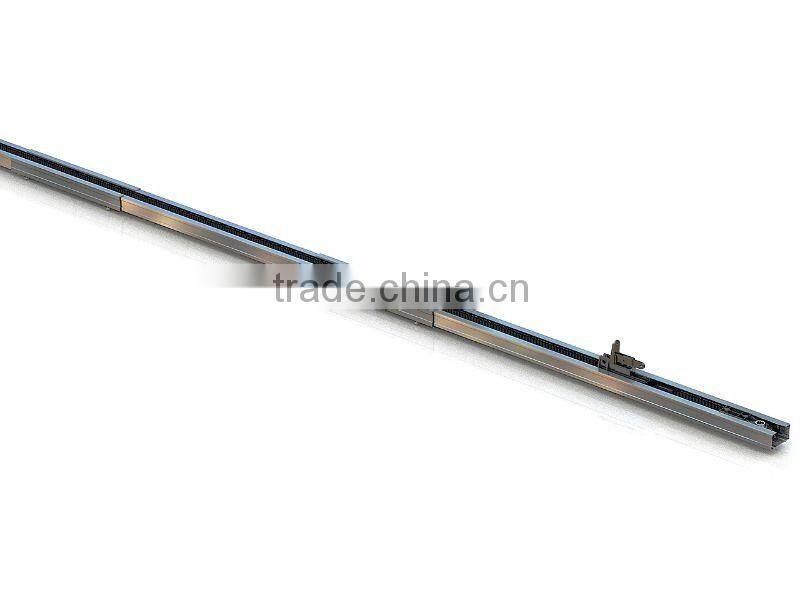

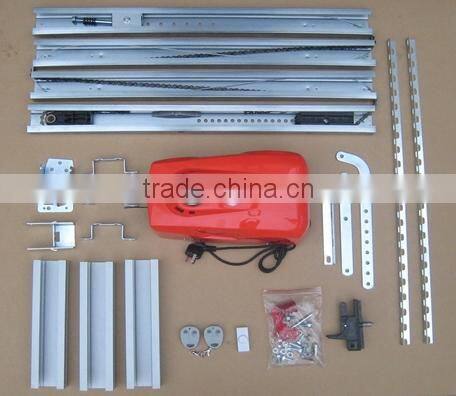

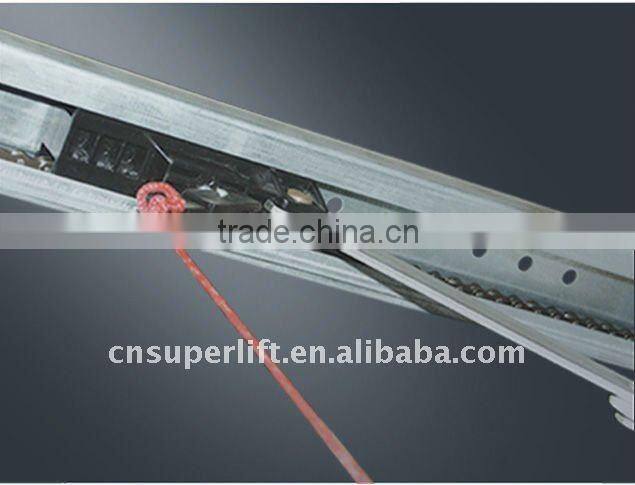

8.Rail:There are two  types of rail ( Integrated/sectional) for different customers. sectional rail can be packed with motor in one package to save space and freight. it is the special design for the supermarket sale and DIY customers.

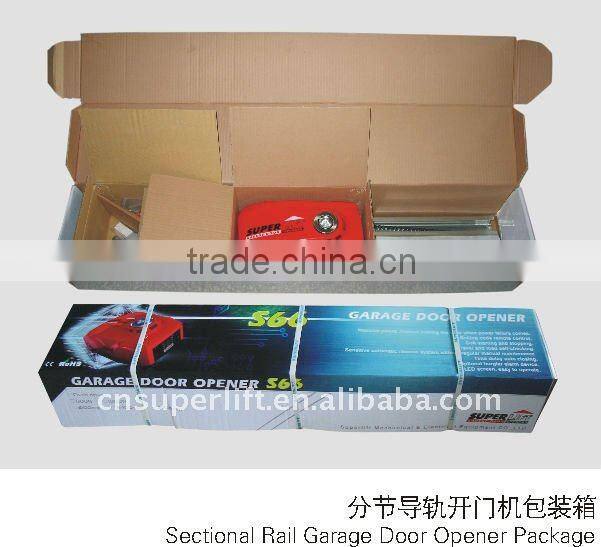

 9.Package for sectional rail opener

10.Main technical specification

Rated voltage:AC 220V±10%50Hz

Max.input power 250W/350W

Max lifting force: 800 N / 1000 N

Starting/closeing speed: 160mm/s

Lamp:12V  1×10W

Motor: DC 24 V

Remote control distance: ≥30m

8 PCS Remote controls can be equipped with S68 (2 PCS arestandard 6 PCS are optional)

Remote controlfrequency: 433.92 MHz

Circumstance temperature:-25 ^oC  +55^oC

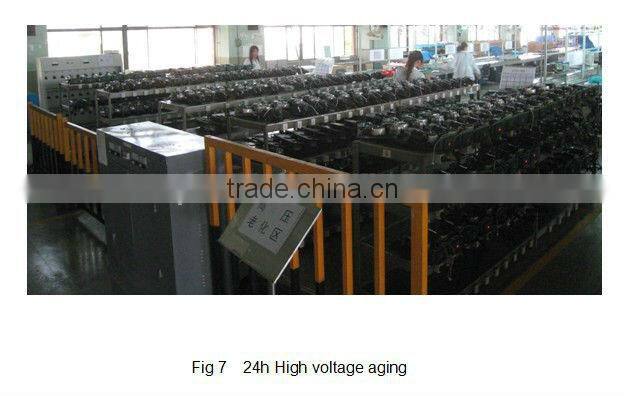

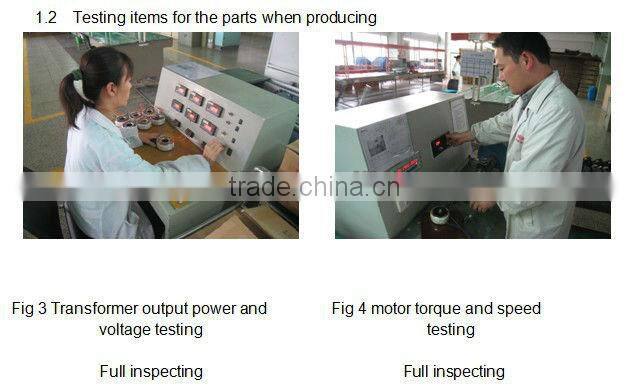

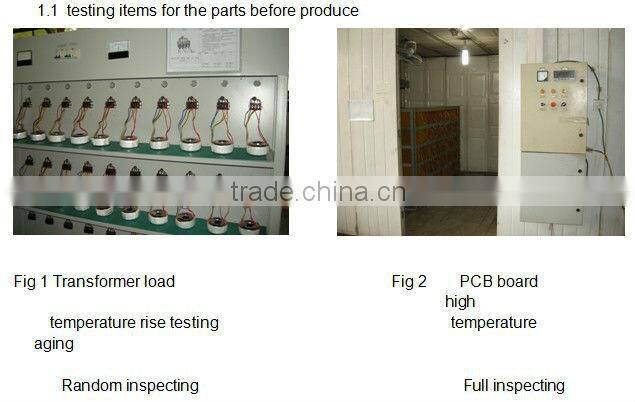

11. strict quality control procedure
