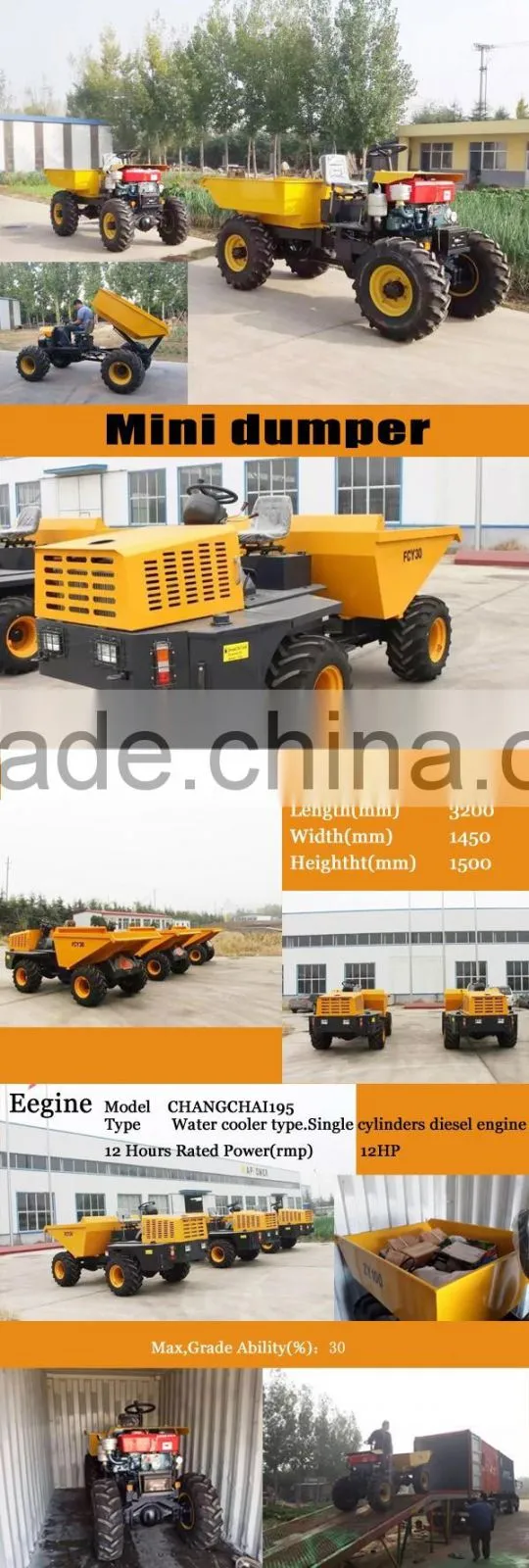

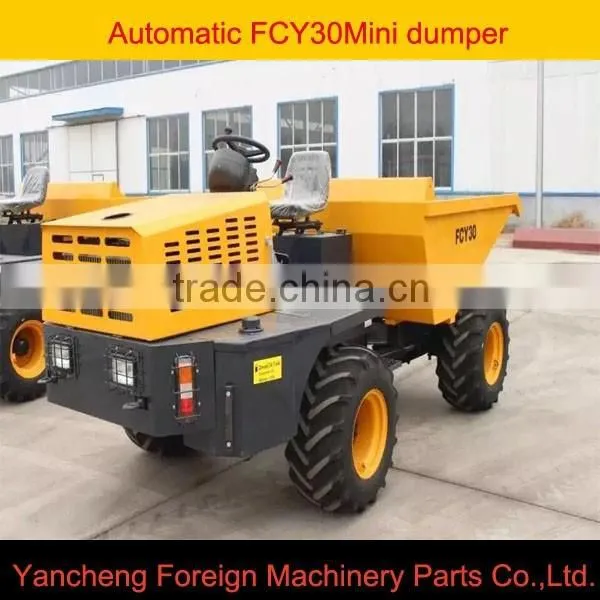

front tip dumper 4WD/ FCY30 mini dumper/wheel dumper
| Mode | FCY30mini dumper | |
| SD-30 | ||
| drive Model | 4WD | |
| Longth(mm) | 3900 | |
| Width(mm) | 1850 | |
| Height(mm) | 1820 WITHOUT CABIN | |
| 2700 WITH CAIBN | ||
| Wheel Base | Wheel Base(mm) | 2000 |
| Wheel Tread | Front Wheel(mm) | 1470 |
| Rear Wheel(mm) | 1470 | |
| Min Ground Clearance(mm) | ≥248 | |
| Dry Mass(Kg) | 2500 | |
| Engine | Model | NB485 or F3L-912 |
| Type | Xinchang 485 Water-4 | |
| Deutz F3L912 Ait-3 | ||
| 12 Hours Rated Power(rpm) | 30KW/2600(485) | |
| 36KW/2300(912) | ||
| Tyres | Front Wheel | 12-16.5 |
| Rear Wheel | 12-16.5 | |
| Cluth | Constant-contact,single-disc,dry cluth | |
| Brake | Drum type with hydraulic control | |
| Steering Gear | Hydraulic follow-up Service | |
| Gear Box With | Four forward speeds and one reversad speed | |
| Ground Speed(Km/H) | 1st Gear | 4.26 |
| 2nd Gear | 8.8 | |
| 3nd Gear | 16.14 | |
| 4th Gear | 27.2 | |
| Reverse | 3.48 | |
| Skip Capacity(m3) | 1.5 | |
| Mininmum Turrving Rodivs(m) | 4.225 | |
| Tipping System | Hydraulic Tipping hopper | |
| Max,Grade Ability(%) | 30 | |
| Electric Staring | Yes | |
| Container Loading | ||
| 20GP container can be loaded with | 1Unit | |
| 40GP container can be loaded with | 3Units | |
Product advantage:
1.Use four-wheel drive, hydraulic hinge, hydraulic
dump, low pressure section wide tires, can swing
driving axle, double line pressure rotating,hermetic
cabin, a driving force, good cross-country performance,
turning radius is small and flexible manipulation of light,
2. Safe and comfortable driving, the characteristics of beautiful
shape, is a leading domestic.
3.The products are widely used in construction, road construction,
mining, water conservancy department of concrete, such as
conditions in bulk materials such as medium-short distance
transport, and excavators, loaders, mixing station systems
can play a more flexible, the advantage of high work efficiency.

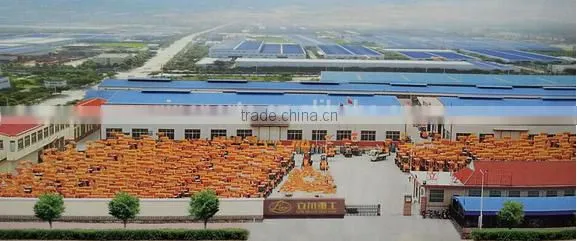

Company Information:
Yancheng Foreign Machinery Parts Co., Ltd. Mainly produces LIER - G series, D series, K series, C series,
such as four series, hundreds of differentiated products of wheel loader, capable of producing ten thousand
sets of production capacity and in the industry took the lead through the ISO9001:2000 international quality
management system certification and the national construction machinery quality supervision and inspection
center for review, made of special equipment manufacturing license and received including cross-country soft
double car ", a number of utility model patent. always adhere to the "solidarity, forge ahead, realistic and innovative
"spirit of enterprise, strict quality control, strive for each product into a boutique. and continuously forge ahead, to
"create the first brand of small loader" as the goal. Excellent product performance, good after-sales service,
reasonable product price for the company to win the broad market, Products are exported to Russia, Brazil,
Argentina, Australia, Iran, Singapore, New Zealand, and many other countries.
