Specifications
Using special computer chip, according to local latitude and longitude, seasonal change automatically determine switching time.

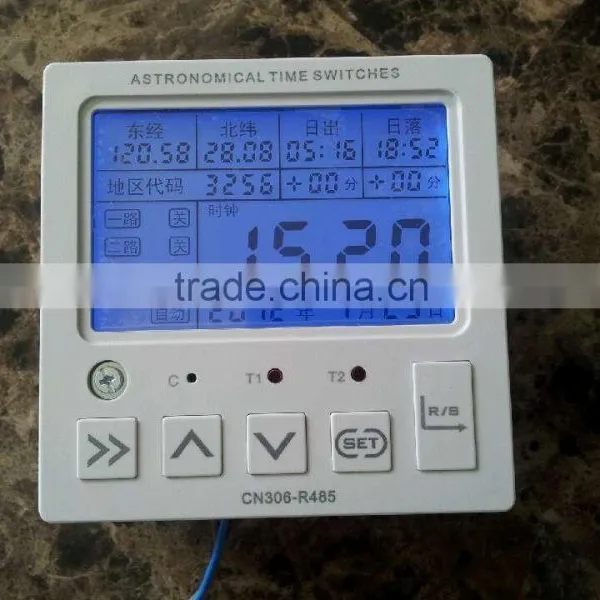

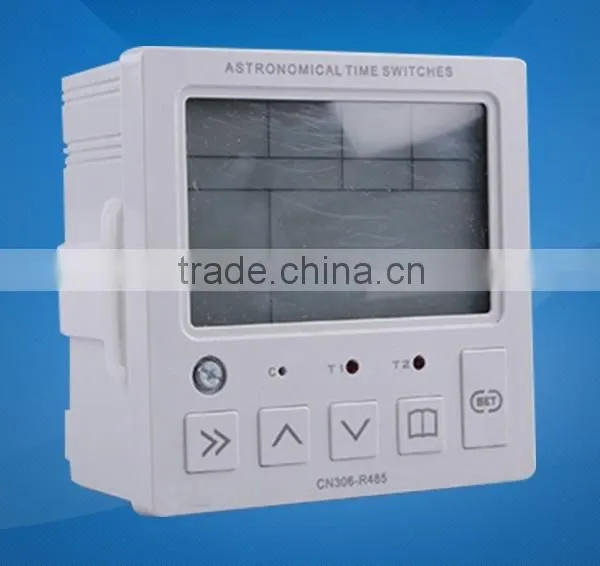

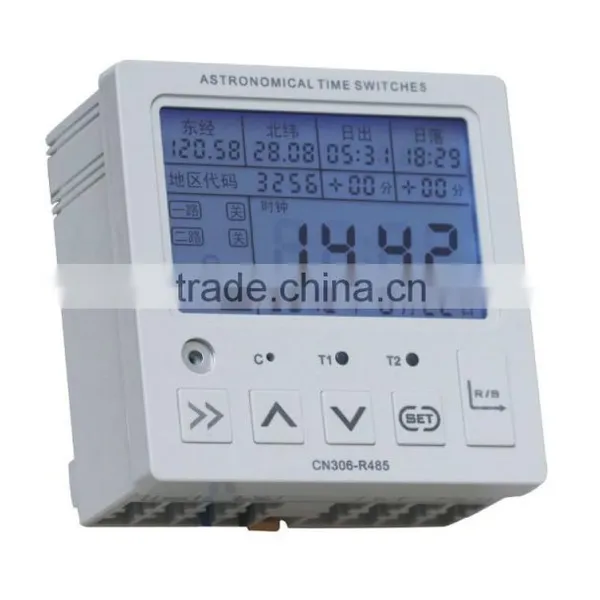

Astronomical Timer switch CN306-R485/THC306-R485/EL306-R485
Intelligent controller for road lamp using special computer chip, according to local latitude and longitude, according to seasonal changes automatically determine the switching time.
The user does not need to input switch time specifically (local longitude and latitude in the factory has been designed in advance). The controller can be put into normal use.
The Controller has A, B two inputs and each path can be set to "All/whole night lighting"(The lights turn on in the evening and turned off in the next morning), "Half night lighting"(Turn on the lights in the evening and turn off the lights after midnight), 2 ON 2 OFF (Half night lighting then Turn on at 12PM again, off when morning) in three ways, our factory come out setting is: A(All night lighting), B(Half night lighting).
In order to save energy, when our controllers working, only the second signal flicker control status indication normal operation and A, B two instructions, there is no other content display.
Press any of the button or after power on, it displays the current clock and that would be off after 1 minute.
- Permanent calendar program
- 2 channels
- Automatic calculation of sunrise and sunset times for the whole year
- Fixed public holiday, special festival or date ranges
- Extra night interruption / fixed ON switching
- Permanent ON/OFF switching
- Offset for adjusting of sunrise and sunset times
- Additional memories setting by manual
- City code list for easy position and program
- RS485 interface for PC
- 10 year power Reserve(Lithium battery)
Working voltage: 85-264V AC
Control channel number: 2 ways of output, according to the automatic setting code, every circuit/control
loop can be setted into 8 times ON/OFF manually
Product Size: 96*96*60mm
Control output: each 16A (directly), you can also control the expansion use
Set time: 1 Minutes -168 Hours
Setting Code: 681 regions available in China (Including Taipei and Hong Kong)
Timing error: ≤0.5s/24h
Installation: 35mm Din-rail mounting or 92*92mm panel mounted
The power of memory: 10 years (3.0 lithium battery inside )
Application: Street lighting, tunnel, large advertising light boxes etc.
Wiring Diagram:

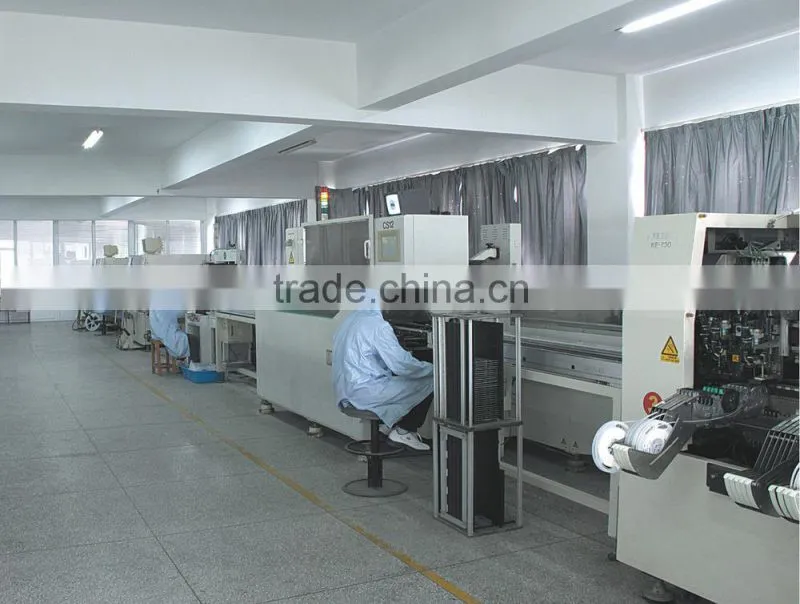

Chip bonding machine, SMT placement machine, automatic welding machines and semi-automatic production assembly line:
