MAIN TECHNICAL SPECIFICATION
1. Size: 38000mm × 3600mm × 3300mm
2. Total weight: about 24000KG
3. Controlling system: PLC
4. Total power(including heating):about 40KW
5. Working speed: 1000~3000mm/min
6. Density of EPS:>18kg/mm
7. Suitable material for production: 1000~1200mm × (0.5~0.6mm)
Sandwich Panel Forming Machine consists of a roll forming machine and a sandwich Panel laminating system. Through this line, corrugated sandwich panels can be produce directly, without the shortcoming that traditional corrugated sandwich panels have to be laminated manually after the forming of corrugated sheet. Moreover, both the roll forming machine and the laminating system can work independently. The roll forming machine of the line consists of feeding system, roll forming system and cutting system, while the laminating system is made up of such equipment as decoliter, feeding, squeezing, heating, laminating, edge rolling edge turn-over, groove-making, edge pruning, pneumatic device, automatic cutting and PLC. The whole machine possesses advanced working crafts, merging mechanical and electrical equipment into an organic whole. Annual production of this line eight hours a day is about 500,000 square meters.
FEATURES
1. Beautiful appearance, low noise, high efficiency.
2. Multiple functions: Besides corrugated sandwich panels, this line can be used to produce simple corrugated sheets.
3. The line employs advanced PLC and sets the panel length and cuts the panel automatically.
PRODUCT USAGE

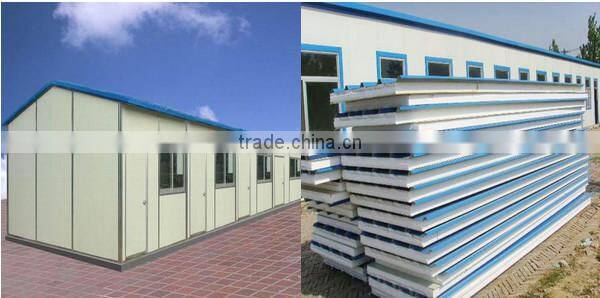

The products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, civil construction, stadium, cold storage, etc.
