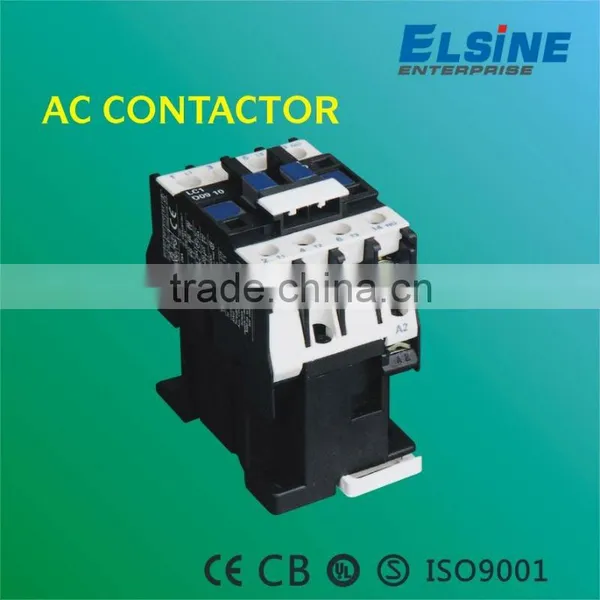

Help CenterLC1-D AC Contactor
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Model Number:
LC1-D
Electricity Type:
AC
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Model Number
LC1-D
Electricity Type
AC
Phase
3
Specifications
1.rated voltage 660V AC 50Hz or 60 Hz2.rated current up to 95A
3.IEC947-2,VDE0660 & BS5452.
4.for making, breaking and so on
Application:
LC1 series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60 Hz, rated current up to 95A, for making, breaking ,frequently starting & controlling the AC motor, Combined with the auxiliary contact block, timer delay & machine-interlocking device etc.
It becomes the delay contactor, mechanical interlocking contactor, star-delat starter. With the thermal relay, it is com bined into the electromagnettic starter. The contactor is produced according to IEC947-2,VDE0660 & BS5452.
Specification:
| Type | LC1-D09 | LC1-D12 | LC1-D18 | LC1-D25 | LC1-D32 | |
| Rated working current (A) | AC3 | 9 | 12 | 18 | 25 | 32 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | |
| AC3 capacity of phase 3 squirrel-cage motor AC3(KW) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | |
| 440V | 4 | 5.5 | 9 | 11 | 15 | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | |
| Electrical life | AC4*10 | 20 | 20-15 | 20_7 | 15_7 | 15_7 |
| AC3*10 | 2 | 2 | 2 | 2 | 2 | |
| Mechanical life*10 | 20 | 20 | 20 | 20 | 20 | |
| Number of the contact | 3P+NO | |||||
| 3P+NC | ||||||
