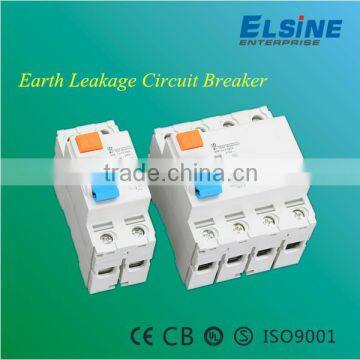

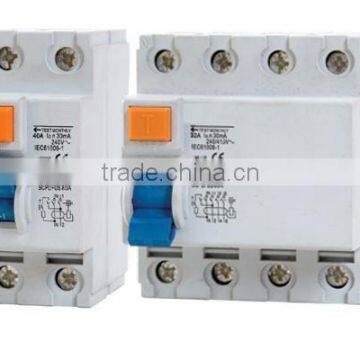

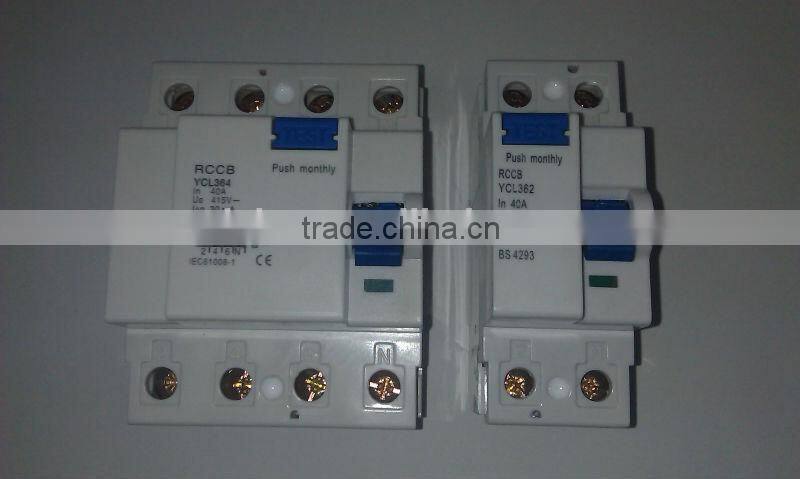

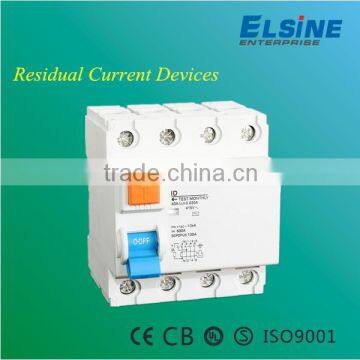

Help CenterID Model RCCB/ELCB/RCD Residual Current Circuit Breaker(Merlin Gerin ID MNL MGL)
Related Products
-
KRCD-2P Residual Current Device Circuit BreakerNegotiableMOQ: 500 Pieces -
C10 RCBO Residual Current Circuit BreakerNegotiableMOQ: 500 Pieces
-
Residual Circuit Breaker RCB/RCCB/ELCBNegotiableMOQ: 500 Pieces
-
C45N MCB Mini Circuit BreakerNegotiableMOQ: 500 Pieces
-
BKN Mini Circuit BreakerNegotiableMOQ: 500 Pieces
Specifications
provide the function of isolation switching and earth leakage protection of electrical circuits.ID, MG, MNL, MGL, F360, NFIN, FIMerlin Gerin Model ID series RCCB/ELCB/RCD/circuit breaker (ID MNL MGL)
Application:
ID Residual Current Circuit Breaker provide the function of isolation switching and earth leakage protection of electrical circuits.And also provide the indirect protection of the operator's body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical circuit fault.
Standard: IEC61008
Technical Data:
Type |
ID |
Number of poles |
2P, 4P |
Rated Current(In) |
25, 40, 63, 80, 100A |
Rated residual operating current( IΔn) |
10, 30, 100, 300, 500mA |
Rated residual non-operation Current( I Δ no) |
0.5I Δ n |
Rated Voltage(Un) |
AC 2P: 230/240V 4P: 400/415V |
Residual operating current scope |
0.5I Δ n~I Δ n |
Residual current off-time |
≤0.3s |
Type |
A, AC |
Ultimate short-circuit breaking capacity (Inc) |
6000A |
Endurance |
≥4000 |
Terminal protection |
IP20 |
Design box for customers
Packed with six belt/Strapping packing strip/belt/tape
Strong five layer cartons (3-layered carton)
2Pole: 100PCS/Carton
4Pole: 50PCS/Carton
Packing Measurement: Carton 53×40×19.5cm
Q 1. What's the payment term?
A. We accept T/T, L/C, Western Union, Cash
Q 2. What's the delivery time ?
A. Usually it would take about 25 days for production
Q 3. What is the standard of package?
A. Export standard package or special package according to customer requirement
Q 4. What kind of product quality your factory offer?
A. We offer most competitive prices with best quality, copper coil with silver contact.
Q 5. Do you accept OEM and ODM business?
A. We do,for OEM service please send us your authorization, also your quantity should large enough.
Q 6. Could you offer certificate of origin?
A. We can prepare relative documents to foreign affairs office or other office to apply the certificate.
Q7. What kind of certificate you have ?
A. Our company already achieve ISO, and for products, we have CE, SEMKO,CB, BSI, GS, TUV, VDE.
