Polyurethane Insulation Painting Machine
US$ 4,500 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
sanxing
Model Number:
60
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Pressure Polyurethane (PU) Insulation Foam Painting MachineUS$ 4,000 - 4,300MOQ: 1 Set -
Polyurethane Foaming MachineryUS$ 4,000 - 4,500MOQ: 1 Set
-
Made In China Polyurethane Foam Insulation MachineUS$ 4,350 - 4,350MOQ: 1 Set
-
SX Polyurethane Foam MachineUS$ 4,350 - 4,350MOQ: 1 Set
-
New Type Pu Foam MachineryUS$ 4,000 - 4,500MOQ: 1 Set
Place of Origin
China
Brand Name
sanxing
Model Number
60
After-sales Service Provided
Engineers available to service machinery overseas
pu spray foam insulation machine
Product Description

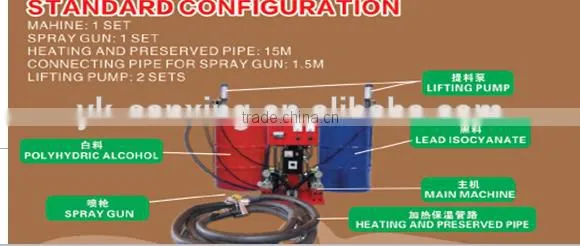

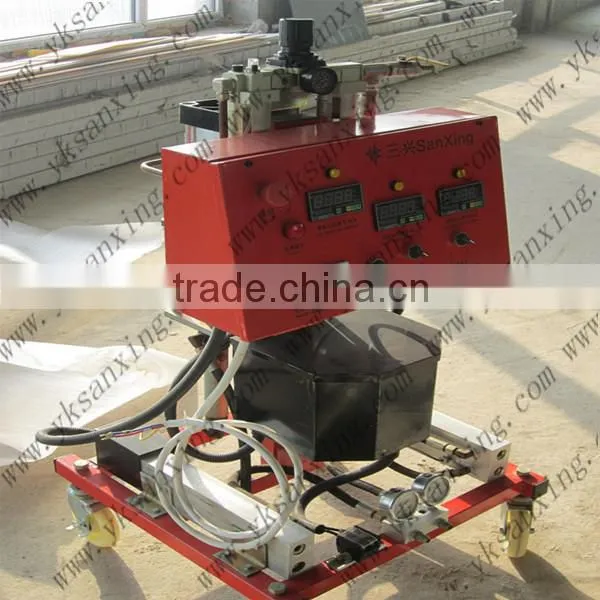

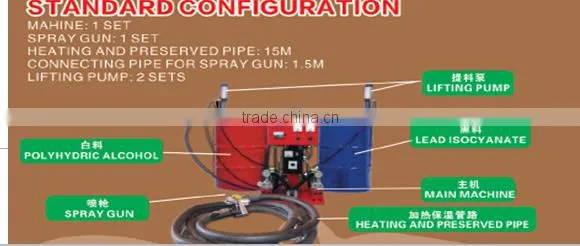

Standard Configuration: Mainframe: 1 set
Spray gun: 1 set
Heating and preserved pipe: 15 m Connecting pipe for spray gun:1.5m
Max.Pipe length :15m Transfer pump: 2 sets
1. Technical Parameter:
Academic max. output of material pump: 9.5kg/min(21b./min)
At operating pressure material output: 4~8kg/min
Heating device power for material: 2500w x2
Heating power for pipe heating preservation: 2000w
Single material output output pressure:11Mpa(1600psi)
Max. Pipe length: 90m(300Ft)
The highest heating temperature: 40 ℃
Air source requirements: 0.5-0.8Mpa(70-120psi)≥0.9m3/min
Electrical requirements: 220V/50Hz/single-phase
Volume: 800x700x1100(mm)
Weight: 125kg
