Sanxing Without Column large Span Roof Metal Sheet Forming Machine
Machine
Equipment Profile
Profile Drawing
Part Of Machine
Work Progress:
Project
Parameter
Feeding width:1250mm
Effective width:800mm
Thickness of the panel:0.8mm-1.5mm
Span:≤42m
Groove depth:320mm
Operating factor of the panel:64%
Size:8900mm × 2250mm × 2300mm
Total Weight::about 10T
Roller station:13+1 steps
Total Motor Power: 18.5 KW
Forming power:7.5 kw
Bending power:4.0 kw
Cutting power:4.0 kw
Conical power:3.0 kw
Working speed
Forming:15m/min
Bending:13m/min
Seaming:6 m/min
Cutting blade:Cr12 Mov
Cutting mode:Hydraulic or mechanical Material of rollers::45# steel, quenched HRC 58-62
Material of roller shafts:45# steel, adjusted
Controlling:PLC (button or touching screen)
Power supply:380V / 50 HZ / 3 PHASES

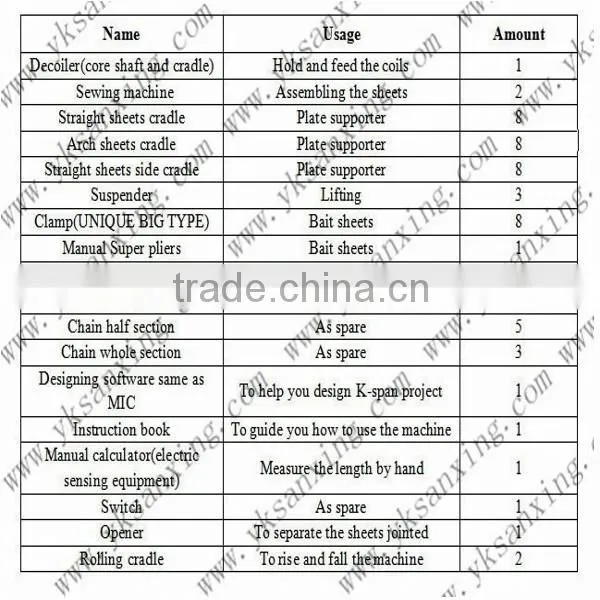

Accessories

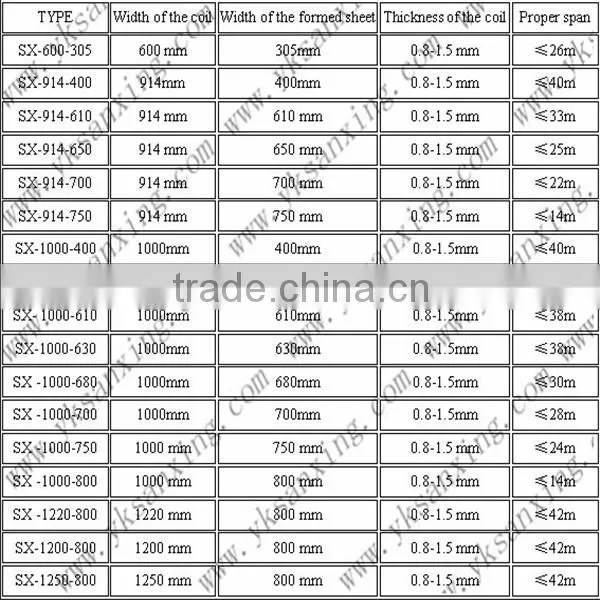

Specifications

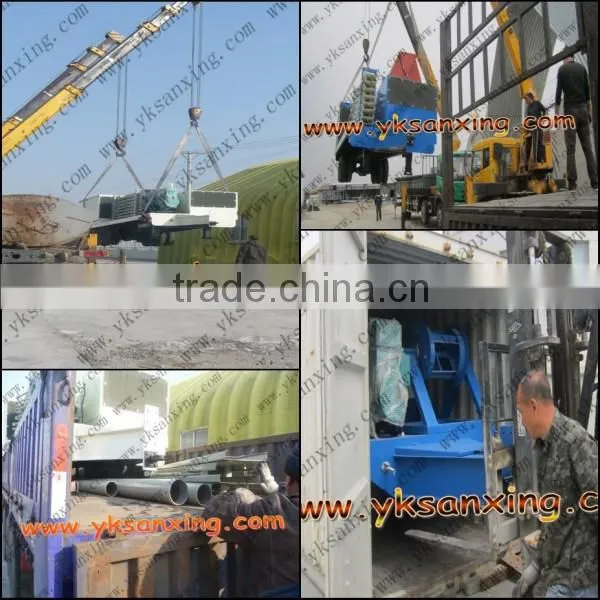

Packing:by container(20ft or 40ft)
Shiping:by sea

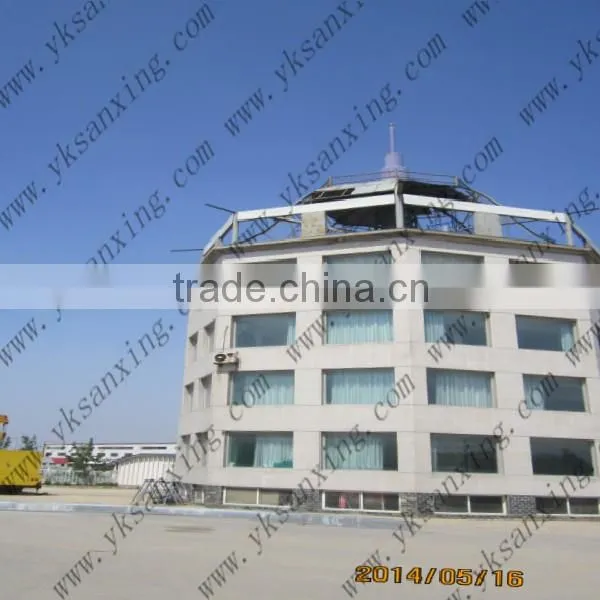

Our Company
We are a professional manufacturer of various cold roll forming machines in good quality with a competitive price. The excellent equipment and prefect after-service system are highly praised by the customers home and abroad. All of the products have passed the CE and are sold to many countries as South America, Middle Asia and Europe. There are ten experienced engineers in the work team. With CNC manufacturing machines, we ensure the precision of every part and to be finished in a very short time. Meanwhile, we also provide services of steel structural construction projects. If you have any questions in technical or want to contract a construction of structural steel products, please contact us without any hesitation. We will help you solve all the difficulties and offer you the best solution. We are sincerely looking forward to cooperating with you soon !
Our Certificates
Our Customer
Q:Wy I choose your company?
A:Our company was established in 1992,export experience about 20 years.We can ensure the machine quality and price.
Q:Can you accept OEM?
A:We can accept OEM.
Q:Can you produce machine as our requirement?
A:Sure,we have professional and development personnel,if you provide the relevant information,we can produce.
Q:Can you pay on delivery?
A:No,but if the amount is big,you can pay the deposite first,the balance before our shipment.
Q:What is your MOQ?
A one set.
Payment: T/T. 30% in advance, 70% T/T after inspection in the factory.
Delivery time: 30 work day against deposit date.
Guarantee: 13 months against B/L date. If you have any parts broken without human factor (not included wearing parts) , we will send them to you without charging.
