Hydraulic Big Span Arch Roof Sheet Roll Forming Machine
Machine

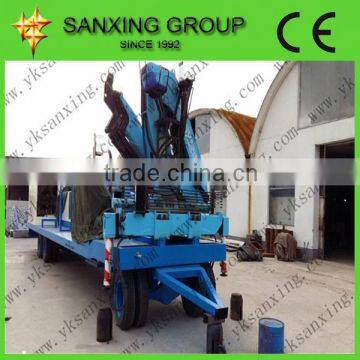

Equipment Profile
Profile Drawing

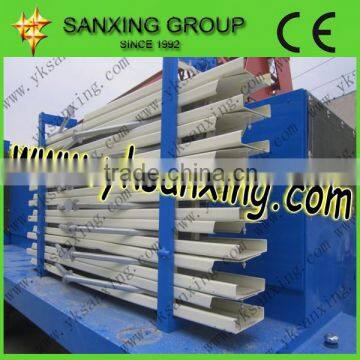

Part Of Machine
Work Progress:
Project
Parameter
1. Length: Approx. 10m
2. Width: Approx. 2.2m
3. Height: Approx. 2.3m
4. Wight: Approx. 87000kg
5. Axle: Three at 3630 kg/each capacity Six wheels in total
6. Wheel/tires: Standard, six in total
7.Towing: adjustable draw bar height from 80mm-160mm with 80mm round hitch.
8. One set of 30kw Diesel Generator
9.Lighting System: Easily adaptable lighting system to meet most international requirements
10Drive Systern:All hydraulic
11. Power Plant: Diesel, 4 cylinders, 40HP at 2800 rpm
12. Fuel tank capacity: 68 liter, 1-piece
13. Construction: All steel and burnished construction, precision forming rollers with hard chrome plating.
14.Decoiling Device: 580 mm inside diameter, 7000kg capacity
15. Plant: Premium urethane enamel over epoxy primer (white)
16. Panel forming speed: Approx. 15meters/min
17. Curving Speed: Approx. 14meters/min
18. Seaming Speed: Approx. 6-8 meters/min
19. Minimum Radius: 0.2 meters
20.Steel Coil Capacity:1.51 mm maximum thickness, 0.70 mm minimum thickness
21. Maximum Building Size: 38meters wide, widths are calculated using liberal code parameters from the International Building Code
22.Feeding width:1250mm,effective width:800mm
23.Operating factor of the panel:64%
The Advantage Of Hydraulic System
The ACM machine with hydraulic system works more steadily and produces panels faster.The maintenance is more convenient ans the operation is easier.The system is same as american machine.
Accessories
Specifications
Packing:by container(20ft or 40ft)
Shiping:by sea
Our Company
We are a professional manufacturer of various cold roll forming machines in good quality with a competitive price. The excellent equipment and prefect after-service system are highly praised by the customers home and abroad. All of the products have passed the CE and are sold to many countries as South America, Middle Asia and Europe. There are ten experienced engineers in the work team. With CNC manufacturing machines, we ensure the precision of every part and to be finished in a very short time. Meanwhile, we also provide services of steel structural construction projects. If you have any questions in technical or want to contract a construction of structural steel products, please contact us without any hesitation. We will help you solve all the difficulties and offer you the best solution. We are sincerely looking forward to cooperating with you soon !
Our Certificates
Our Customer
Q:Wy I choose your company?
A:Our company was established in 1992,export experience about 20 years.We can ensure the machine quality and price.
Q:Can you accept OEM?
A:We can accept OEM.
Q:Can you produce machine as our requirement?
A:Sure,we have professional and development personnel,if you provide the relevant information,we can produce.
Q:Can you pay on delivery?
A:No,but if the amount is big,you can pay the deposite first,the balance before our shipment.
Q:What is your MOQ?
A one set.
Payment: T/T. 30% in advance, 70% T/T after inspection in the factory.
Delivery time: 30 work day against deposit date.
Guarantee: 13 months against B/L date. If you have any parts broken without human factor (not included wearing parts) , we will send them to you without charging.
