Sanxing K Q SPAN WITHOUT STRUCTURE K TYPE ROLL FORMING MACHINE

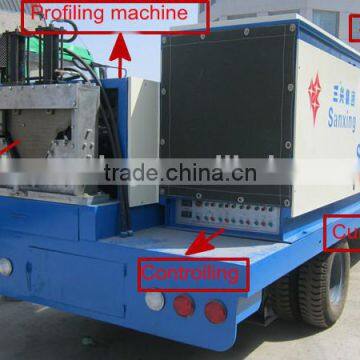

1. Pictures of Forming Machine Product
2. Descriptions of Forming Machine product
Size: 10300mm×2250mm×2300mm
Total Weight: about 18000KG
Working Speed: Straight sheet: 13m/min
Arch sheet: 13m/min
Sewing: 6m/min
Material of rollers: 45# steel, quenched HRC 58-62
Material of roller shafts: 45# steel
Material of cutting blade: Cr12 steel (Taiwan Airline Technique)
Controlling system: PLC
Step of rollers: 14 steps
Feeding Width: 600mm
Effective Width: 305mm
The depth of the groove: 295mm
Thickness of the coil: 0.6-1.5mm
Operating factor of the panel: 64%
Proper span: ≤24m
3. Profile of Product
4. How to Order Our Forming Machine Product
1. Customers offer span and profile
2. Our technician will make a professional suggest of the machine according to your information.
3. After your confirmation ITME of the machine, we will do quote.
4. Note. Customers can order all product samples we put or your can also have your own idea,
as we are custom-ade product supplier, so different colors and types are available.
5. Certifications of Product
6. More Products to Choose
7. Trade Items of Product
| MOQ | 1 SET |
| Package | 40HQ |
| Delivery Time | 30 days after prepayment |
| Payment Type | T/T, L/C, …… |
| Supply Ability | 20 sets/month |
| Port | Dalian |
1
Yingkou Sanxing Roll Forming Machine Co.Ltd is the earliest manufacture of trailer arch roof machine in China since 1992. The only one who have got engineering qualification. Not only we are professional in machinery but also experienced in project designing. Welcome to visit us any future time.
2. Process
3. Our Customers
1) Life time guarantee for whole machine except of bearing parts.
2) 24 hours technical support by e-mail.
3) Use-friendly English manual and videos.
