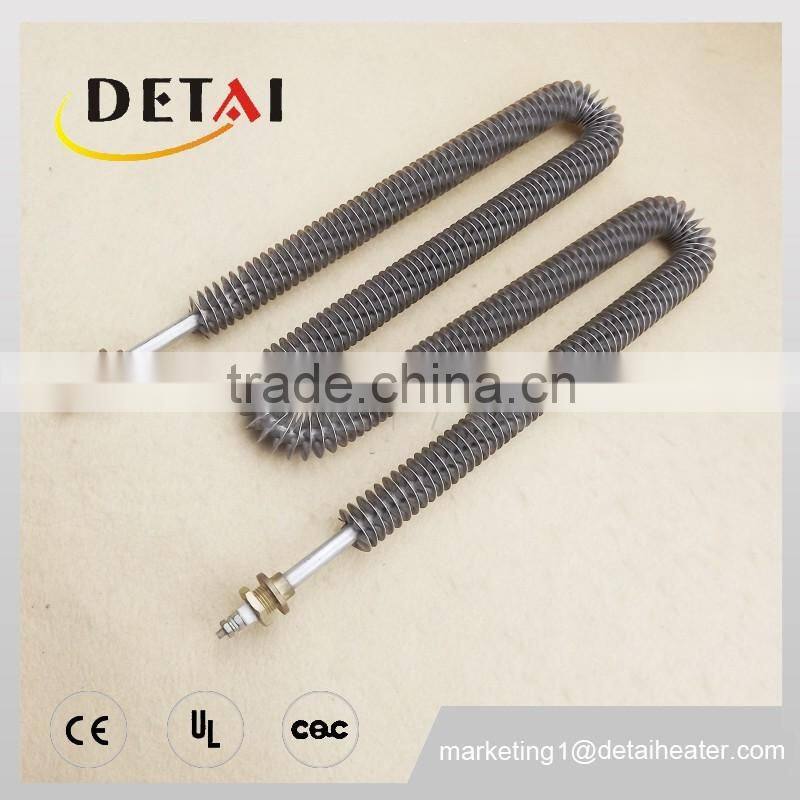

Finned Air Tubular Heater Finned Tube Heating Element
Soldered fin, finned tubing, edge tension finned tubing
Introduction of Finned Air Tubular Heater Finned Tube Heating Element
A corrugated metal fin is helically wound on a Finned Tube to improve heat transfer in air applications. Depending on the sheath and fin material selected, the fins are either permanently attached, mechanically or via furnace brazing. The entire assembly then goes through a computer controlled atmosphere furnace. This process prepares the element to be bent into a variety of configurations. Standard fin density is five fins per inch, while eight fins per inch can be furnished when specified for lower sheath temperatures.
Technique Data of Finned Air Tubular Heater Finned Tube Heating Element
|
|
Sheath Material |
SUS 304/316/ Incoloy 840 |
Spirals |
Nickel - Chrome |
Insulation |
Magnesium Oxide Powder |
Voltage & Watt Supply |
50V-450V & 100W-10KW |
Shape |
U Shape/ W Shape/ I shape |
Resistance Tolerance |
+10% - 5% |
Wattage Tolerance |
+5% - 10% (closer tolerances are available upon special request) |
Material |
Details of contents |
Proper environment |
Limit service temperature |
SUS304 |
Ni 8.0~10.5 |
Air heating |
600 ℃ |
Cr 18.0~20.0 | |||
Ti ---- | |||
Mn 2.00MAX | |||
Mo ---- | |||
Incoloy 840 |
Ni 18.0~22.0 |
800 ℃ |
|
Cr 18.0~22.0 | |||
Ti 0.6MAX | |||
Mn 1.00MAX | |||
Mo ---- | |||
Incoloy 800 |
Ni 30.0~35.0 |
260℃or less |
|
Cr 19.0~23.0 | |||
Ti 0.15~0.6 | |||
Mn 1.5MAX | |||
Mo ---- |
Features of Finned Air Tubular Heater Finned Tube Heating Element
1. Versatile — Ideal for both comfort and industrial process air applications. Stainless Steel (FTSS) sheath and fin material are available.
2. Fins greatly increase surface area and permit faster heat transfer to the air, resulting in lower element surface temperatures.
3. Construction — Element is constructed like the standard tubular element with the addition of continuous spiral fins (4 - 5 per inch) permanently furnace brazed to the sheath.
4. High Watt Density permits use of fewer elements or higher concentration of installed kW for a given area.
5. Easy Installation — Bending configurations can be designed to fit either round or rectangular ducts. Tight element bends are repressed in hydraulic presses after bending to assure recompaction of refractory material to eliminate hot spots and electrical insulation voids.
6. Power Connections should be made with alloy wire.
7. Over temperature Protection — A high limit temperature cut out is recommended.
8. Bending — Finned tubular elements may be field or factory bent according to the following parameters: I Shape, U Shape and W Shape
9. Special Terminal Construction — Many types of terminals are available to suit different applications.
Applications of Finned Air Tubular Heater Finned Tube Heating Element
- Plastic Processing machinery;
- Water and Oil Heating Appliances;
- Packaging machineries;
- Vending Machines;
- Dies and Tools;
- Heating Chemical Solutions;
- Ovens & Dryers;
- Kitchen equipments;
- Medical equipments;
- Used in many other applications.
When you order Finned Air Tubular Heater Finned Tube Heating Element, please note the specifications as follows:
1,Any drawings or photos will be very helpful
2,Power,voltage,shape
3,Working temperature
4,Material requirement
5,Quantity
6,Othe requirement required.

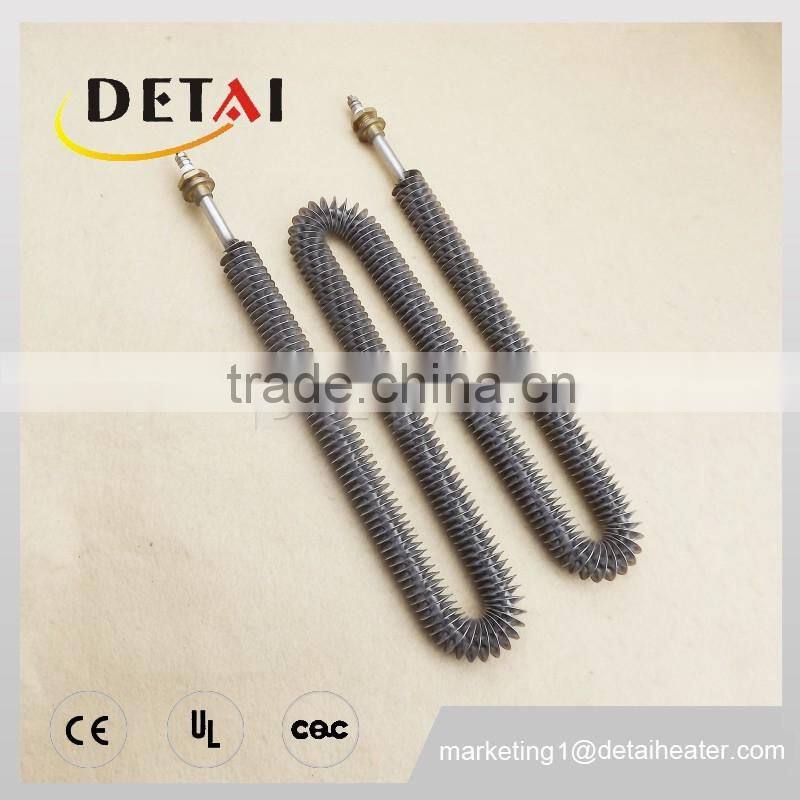

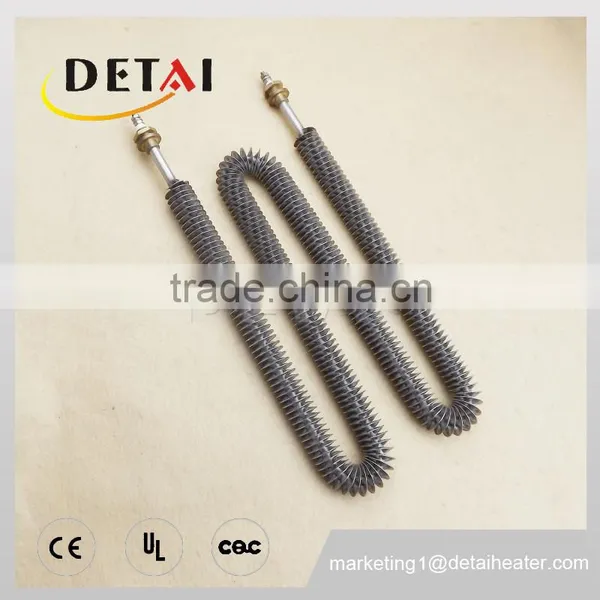

Detail images of Finned Air Tubular Heater Finned Tube Heating Element :
1. Are you manufacturer or trade company?
We are professional factory specialized in making heating element for over 21 years.
2. Will you offer free sample?
Yes,we will send you sample for free.
3. How much is the freight charge would be?
The freight cost depends on the weight and packing size and your area.
4. When can i expect to get your sample?
The sample will be ready for delivery in 1-2 days and arrives in about 4-5 days.
5. Can you make as per to my requirements?
Yes,all the products are customized.
6. How can you guarantee your quality?
Quality is our culture. Certificates do not guarantee but samples do!
7. List some companies you have been working with.
Sinbo, Toshiba, Media, Glanz, Orbis, etc.
8. How can I trust you with my order and money?
We are Alibaba trade assurance supplier with USD 46000 limit. You may place order via Alibaba with us
9. How can i contact you to know more?
Atte:Shirley Mao
Skype:detai_heater
Tel:+86 0769 82168763
