Specifications
Cartridge heater element1.Quick temperature rising
2.Matrials:SS304,incoloy
3.Certificate:CE,UL,ISO
4.Long working life

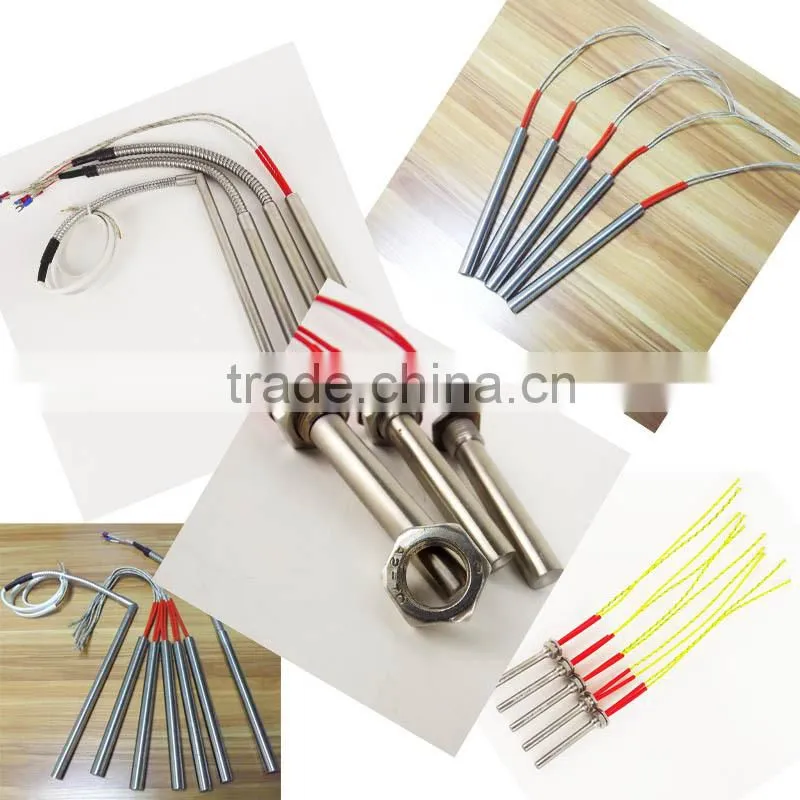

Cartridge Heater Element 750W With Screw
High Density Advantage |
||
|
1- Higher Watt densities permit smaller heaters to be used without compromising life expectancy. This results in short term and long term cost savings. 2- Swaged construction provides maximum support for the resistance wire, eliminating vibration and shock effects. 3- Excellent heat transfer characteristics permit extended life compared to other heaters. 4- Termination styles and special features allowing customization to any application. These heaters are designed with high or low density and are manufactured in stainless steel sheath metal. Cartridge heaters are available with different bushing sizes for immersion applications, different Wattage, Voltage and length. | ||
Features
Heat resistant termination
Double end screw termination

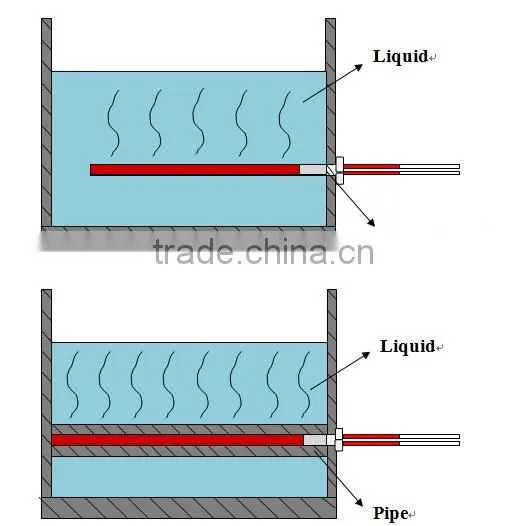

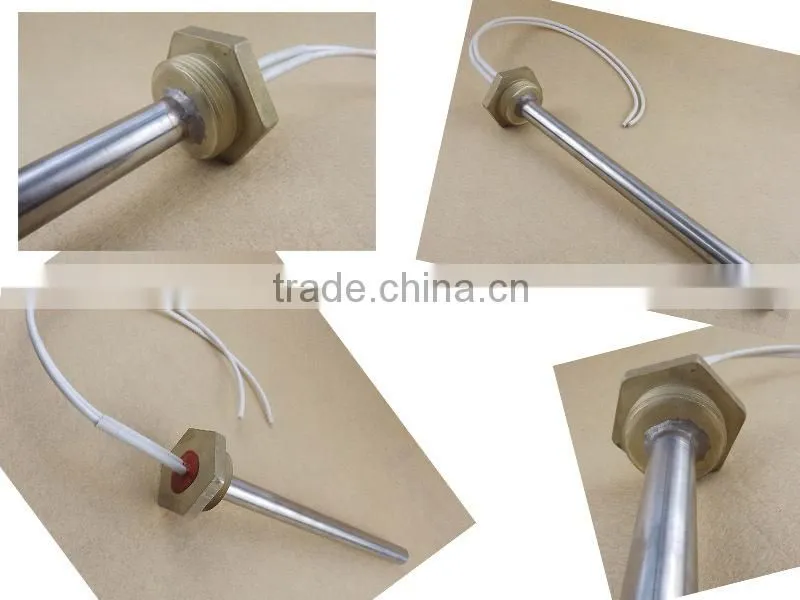

Pipe fitting with double threaded BSP bushing
Double end lead wire
Single thread
Mounting flange
Right angle with copper elbow
Screw terminal
Lug terminal “eyelet terminal”
| Typical Applications | |
|
Plastic extruders Hot runner molds Hot stamping Medical equipment Packagingequipment Molds and Dies Plastic molding |
Shoe machinery Food processing Heating gases and liquids Glue guns Labeling machines Packaging equipment Heat sealing equipment |
Tempora Recommendations
1- Use the closest practical fit
2- Protect leads from moisture, physical damage
3- Avoid excessive lead wire length
4- Locate your temperature sensing switch to 1/2” (1.27 cm) from element.
| How to order |
|
* Determine Wattage and available Voltage * Select sheath, overall length, heated length & termination |
