Product Description
Key Components
Item |
Description |
Controller |
imported from USA directly |
Motor |
AC motor Chinese brand |
Battery |
Lead Acid battery maintenance free |
Charger |
72V/30A |
Performance
Item |
Description |
Passenger Capacity |
2 |
Range (loaded) (km)* |
up to 80 |
Max. speed (km/h) |
up to 30 |
Min. turning radius (m) |
6 |
|
Max. climbing ability(loaded)
|
up to 20% |
Net |
1250(1150) |
Charging time (hour) |
8 |
Dimensions
Item |
Description |
Overall dimensions (mm) |
4600(3930)*1470*2050 (LxWxH) |
|
Rear garbage box dimensions (mm) |
2970(2270)*1280*520 (LxWxH) |
Min .ground clearance (mm) |
190 |
Wheelbase (mm) |
2420(1780) |
Front wheel tread (mm) |
1240 |
Rear wheel tread (mm) |
1240 |
Body and Frame
Item |
Description |
Frame & Chassis |
Welded steel framework with sand blasting and painting |
Cabin |
Aluminum frame with FRP cover sheet and glass window |
Front windshield |
Laminated glass with wiper |
Seat |
Reborn sponge with artificial leather, |
Floor |
Skid proof leather |

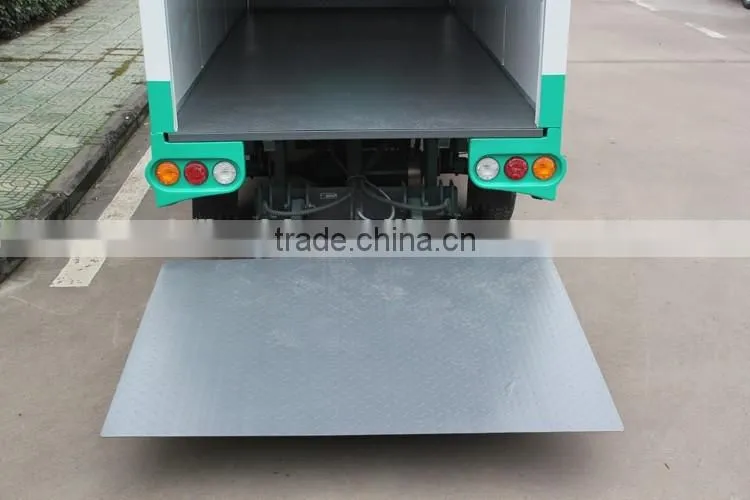

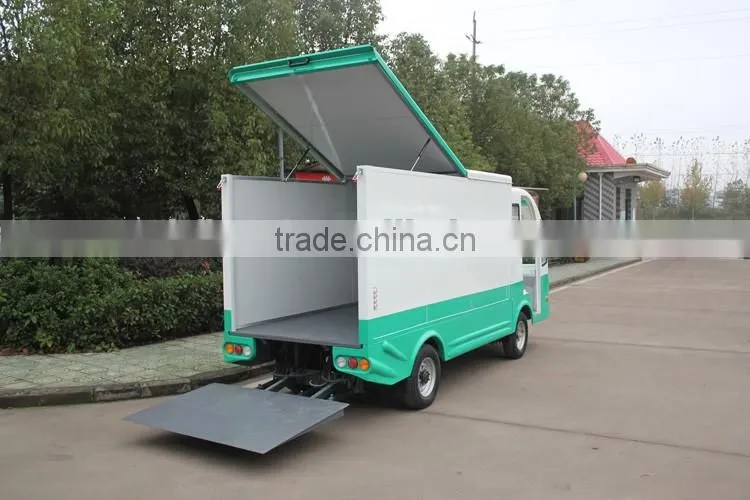

Rear garbage box |
Steel material, with hydraulic lifting function, with side lifting function |
Battery sliding system |
Steel frame with sliding wheel |
Beverage holders |
1 cups holders |
Side rear view mirror |
2pcs, manual adjustable |
Electric System
|
Item
|
Description |
Lights |
12V, headlight (H/L beam), front turning light, Rear taillight (brake light and rear turning light) |
Horn |
Electric horn, 12V |
Reverse buzzer |
Electric, 12V |
DC/DC converter |
72V/12V |
Audio system |
Radio with MP3 receiver, with two waterproof speaker |
Digital Meter |
with Current meter, volt meter, speedometer and various indicators |
Steering and Suspension
Item |
Description |
Brake System |
4-wheel hydraulic drum brake with hand park brake, Drum brake braking |
Accelerator |
Resistance type, stepless speed change |
Front suspension |
non-independent suspension, cylinder hydraulic vibration absorber and leaf spring |
Rear suspension |
integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
Transmission system |
Clutch, 4F+1R gear box, transmission shaft |
Wheel & Tyre |
155R12C tubeless tire, 4J*12 steel rim |
