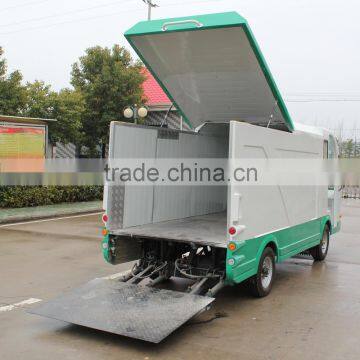

Electric Garbage Collecting Vehicle with door and tail lift

Item

Description

Controller

imported from USA directly

Motor

AC motor Chinese brand

Battery

Lead Acid battery maintenance free

Charger

 72V/30A

Item

Description

Passenger Capacity

2

Range (loaded) (km)*

up to 80

Max. speed (km/h)

up to 30

Min. turning radius (m)

6

Max. climbing ability(loaded)

up to 20%

Net

1250(1150)

Charging time (hour)

8

Item

Description

Overall dimensions (mm)

4600(3930)*1470*2050 (LxWxH)

Rear garbage box dimensions

(mm)

2970(2270)*1280*520 (LxWxH)

Min .ground clearance (mm)

190

Wheelbase (mm)

2420(1780)

Front wheel tread (mm)

1240

Rear wheel tread (mm)

1240

Item

Description

Frame & Chassis

Welded steel framework with sand blasting and painting

Cabin

Aluminum frame with FRP cover sheet and glass window

Front windshield

Laminated glass with wiper

Seat

Reborn sponge with artificial leather,

Floor

Skid proof leather

Rear garbage box

Steel material, with hydraulic lifting function, with side lifting function

Battery sliding system

Steel frame with sliding wheel

Beverage holders

1 cups holders

Side rear view mirror

2pcs, manual adjustable

Item

Description

Lights

12V, headlight (H/L beam), front turning light,

Rear taillight (brake light and rear turning light)

Horn

Electric horn, 12V

Reverse buzzer

Electric, 12V

DC/DC converter

72V/12V

Audio system

Radio with MP3 receiver, with two waterproof speaker

Digital Meter

with Current meter, volt meter, speedometer and various indicators

Item

Description

Brake System

4-wheel hydraulic drum brake with hand park brake,

Accelerator

Resistance type, stepless speed change

Front suspension

non-independent suspension, cylinder hydraulic vibration absorber and leaf spring

Rear suspension

integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber

Transmission system

Clutch, 4F+1R gear box, transmission shaft

Wheel & Tyre

155R12C tubeless tire, 4J*12 steel rim
