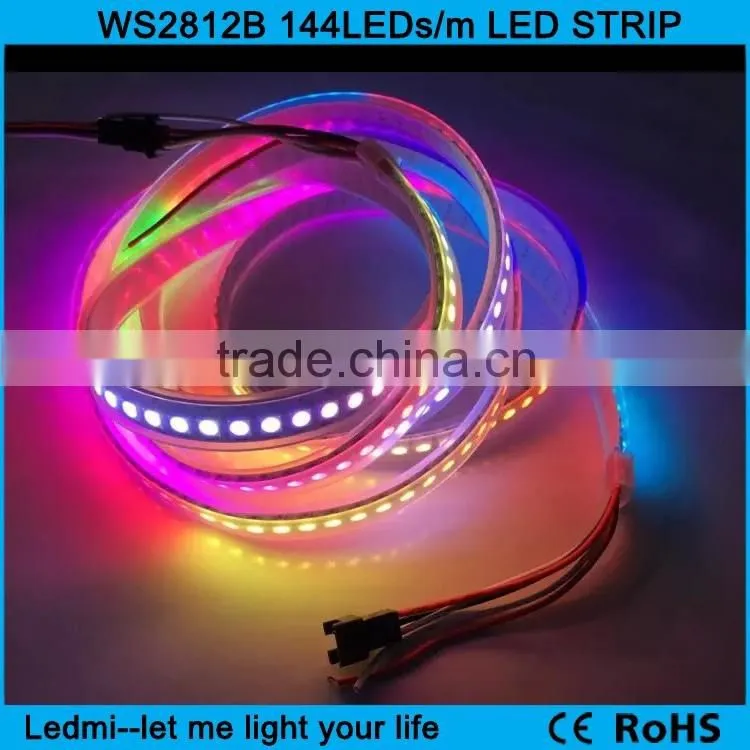

Individually Addressable Led Strip Ws2812b 144led/m 144pixel/m Dc5v Led Strip

Individually Addressable Led Strip Ws2812b 144led/m 144pixel/m Dc5v Led Strip thumbnail-1
Individually Addressable Led Strip Ws2812b 144led/m 144pixel/m Dc5v Led Strip thumbnail-2
Individually Addressable Led Strip Ws2812b 144led/m 144pixel/m Dc5v Led Strip thumbnail-3
Individually Addressable Led Strip Ws2812b 144led/m 144pixel/m Dc5v Led Strip thumbnail-4
Individually Addressable Led Strip Ws2812b 144led/m 144pixel/m Dc5v Led Strip thumbnail-5
Individually Addressable Led Strip Ws2812b 144led/m 144pixel/m Dc5v Led Strip thumbnail-6

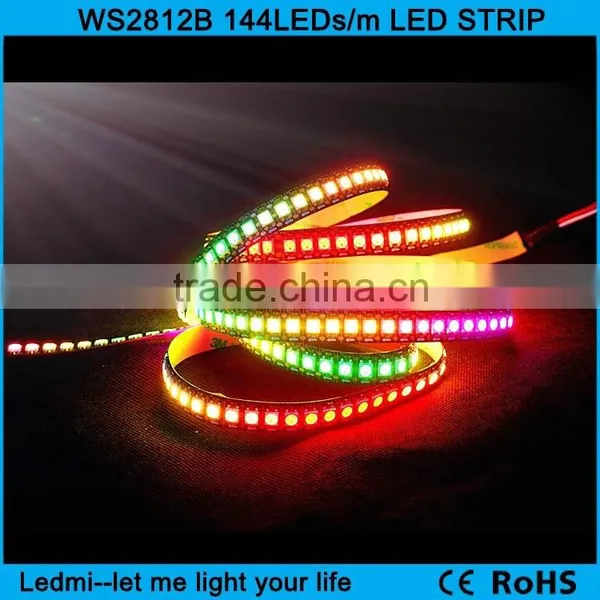

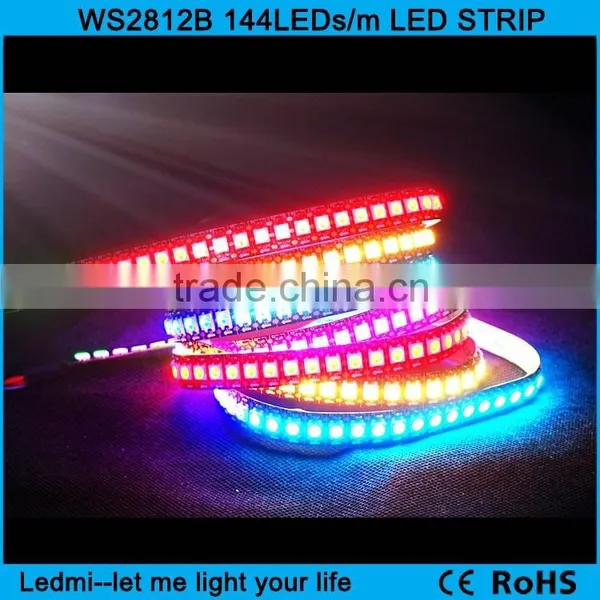

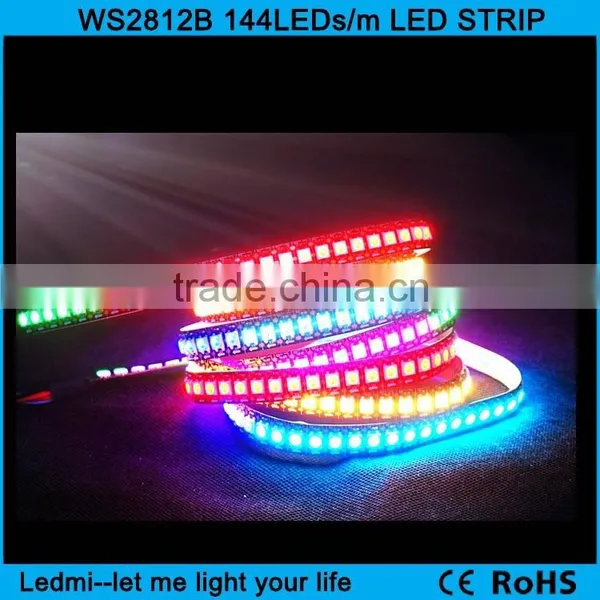

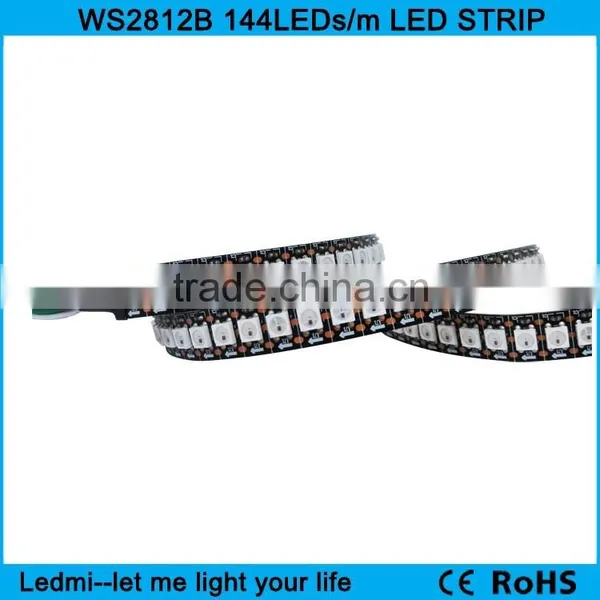

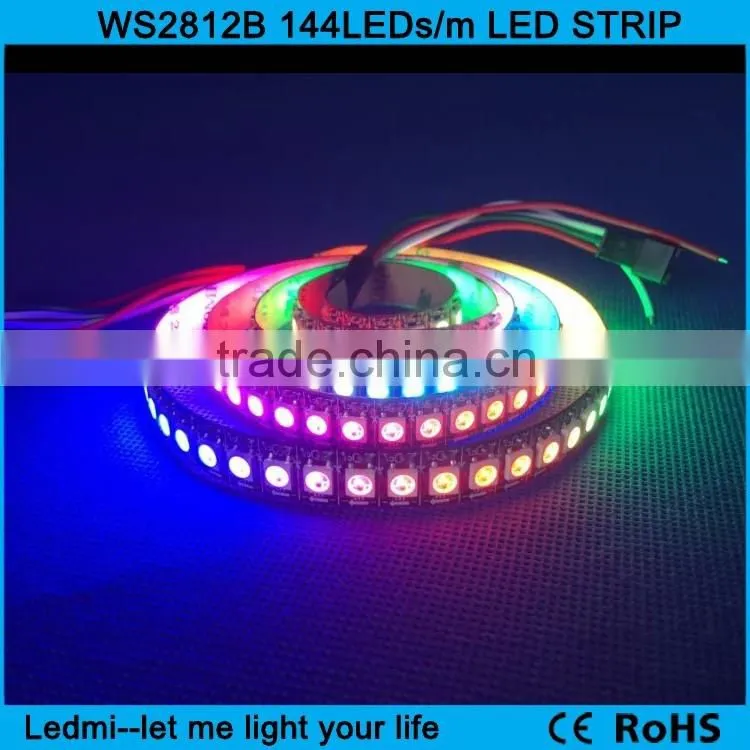

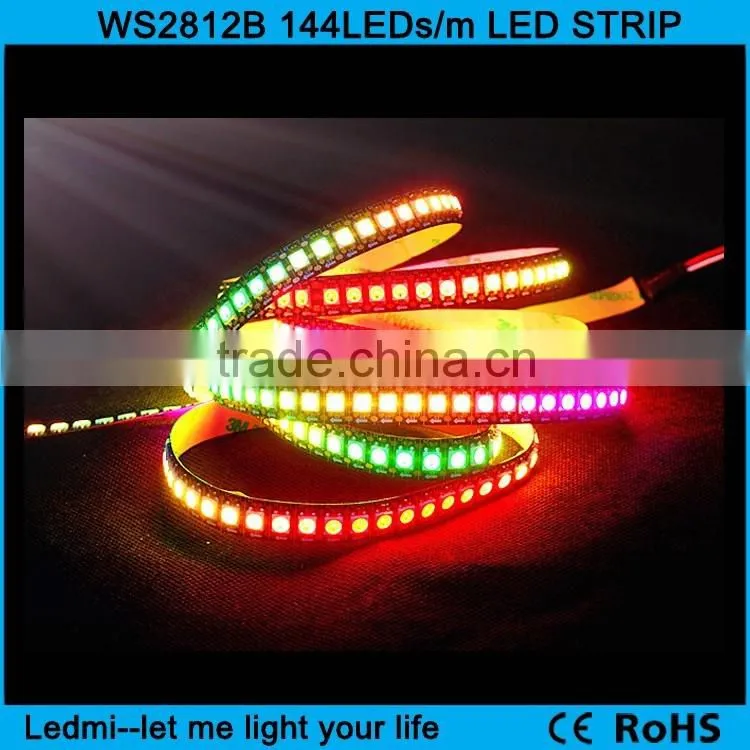

Individually Addressable Led Strip Ws2812b 144led/m 144pixel/m Dc5v Led Strip photo-1
Individually Addressable Led Strip Ws2812b 144led/m 144pixel/m Dc5v Led Strip photo-2
Individually Addressable Led Strip Ws2812b 144led/m 144pixel/m Dc5v Led Strip photo-3
Individually Addressable Led Strip Ws2812b 144led/m 144pixel/m Dc5v Led Strip photo-4
Individually Addressable Led Strip Ws2812b 144led/m 144pixel/m Dc5v Led Strip photo-5
Individually Addressable Led Strip Ws2812b 144led/m 144pixel/m Dc5v Led Strip photo-6
US$ 16.25 - 17.66 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
SMD5050
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen Ledmi Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD5050
Type Flex LED Strips
Input Voltage(V) DC5V
Lamp Power 43.2W/M
Lamp Luminous Flux(lm) 18-20lm/led
Color Temperature(CCT) 2700-7000K
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 50000
Lamp Body Material PVC
Certification CE, FCC
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name OEM/ODM
Model Number LM144-WS2812B-5V-W/B-IP20

Individually addressable led strip ws2812b 144led/m 144pixel/m dc5v led strip

Specifications

Features:

1. WS2812B IC part, addressable full color led pixel strip, 1 IC & 1 LED chip

2. Safe to use, you must use a 5V DC power supply to power this strip

3. 16.4ft length, 1 meter per rolll. Allowable cut every 1 LED lights--individually control

4. Come with 3M adhesive tape backing, easy and flexible installation at any place

5. Waterproof and non-waterproof option, for indoor, outdoor and underwater use

6. Ideal for signs decoration, night lighting, outdoor lighting

7. White PCB and black PCB option

8. CE and RoHS Certification



Item Name WS2812B addressable LED strip
Item No. LM144-WS2812B-5V-W/B-IP20
Led Type 5050SMD RGB LED chip
Input Vlotage DC5V
Led QTY 144LED/M
IC QTY 144IC/M
Wattage 43.2W/M
Standard Length 1 meter/roll
PCB Color White/Black
PCB Width 12MM
Beam Angle 120°
Emitting Color Addressable full color
IP Rate IP20 IP65 IP67 IP68
Operating Temperature -20 ~ 50°C
Storage Temperature -40 ~ 80°C
Certification CE RoHS
Warranty 2 years



IP20-Bare board, non-waterproof

IP65-Epoxy waterproof

IP67-Casing waterproof

IP68-Glue waterproof



WS2812B 30LED/M, 60LED/M, 144LED/M

Type 30LED/M 60LED/M 144LED/M
IC WS2812B WS2812B WS2812B
IC QTY 30IC/M 60IC/M 144IC/M
PCB Width 10mm 10mm 12mm
PCB Color White/Black White/Black White/Black
Standard Length 5 meter/roll 5 meter/roll 1 meter/roll
Voltage DC5V DC5V DC5V
Watt 9W/M 18W/M 43.2W/M
Cutted per 1 LED per 1 LED per 1 LED
Product Pictures



Individually addressable led strip ws2812b 144led/m 144pixel/m dc5v led strip
Individually addressable led strip ws2812b 144led/m 144pixel/m dc5v led strip

Individually addressable led strip ws2812b 144led/m 144pixel/m dc5v led strip
Individually addressable led strip ws2812b 144led/m 144pixel/m dc5v led strip
Individually addressable led strip ws2812b 144led/m 144pixel/m dc5v led strip
Factory Show



Individually addressable led strip ws2812b 144led/m 144pixel/m dc5v led stripIndividually addressable led strip ws2812b 144led/m 144pixel/m dc5v led strip
Packaging & Trade

1. Packing: 5meter/roll plate fixed to the anti-static bag small order is available.

2. Delivery Time: 3-5 working days for the normal models since getting your deposit, 1-2 days for lesser samples. 3-5 days you will get the goods by express.

3. Delivery Ways: UPS, FedEx, EMS, DHL, etc

4. Payment: T/T, Western Union, Paypal is available.

Individually addressable led strip ws2812b 144led/m 144pixel/m dc5v led strip
