China manufacturer 12v led strip smd 5050 5m/roll
- 100000 Meter / Meters per Month
- Shenzhen
- T/T Credit Card
You May Like
-
Factory hot sale 12v IP68 waterproof smd 5050 flexible led strip lights stick with epistar chip
-
2015 hot sales high quality 12v IP65 smd 5050 flexible led strip lighting strips
-
2015 hot sales 12v flexible smd 5050 led strip waterproof IP68 for outdoor lightiing
-
Lower price adressable usb powered led strip light smd5050 full color
-
ws2811 led strip ws2812 led strip
-
ws2812b 144 led pixel strip
Product Details
LED Light Source | SMD5050 | Type | Flex LED Strips | |
Input Voltage(V) | DC24V | Lamp Power | 28.8W/M | |
Lamp Luminous Flux(lm) | 18-20lm/led | Color Temperature(CCT) | 2400-6500k | |
Working Temperature(℃) | -20, 50 | Working Lifetime(Hour) | 50000 | |
Lamp Body Material | Copper | Certification | CCC, CE, EMC, FCC, LVD, UL | |
Emitting Color | Other, White/Warm White/Blue/Green/Red/Yellow | Place of Origin | Guangdong, China | |
Brand Name | OEM/ODM | Model Number | LD120-R5050-24V-AA |
Product Description
f
China manufacturer 12v led strip smd 5050 5m/roll
Features:
1.DC24V
2. Imported chip, high quality and reliability
3.High brightness, long lifespan, more than 50,000 hrs
4.Low brightness degradation, low power consumption
5.120degree wide beam angle
6.Available in full range of single-color (red, green, blue, yellow, white, warm white)
7.Easy to install by the 3M adhesive tape on the FPCB back
8.Easy connection with snap-in connectors
9.Waterproof and non-waterproof option
10.PCB color: White, brown and black option
11.CE and RoHS Certification
Specifications:
Iterm NO. | LD120-R5050-24V-AA |
Watt | 28.8w/m |
Input Volt | DC24V |
Led Resource | SMD 5050 LED strip light |
CRI(Ra) | >80/>90 |
Led Qty | 120 leds/m |
Lumens/meter( ± 10%) | 2484lm/m |
Color | Red/Green/Blue/Yellow/White/Warm White |
Warranty | 3 years |
PCB Width(mm) | 15/20/28mm |
Standard | CE/RoHS/UL/ISO9001/FCC |
Choice(IP Rated) | IP20/IP65/IP68 |
LED Lighting Angle | 120º |
Operation Temperature | -20-50 ℃ |

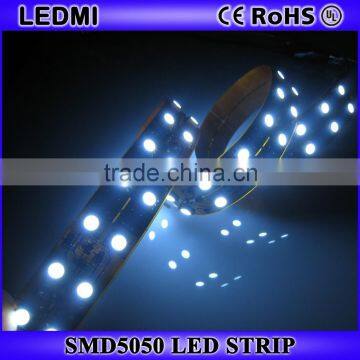

Pictures:
More Choice:
Dimension Chart & Photoelectric Parameters :
Connection Ways:
Applications:
1.Widely used in architectural decoration lighting, urban lighting
2.Hotels, clubs, shopping malls and exhibition hall lighting
3.Home decoration, ceiling, garden, swimming pool lighting
4.Advertising backlighting for light box, counter lighting
5.Conference lighting, exhibition lighting, performance lighting
6.Concealed lighting, edge lighting and cove lighting
7.Archway, canopy and bridge edge lighting
8.Emergency hallway lighting, sidewalk lighting
9.Car, ship and bicycle decorative lighting
Certifications:
We passed CE/ROHS/UL/ISO9001/FCC standard.
Packing: 5 meters/roll, 1 roll/bag, 25bags/carton. MOQ is 250meters(50rolls).
Delivery Time: 7-10 days for the normal models since getting your deposit, 2-3 days for less samples. 3-5 days you will get the goods by express.
Payment terms: 30% TT as deposit, balance before shippment.
Please call us or send us your inquiry and we will reply you in 24 hours. We are providing the top quality with best service for our all clients from all over the world.
We are a leading manufacturer for high quality LED strips/led bulb/led flood light/cfl for decorative and commercial. We are a leading manufacturer for high quality led strips for decorative and commercial. We are positioned quality with reliability and excellent color consistency, mostly exported to European-wide, custom OEM/ODM service is appreciated.
It is great honor to work with you. Always at your service, to be your trusted partner.
1. Q: What is the best selling product in LEDMI?
A: LED linear lights account for 80% sales turnover, especially 5050SMD 60LED W/WW/RGB and 1210SMD 120LED W/WW, but we are selling more and more LED general lights such as LED bulb, LED candle light, LED spotlight, LED T8/T10 fluorescent tubes and LED panel etc.
2. Q: Can I cut your strips into smaller length?
A: Yes, generally speaking, for our flexible ribbons and aluminum bars, cutting unit of 3lamps for 12VDC type and cutting unit of 6lamps for 24VDC type; for strip of LED modules, each module works separately and be cutable according to specified need.
3. Q: Can a dimmer work on your linear lights?
A: Yes, they can be dimmed by wireless and manual dimmers we offer. Our dimmer can offer max 216W output at 12V and max.432W output at 24VDC.
4. Q: What kinds of products are recommended for underwater use?
A: Our IP68 rated (PVC) are specially designed outdoor use and under water use.
5. Q: How long can we connect the ribbons?
A: Generally speaking, about 10-15meters with one power supply, but if longer required, the ribbons should be fed at every 5meters to avoid voltage drop problem, in the case, the connecting length is unlimited.
6. Q: Why are your LED products a little more expensive than the ones from competitors?
A: We are not selling the cheapest products. Poor quality products are out of Company. Products are positioned to medium to high quality level, so we only select the finest and quality materials for our LED products, such as quality lamps, thicker PCB, Japan-made components etc. Quality has its own price. Some customers have suffered the fast failure after purchase of low quality products from other competitors.
Please send us your inquiry if you are interested in our products.
