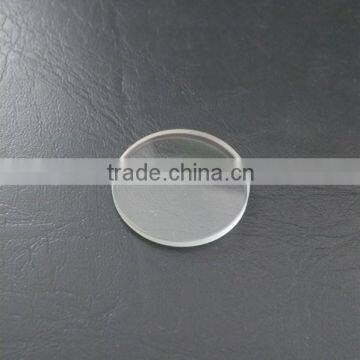

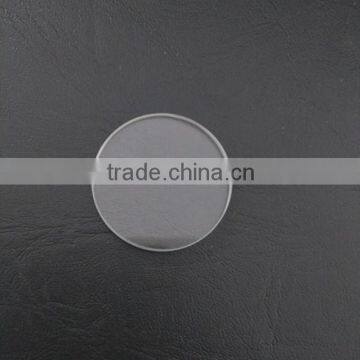

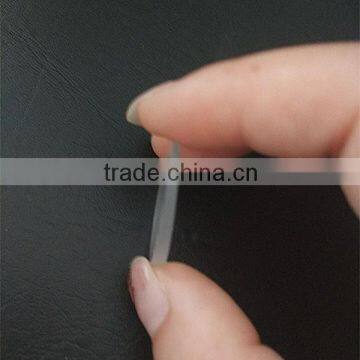

Help CenterOptical Sapphire or Fused Silica Glass Wedge Window
Related Products
1> ofession team: We have an excellent team, continue to provide qualit yservices.
2> Globle market: Our products are applied in many fields, is curently sold in Sotheast Asia, North Amercia, Europe and other regions and countries.
3> OEM/ ODM: We can according to the different needs with customized services.
4> Service Department: We have a complete after-sales service system, to help you from your worries.
Sapphire Window
Sapphire Window has a excellent transmission in range: 180—4500nm. And the reflective index is 1.77 @1000nm. The sapphire part is the best choose to withstand strong pressure in optical system.
High Precision Wedge Window:
Material |
sapphire/ fused silica |
Diameter Tolerance |
+0.00, -0.13 mm |
Thickness Tolerance |
±0.13 mm |
Clear Aperture |
> 85% |
Polished |
Rq0.002 0.002/1 |
Surface Quality |
40-20 scratch and dig |
Flatness |
2(2) |
Coating |
No |
Protective Bevel |
0.25 mm x 45° |
Sapphire Window Standard Products:
Part No. |
Φ (mm) |
T (mm) |
TSW101 |
12.7 |
2.0 |
TSW102 |
25.4 |
3.0 |
Note: Other size and coating are available upon request.
Application:
♦ IR Sensor
♦ Thermal Image
♦ Medical measurement

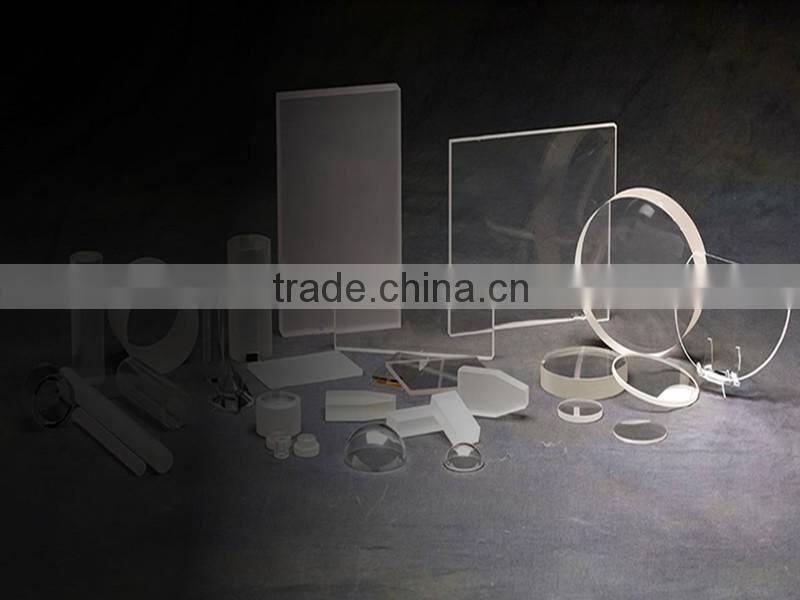

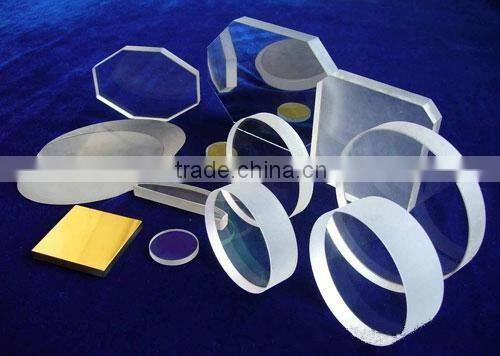

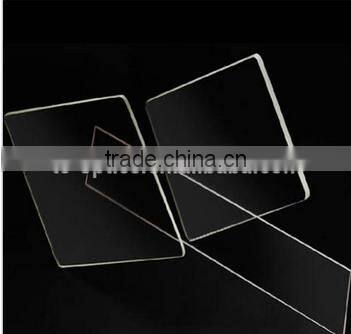

More Optical Windows
Tian Cheng Optics Co., Ltd. is located in Changchun city where is famous base of optics research and development in China, we dedicate to designing and manufacturing high quality precision optical components including Lenses, High Precision Prism, Filter, Window, Beamsplitter, Mirror, Waveplate, Polarizer, Polarization Beamsplitter, Micro optics, they are widely used in industrial application, medical industry, construction, telecommunications, military, environment monitoring, life sciences, public security, aerospace etc. We have built well cooperation with some companies from United Kingdom,Germany, Ireland, Sweden, Australia, Brazil, U.S.A. etc.
1> Package Detail: A. Standard carbon and envelop with plastic foam.
B. Safety green carton.
C. Customized.
2> Delivery Detail: Within 20 days.(Also depand on the quantity)
1> Q: Where is your factory located ? How can I visit there ?
A: Our factory is located in Chaoyang district Changchun city Jilin province China, about 3 hours bus ride from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us !
2> Q: What's the material of your products ?
A: The material is optical glass and plastic .
3> Q: If I place an order now, how long would it be before I got delivery ?
A: It would largely depend on the size of the order and the items you want .
4> Q: How can I get some samples ?
A: We are honored to offer you free samples.
