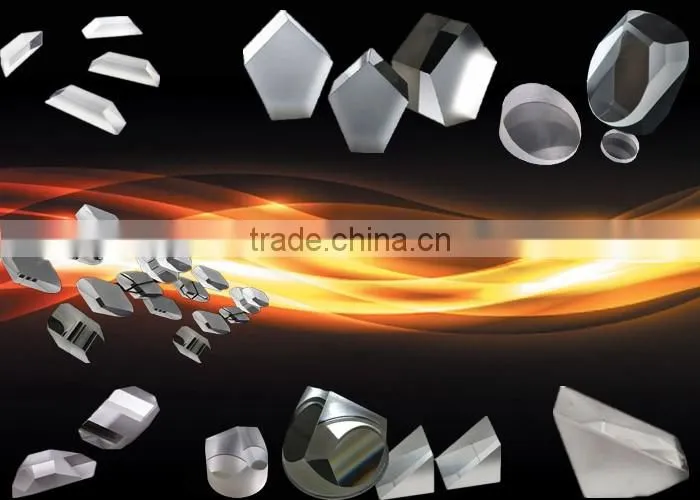

customized optical usage penta prism glass
- 8000 Piece / Pieces per Month
- Changchun
- T/T Credit Card
- high quality prisms optical fused silica quartz glass dove prism manufacturer With Ar Coated
- Hot selling optical glass cube x- cube colored glass prism
- Manufacturer Triangular Prism Customized Reflective Prisma Optical Glass Right Angle Prism for Optical Instruments and Imaging
- Optical Integrators Machining Custom Microarrays Compound Eye Lenses
- Prisms transparent optical glass BK7 K9 BSC7
- High quality custom optical lens fly eye lens
Product Details
Place of Origin: | Jilin, China | Brand Name: | Tiancheng | Model Number: | BK7 |
Material: | Optical Glass | Surface Quality: | 60/40 | Dimension Tolerance: | ±0.1 mm |
Angle Tolerance: | Customers' Requirments | Flatness: | lamda/2 (@) 632.8 nm |
Product Description
Our advantage:
1> Profession team: We have an excellent team, continue to provide qualit yservices.
2> Globle market: Our products are applied in many fields, is curently sold in Sotheast Asia, North Amercia, Europe and other regions and countries.
3> OEM/ ODM: We can according to the different needs with customized services.
4> Service Department: We have a complete after-sales service system, to help you from your worries.
Optical Penta prism glass
For penta prism, the deviation angle of 90° is independent of the orientation of the prism, thus it is particularly important and wide in application which the prism orientation cannot be precisely controlled. We can supply high dimension and angle control penta prism. The coating or painting is designed by customer according to it is detailed application.
Optical Penta prism glass specification:
Material | BK7 grade A optical glass |
Dimension (h) Tolerance | ±0.1 mm |
Dimension (A) Tolerance | ±0.2 mm |
Clear Aperture | >80% |
Surface Quality | 60-40 scratch and dig |
90° Deviation Tolerance: | < 30 arc sec., up to 5 arc sec. |
Flatness: | λ/2 at 632.8 nm(Standard), up to λ/4 @632.8 nm |
Reflectivity | R>95% per face @630-680 nm |
Protective Bevel | 0.25 mm x 45° |
The customized optical Penta prism glass is welcomed.
Other more optical glass prism
1> Projection Optical System
Tian Cheng Optics Co., Ltd. is located in Changchun city where is famous base of optics research and development in China, we dedicate to designing and manufacturing high quality precision optical components including Lenses, High Precision Prism, Filter, Window, Beamsplitter, Mirror, Waveplate, Polarizer, Polarization Beamsplitter, Micro optics, they are widely used in industrial application, medical industry, construction, telecommunications, military, environment monitoring, life sciences, public security, aerospace etc. We have built well cooperation with some companies from United Kingdom,Germany, Ireland, Sweden, Australia, Brazil, U.S.A. etc.
1> Package Detail: A. Standard carbon and envelop with plastic foam.
B. Safety green carton.
C. Customized.
2> Delivery Detail: Within 20 days.(Also depand on the quantity)
1> Q: Where is your factory located ? How can I visit there ?
A: Our factory is located in Chaoyang district Changchun city Jilin province China, about 3 hours bus ride from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us !
2> Q: What's the material of your products ?
A: The material is optical glass and plastic .
3> Q: If I place an order now, how long would it be before I got delivery ?
A: It would largely depend on the size of the order and the items you want .
4> Q: Can I customize production?
A: Yes, customized production is welcomed.
5> Q: How can I get some samples ?
A: We are honored to offer you samples .
