Powell Lens

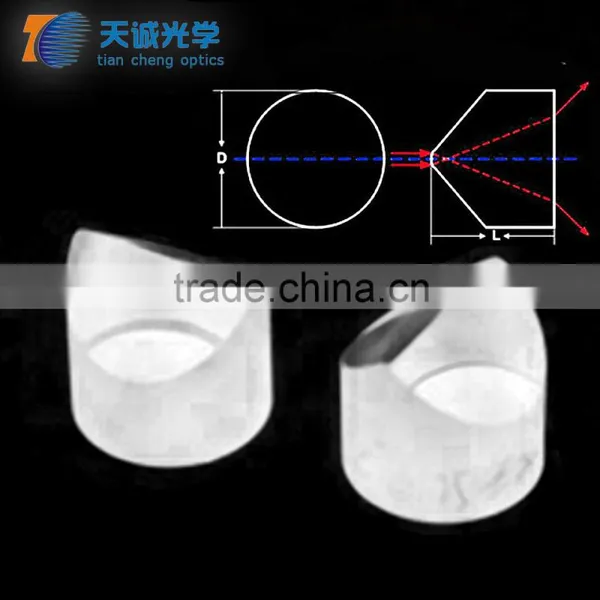

The Powell Lens is one kind of aspheric cylinder lens, which can transform laser beam into a uniform straight laser line.
By using Powell Lens, you will get more even energy distribution along the laser line than using the rod lenses and lenses. They outperform cylindrical lenses that generate Gaussian beam profiles with hot-spot center points and fading edges.
Fan angle |
Materials |
Wavelength(nm) |
Input beam(mm) |
5° |
BK7 |
532,650, |
0.8-1,2-3,5 |
10° |
BK7 |
532,650 |
0.8-1,2-3,5 |
30° |
BK7 |
532,650 |
0.8-1,2-3,5 |
45° |
SF6 |
532,650 |
0.8-1,2-3,5 |
53° |
BK7 |
532,650 |
0.8-1,2-3,5 |
60° |
SF6 |
532,650 |
0.8-1,2-3,5 |
70° |
SF6 |
532,650 |
0.8-1,2-3,5 |
85° |
SF6 |
532,650 |
0.8-1,2-3,5 |
90° |
SF6 |
532,650 |
0.8-1,2-3,5 |
110° |
SF6 |
532,650 |
0.8-1,2-3,5 |
120° |
SF6 |
532,650 |
0.8-1,2-3,5 |
Packing detail:
3~5 layer standard carbon and envelop with plastic foam.
Or Customized design Packing carton.
Shipping methods:
By express,safe and fast
Tian Cheng Optics Co., Ltd. is located in Changchun city where is famous base of optics research and development in China, we dedicate to designing and manufacturing high quality precision optical components including Lenses, High Precision Prism, Filter, Window, Beamsplitter, Mirror, Waveplate, Polarizer, Polarization Beamsplitter, Micro optics, they are widely used in industrial application, medical industry, construction, telecommunications, military, environment monitoring, life sciences, public security, aerospace etc. We have built well cooperation with some companies from United Kingdom,Germany, Ireland, Sweden, Australia, Brazil, U.S.A. etc.
