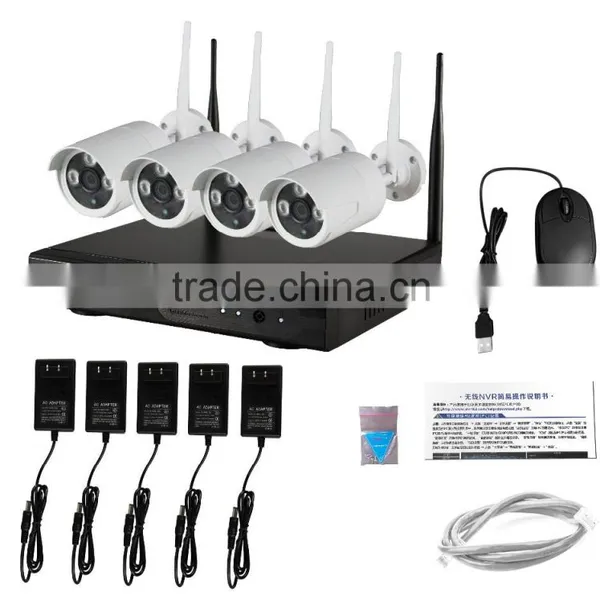

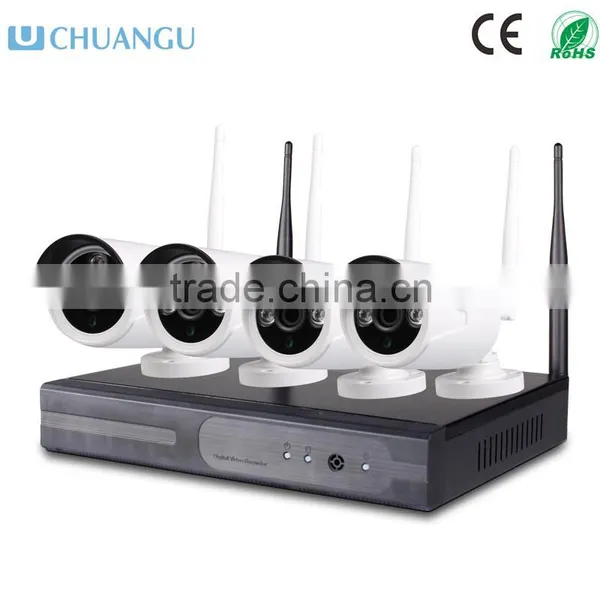

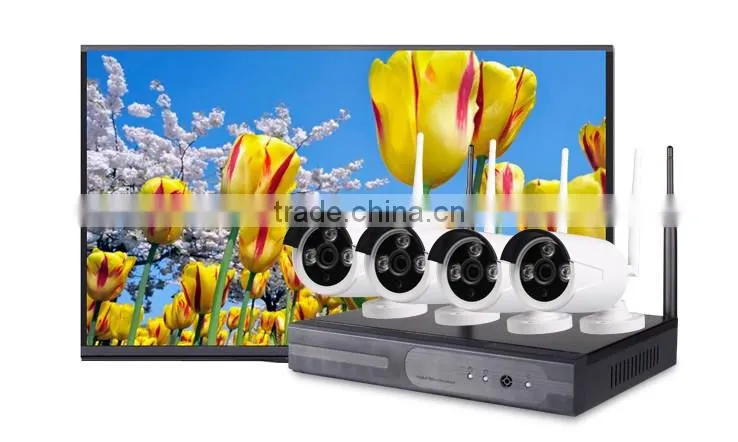

2016 new technology 4CH wireless outdoor ip camera kits
Specifications & Features
1. 720/960P Wireless Kit, 4CH/8CH Wifi Kit
2. Signal strong and Transmission Range 300 Meters , Across 4 Wall.
3. Intelligent adjust stream, Anti sticking and Anti lose image.
4. Professional Wifi module, Wireless and Wired 2 in 1.
5. Auto connection camera , No need setting.
6. Easy install , With 3 meters power cable.
Wireless NVR Specification | |||||||
Item |
Model |
UCG-ip camera |
|||||
Firmware |
Operating System |
Embedded Linux OS |
|||||
|
AV CODEC Specification |
Video Resolution |
720P |
960P |
1080P |
|||
synch-playback |
4CH |
4CH |
1CH |
||||
|
AV (audio/video) input |
Network Video |
4CH |
|||||
|
Network video input |
20Mbps |
||||||
Audio Bitrate |
64Kbps |
||||||
AV (audio/video) output |
HDMI output |
1ch |
|||||
VGA output |
1ch |
||||||
Video Control |
Video/Capture mode |
Manual,Time,Motion,Alarm |
|||||
Playback mode |
Real time,Routine,Event |
||||||
Backup |
USB backup |
||||||
Alarm |
Alarm Input |
4ch (optional) |
|||||
Alarm Output |
1ch (optional) |
||||||
Hard Disk |
Type |
1*SATA interface |
|||||
Max Capacity |
4 TB at most for each |
||||||
External Interface |
Network Interface |
1 adaptable RJ45 10M/100M, 1 WIFI interface |
|||||
USB Interface |
2 USB 2.0 |
||||||
Wifi Moudle |
Frequency |
2.4G |
5.8G |
||||
Network Control |
Protocol |
UPNP (play & plug)/SMTP (email service)/PPPoE (dial-up) DHCP (Automatically obtain an IP address) |
|||||
Others |
Power Supply |
DC12V3A |
|||||
Power Consumption |
≤5W(Without HDD) |
||||||
Operate Temperature |
-10°C~55°C |
||||||
Working Humidity |
10%~90% |
||||||
Size |
257mm(W)×210mm(V)×45mm(H) |
||||||
Weight |
≤1Kg |
||||||
Wireless IPC Specification | |||||||
Technical Parameters |
Model |
PE2010 |
PE2013 |
PE2020 |
|||
|
Wireless IPC quantity |
4pcs |
||||||
Sensor |
OV9712 |
AR0131 |
OV2710 |
||||
Signal System |
PAL/NTSC |
||||||
Resolution |
720P |
960P |
1080P |
||||
Minimum illumination |
Color: 0.1 Lux; B/W: 0.01 Lux |
||||||
Shutter |
1/25s to 1/25,000s |
||||||
Lens |
4mm |
||||||
OSD |
Date Time & Title |
||||||
White Balance |
Auto |
||||||
Day & Night |
Auto / Color / BW |
||||||
3D-DNR |
Auto |
||||||
Mirror/Flip |
On / Off |
||||||
Frame Specification |
Three Streaming at the Same Time: |
||||||
S/N |
> 39.1 Db |
||||||
General Specification |
Interface |
RJ45 / WIFI 802.11b/g/n |
|||||
Anti-thunder Level |
Standard IEC61000-4-5 |
||||||
Working Temperature/Humidity |
-10°Cto +50°C / 30% to 80% RH |
||||||
Working Temperature/Humidity |
-20°C to +60°C / 20% to 90% RH |
||||||
Power Input |
DC12V-1A |
||||||
Power consumption |
≤6W |
||||||
Size |
205(L)×70(W)×55 (H)mm |
||||||
Weight |
500g |
||||||
|
Level of Protection |
IP66 |
||||||
Q: How long is the warranty?
A: 2 -years-warranty since delivered out.
Q: How long is the delivery time?
A: Sample order 3-5 working days, bulk order 7-15 working days.
Q:can you put my logo, model.. etc on products and packaging?A:yes, and we can also help you design the package if you need.
