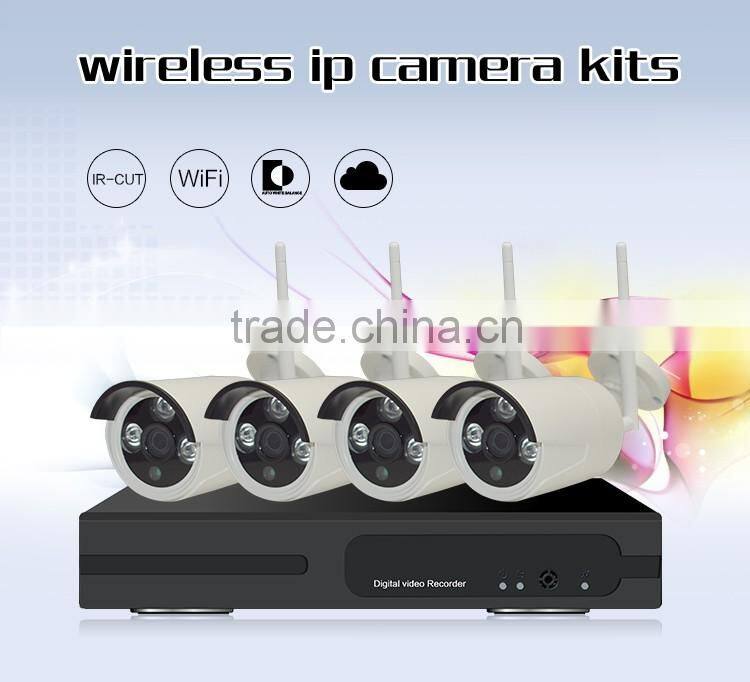

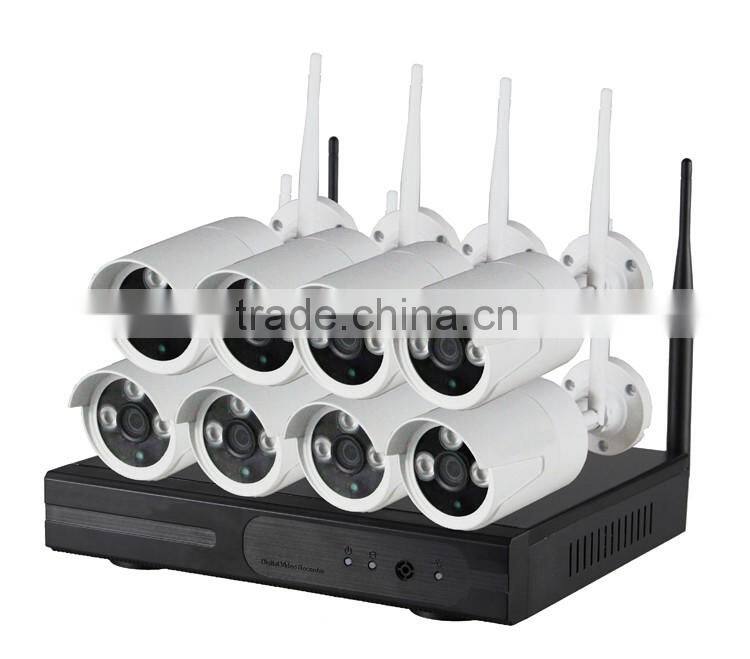

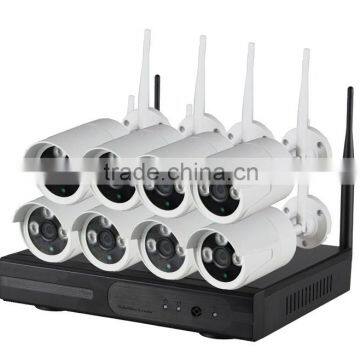

Wifi ip Camera Wireless Outdoor Surveillance Camera 8ch Nvr Wireless Kit

Wireless NVR Specification

Item

Model

UCG-ip camera

Firmware

Operating System

Embedded Linux OS

AV CODEC

Specification

Video Resolution

720P

960P

1080P

synch-playback

4CH

4CH

1CH

AV

(audio/video)

input

Network Video

4CH

Network

video input

20Mbps

Audio Bitrate

64Kbps

AV (audio/video) output

HDMI output

1ch

VGA output

1ch

Video Control

Video/Capture mode

Manual,Time,Motion,Alarm

Playback mode

Real time,Routine,Event

Backup

USB backup

Alarm

Alarm Input

4ch (optional)

Alarm Output

1ch (optional)

Hard Disk

Type

1*SATA interface

Max Capacity

4 TB at most for each

External Interface

Network Interface

1 adaptable RJ45 10M/100M, 1 WIFI interface

USB Interface

2 USB 2.0

Wifi Moudle

Frequency

2.4G

5.8G

Network Control

Protocol

UPNP (play & plug)/SMTP (email service)/PPPoE (dial-up) DHCP (Automatically obtain an IP address)

Others

Power Supply

DC12V3A

Power Consumption

≤5W(Without HDD)

Operate Temperature

 -10°C~55°C

Working Humidity

10%~90%

Size

257mm(W)×210mm(V)×45mm(H)

Weight

≤1Kg

Wireless IPC Specification

Technical Parameters

Model

PE2010

PE2013

PE2020

Wireless

IPC quantity

4pcs

Sensor

OV9712

AR0131

OV2710

Signal System

PAL/NTSC

Resolution

720P

960P

1080P

Minimum illumination

Color: 0.1 Lux;  B/W: 0.01 Lux

Shutter

1/25s to 1/25,000s

Lens

4mm

OSD

Date Time & Title

White Balance

Auto

Day & Night

Auto / Color / BW

3D-DNR

Auto

Mirror/Flip

On / Off

Frame Specification

Three Streaming at the Same Time:
H.264 128x720@30fps or below
H.264 640x480@30fps or below

S/N

> 39.1 Db

General Specification

Interface

RJ45 / WIFI 802.11b/g/n

Anti-thunder Level

Standard IEC61000-4-5

Working Temperature/Humidity

 -10°Cto +50°C / 30% to 80% RH

Working Temperature/Humidity

 -20°C to +60°C / 20% to 90% RH

Power Input

DC12V-1A

Power consumption

≤6W

Size

205(L)×70(W)×55 (H)mm

Weight

500g

Level of

Protection

IP66
