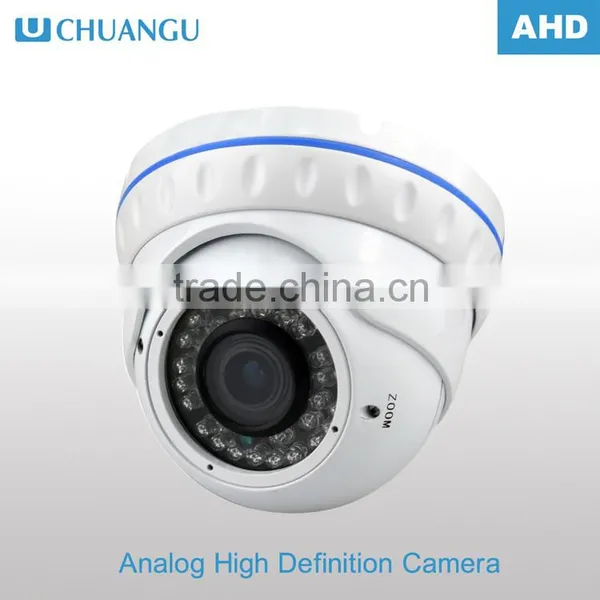

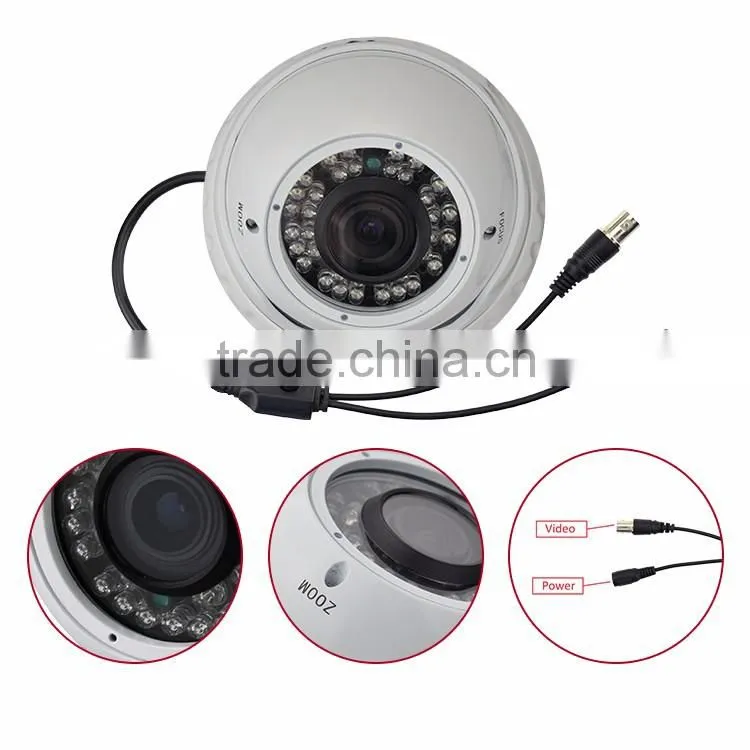

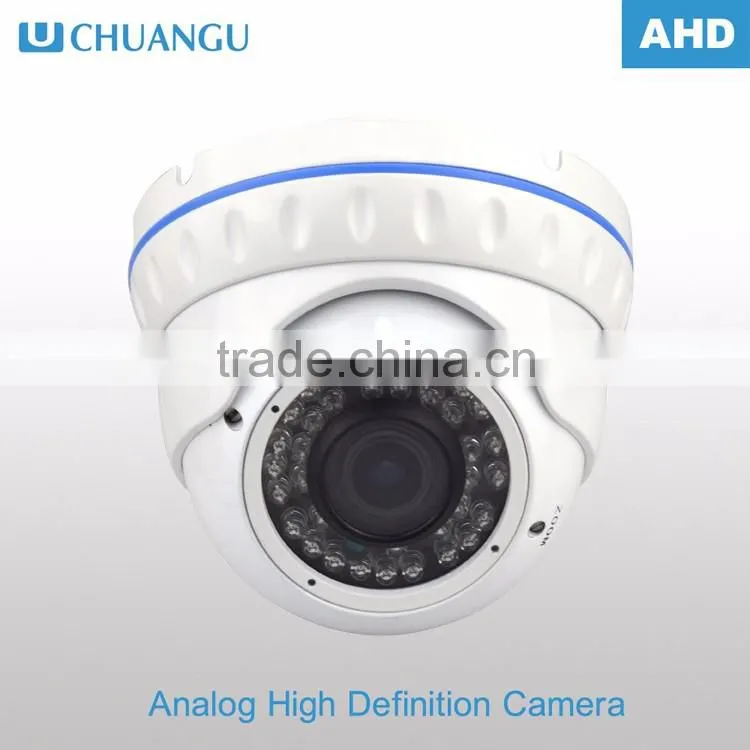

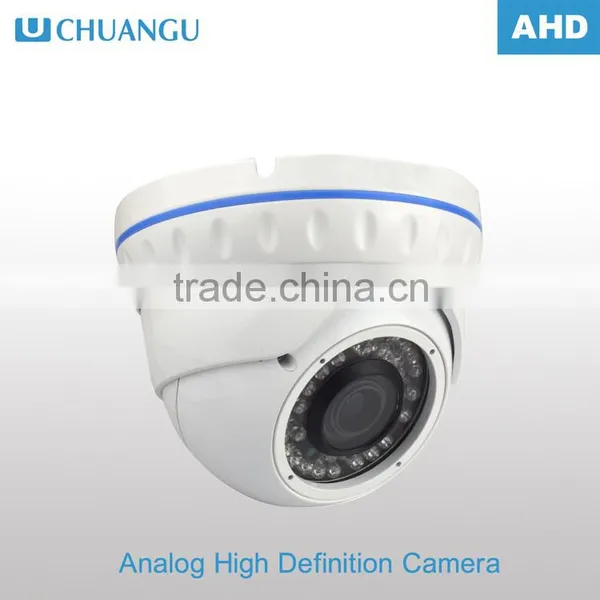

Dome Style Indoor Metal 1080P Varifocal Lens Camera SONY CMOS IR-CUT AHD Camera

Name: Dome Style Indoor Metal 1080P Varifocal Lens Camera SONY CMOS IR-CUT AHD Camera
Brand: UCHUANGU
SKU: 121677911

US$ 33.9 - 34.9 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

UCHUANGU

Model Number:

UCG-AHD200390

Shenzhen Uchuangu Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN YANTIAN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name UCHUANGU

Model Number UCG-AHD200390

Type Analog Camera

Style Dome Camera

Sensor CMOS

Technology Infrared

Special Features Vandal-proof

Dome Style Indoor Metal 1080P Varifocal Lens Camera SONY CMOS
IR-CUT AHD camera

Product Description

AHD is innovative technology which is able to reach HD performance like HD-SDI.

AHD is the abbreviation for Analog High Definition.

Features

Support IR-CUT

Support for OSD menu options

The transmission distance is 500 meters;

2.8-12mm varifocal lens

36pcs φ5 IR LED

IR Distance 30m
Metal Housing

Waterproof IP65

Specification

Model No.	UCG-AHD200390
Image Sensor	1/3" SONY CMOS, 1080P , 2.0M Pixel
DSP+CCD	nextchip 2441H+IMX322
Effective Pixels	PAL/NTSC: 1920*1080
Scanning System	NTSC: 525 lines, 60 fields/sec PAL: 625 lines, 50 fields/sec
Sync System	Internal
MIN Illumination	0.01 Lux / F1.2(0Lux/IR ON)
S/N Ratio	52dB (AGC OFF)
Gamma Correction	0.45
Electronic Shutter	NTSC: 1/30~1/50,000 sec PAL: 1/25~1/50,000 sec
OSD	Support
White Balance	AWB/ATW/AWC/INDOOR/OUTDOOR/MANUAL
Gain Control	0-15
BLC	BLC/HSBLC/OFF
DNR	2DNR, 3DNR
DWDR	ON/OFF/AUTO
Day/Night	Auto/B&W/Color/EXT
Mirror	ROTATE/OFF/MIRROR/V-FLIP
NEG. IMAGE	ON/OFF
CAM TITLE	ON/OFF
DEFECT	ON/OFF
Motion Detection	ON/OFF(4 Programmable Zone)
Privacy	ON/OFF(4 Programmable Zone)
OSD Language	ENG,GER,FRA,ITA,SPA,POL,RUS,POR,NED,TUR,CH1,CH2
IR LED	36pcs φ5 IR LED
Video Output	AHD
IR Distance	30m
Lens	2.8-12mm Lens
Operation Temperature	-20 °C ~ 50°C
Operational Humidity	Within 95%RH
Material	Metal
