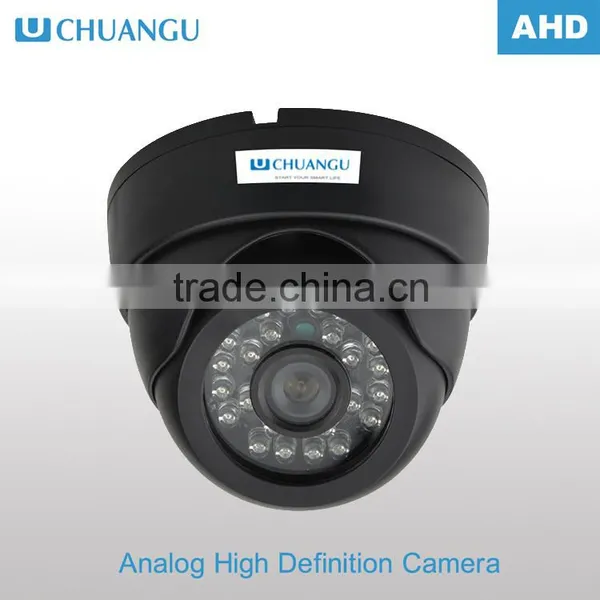

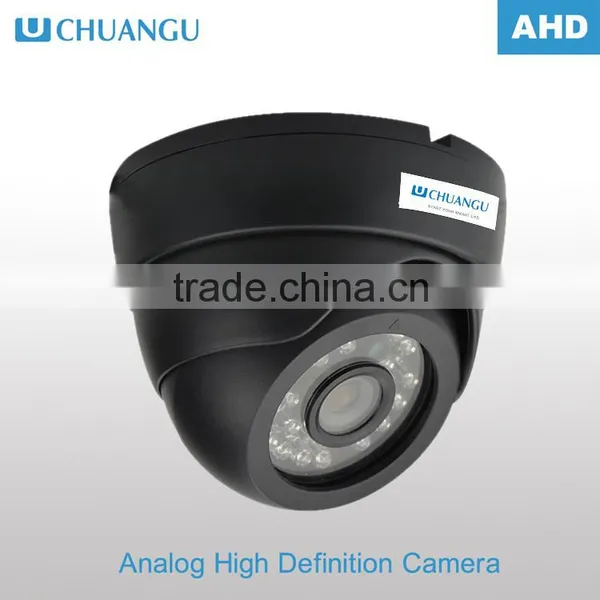

2016 Best Selling 2.0Megapixel security camera metal CMOS analog dome security AHD camera H.264 security camera
AHD is innovative technology which is able to reach HD performance like HD-SDI.
AHD is the abbreviation for Analog High Definition.
Features
Support IR-CUT
Support for OSD menu options
The transmission distance is 500 meters
3.6mm or 6mm lens for option
24pcs φ5 IR LED
IR Distance 20m
Metal Housing
Specification
Model No. |
UCG-AHD200320 |
Image Sensor |
1/3" SONY CMOS, 1080P 2.0M Pixel |
DSP+CCD |
Nextchip 2441H+IMX322 |
Effective Pixels |
PAL/NTSC: 1944*1092 |
Scanning System |
NTSC: 525 lines, 60 fields/sec |
Sync System |
Internal |
MIN Illumination |
0.03 Lux / F1.2(0Lux / IR ON) |
S/N Ratio |
52dB (AGC OFF) |
Gamma Correction |
0.45 |
Electronic Shutter |
NTSC: 1/30~1/50,000 sec |
OSD |
Support |
White Balance |
AWB/ATW/AWC/INDOOR/OUTDOOR/MANUAL |
Gain Control |
0-15 |
BLC |
BLC/HSBLC/OFF |
DNR |
2DNR, 3DNR |
DWDR |
ON/OFF/AUTO |
Day/Night |
Auto/B&W/Color/EXT |
Mirror |
ROTATE/OFF/MIRROR/V-FLIP |
NEG. IMAGE |
ON/OFF |
CAM TITLE |
ON/OFF |
DEFECT |
ON/OFF |
Motion Detection |
ON/OFF(4 Programmable Zone) |
Privacy |
ON/OFF(4 Programmable Zone) |
OSD Language |
ENG,GER,FRA,ITA,SPA,POL,RUS,POR,NED,TUR,CH1,CH2 |
IR LED |
24pcs φ5 IR LED |
Video Output |
AHD |
IR Distance |
20m |
Lens |
3.6/6mm Lens for optional |
Operation Temperature |
-20 °C ~ 50°C |
Operational Humidity |
Within 95%RH |
Material |
Metal |
Product Derails
Packing Weight: 0.38kg
Packing: 48pcs/ctn
G.W.: 19.28kg
Carton Size: 51*42*47cm
products manufacturing
24 hours online technical support
customised product sourcing
free technical training
2 years product warranty after-sale service
1% of spare parts for you, in case of broken during shipping
Shenzhen Uchuangu Technology Co., Ltd. is a professional manufacturer of security systems, surveillance cameras, home security alarms, IP cameras and perimeter security systems. Uchuangu has been in line of security alarm systems for 5 years. For now, it has built itself R&D, factory, sales after service team and technical support. Our mission is “small cost, big value” for customs.
Q: How long is the warranty?
A: 2 -years-warranty since delivered out.
Q: How long is the delivery time?
A: Sample order 3-5 working days, bulk order 7-15 working days.
Q:can you put my logo, model.. etc on products and packaging?A:yes, and we can also help you design the package if you need.
Q: Why do you choose us?
A: Choose UCHUANGU; Choose a qualified CCTV Products manufacturer!
We will try our best to find the products you need, we will provide you with the most satisfactory service.
If you want to know more, You can contact us. We also welcome you to visit our factory in Shenzhen.
