Help Center1.0MP 720P Analog High Definition Waterproof CCTV Camera Over 500m Transmission Distance
Related Products
-
720P/960P/1080P High Definition Analog CCTV Camera, 1.0 Megapixel and 1.3 Megapixel AHD Camera, 1.0mp/1.3mp AHD CCTV CameraUS$ 12 - 25MOQ: 50 Pieces -
960P High Definition Analog CCTV Camera, 1.3 Megapixel AHD Camera, 1.3mp AHD CCTV CameraUS$ 20.9 - 28.9MOQ: 1 Piece
-
Night Vision 720P HD AHD Camera 2.8-12mm Varifocal Lens Metal Waterproof CCTV Surveillance CameraUS$ 29.9 - 33.9MOQ: 1 Piece
-
2016 New Product 2.0 Megapixel Cctv Camera IR-CUT AHD Camera H.264 Night Vision Cctv CameraUS$ 30.9 - 33.9MOQ: 10 Pieces
-
2016 New Product 1.3MP/960P Waterproof Camera SONY CMOS Chipset AHD Camera Support OSD OutdoorUS$ 27.9 - 30.9MOQ: 10 Pieces

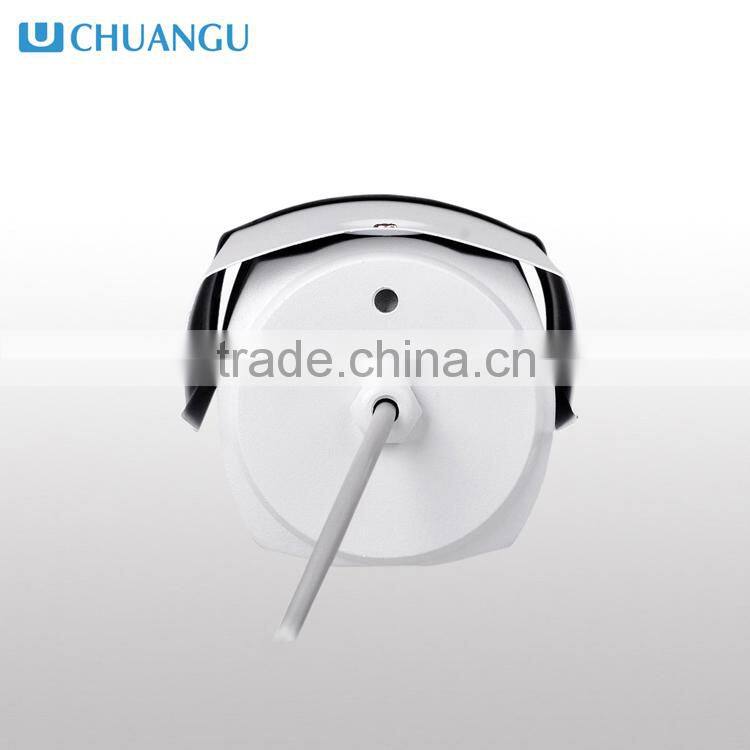

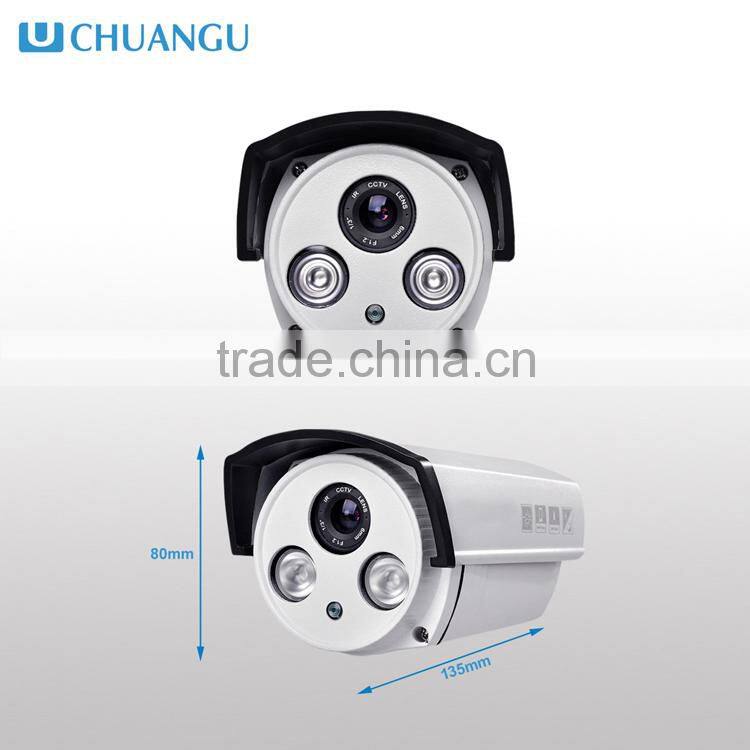

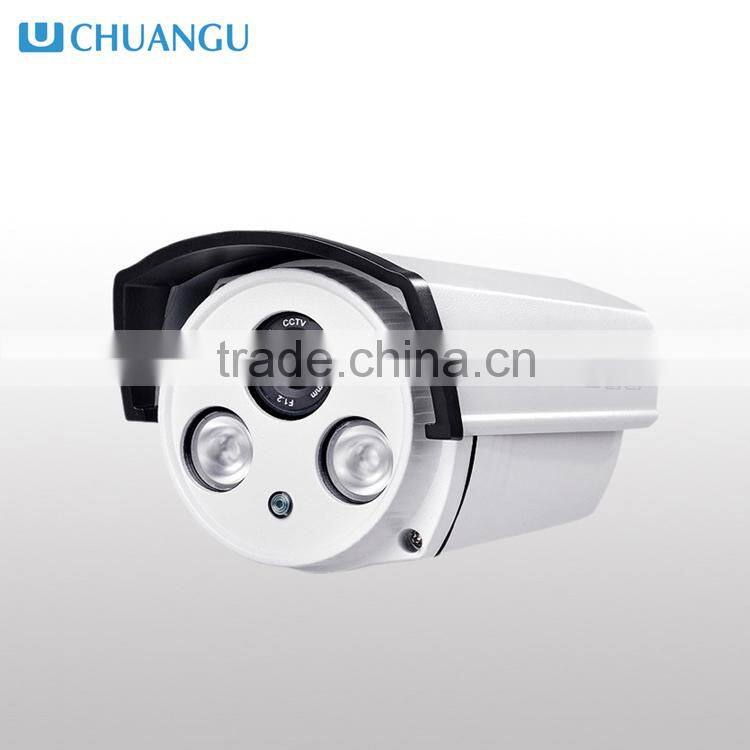

1.0Megapixel 720P 50M IR Waterproof IP Camera
Specifications
1/4" 1.0Megapixel CMOS
25/30fps at 720P/960P, Built-in IR Cut
High speed, long distance real-time transmission over 500m
4/6/8mm Lens
2pcs array IR LED
IR Distance 60m
IP 66 waterproof
Metal
Support OSD
Features
Analog HD Camera, AHD Technology
720P/960P/1080P@25/30fps,
High speed, long distance real-time transmission over 500m via coxial cable
Day/Night(ICR), AWB, AGC, BLC, 2D-DNR
Built-in IR Cut,Smart IR, DC12V
Parameters
Model |
YCG-HK9002A1 |
||
Image Sensor |
1/4" COMS,1.0M Pixel |
1/3" Sony COMS 1.3M Pixel |
|
DSP+CCD |
Nextchip 2431H+OV9712 |
Nextchip 2431H+AR0131 |
Nextchip 2431H+SONY225 |
Effective Pixels |
PAL/NTSC: 1280*720 |
PAL/NTSC: 1280*960 |
|
Scanning System |
NTSC: 525 lines, 60 fields/sec |
||
Sync System |
Internal |
||
MIN Illumination |
0.1 Lux / F1.2(0Lux / IR ON) |
0.03 Lux / F1.2(0Lux / IR ON) |
0.01 Lux / F1.2(0Lux/IR ON) |
S/N Ratio |
52dB (AGC OFF) |
||
Gamma Correction |
0.45 |
||
Electronic Shutter |
NTSC: 1/30~1/50,000 sec |
||
OSD |
Support |
||
White Balance |
AWB/ATW/AWC/INDOOR/OUTDOOR/MANUAL |
||
Gain Control |
0-15 |
||
BLC |
BLC/HSBLC/OFF |
||
DNR |
2DNR, 3DNR |
||
DWDR |
ON/OFF/AUTO |
||
Day/Night |
Auto/B&W/Color/EXT |
||
Mirror |
ROTATE/OFF/MIRROR/V-FLIP |
||
NEG. IMAGE |
ON/OFF |
||
CAM TITLE |
ON/OFF |
||
DEFECT |
ON/OFF |
||
Motion Detection |
ON/OFF(4 Programmable Zone) |
||
OSD Language |
ENG,GER,FRA,ITA,SPA,POL,RUS,POR,NED,TUR,CH1,CH2 |
||
IR LED |
30pcs φ5 IR LED |
||
Video Output |
AHD |
||
IR Distance |
60m |
||
Lens |
4/6/8mm Lens |
||
Operation Temperature |
-20 °C ~ 50°C |
||
Operational Humidity |
Within 95%RH |
||
Material |
Metal |
||
Product Derails
products manufacturing
24 hours online technical support
customised product sourcing
free technical training
2 years product warranty after-sale service
1% of spare parts for you, in case of broken during shipping
Q: How long is the warranty?
A: 2 -years-warranty since delivered out.
Q: How long is the delivery time?
A: Sample order 3-5 working days, bulk order 7-15 working days.
Q: Why do you choose us?
A: Choose UCHUANGU; Choose a qualified CCTV Products manufacturer!
We will try our best to find the products you need, we will provide you with the most satisfactory service.
If you want to know more, You can contact us. We also welcome you to visit our factory in Shenzhen.
