2mp AHD Camera Cctv Camera System AHD Cctv Security Camera System

Name: 2mp AHD Camera Cctv Camera System AHD Cctv Security Camera System
Brand: UCHUANGU/OEM
SKU: 121677487

US$ 23 - 28 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

UCHUANGU/OEM

Model Number:

UCG-AHD200731

Shenzhen Uchuangu Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

YANTIAN SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name UCHUANGU/OEM

Model Number UCG-AHD200731

Type Analog Camera

Style Bullet Camera

Sensor CMOS

Technology Infrared

Special Features Waterproof / Weatherproof

2mp AHD camera cctv camera system AHD cctv security camera system

Product Description

AHD is innovative technology which is able to reach HD performance like HD-SDI.

AHD is the abbreviation for Analog High Definition.

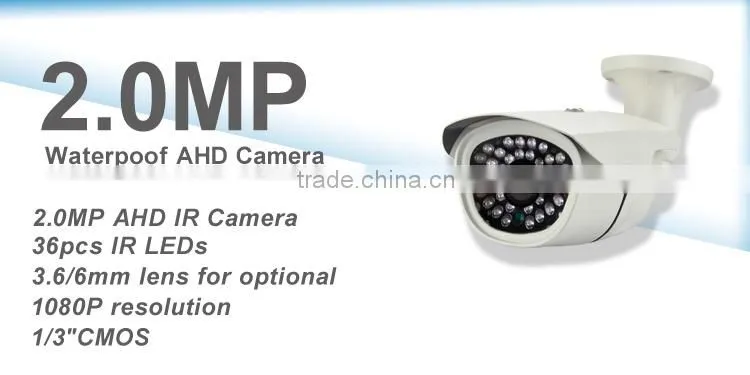

Features

Support IR-CUT

Support for OSD menu options

The transmission distance is 500 meters;

3.6mm or 6m fixed lens for option

36pcs φ5 IR LED
IR Distance 30m
Metal Housing

Waterproof IP66

With Bracket

Specification

Model No.	UCG-AHD200731
Image Sensor	1/3" SONY CMOS, 1080P 2.0M Pixel
DSP+CCD	Nextchip 2441H+IMX322
Effective Pixels	PAL/NTSC: 1280*720
Scanning System	NTSC: 525 lines, 60 fields/sec PAL: 625 lines, 50 fields/sec
Sync System	Internal
MIN Illumination	0.03 Lux / F1.2(0Lux / IR ON)
S/N Ratio	52dB (AGC OFF)
Gamma Correction	0.45
Electronic Shutter	NTSC: 1/30~1/50,000 sec PAL: 1/25~1/50,000 sec
OSD	Support
White Balance	AWB/ATW/AWC/INDOOR/OUTDOOR/MANUAL
Gain Control	0-15
BLC	BLC/HSBLC/OFF
DNR	2DNR, 3DNR
DWDR	ON/OFF/AUTO
Day/Night	Auto/B&W/Color/EXT
Mirror	ROTATE/OFF/MIRROR/V-FLIP
NEG. IMAGE	ON/OFF
CAM TITLE	ON/OFF
DEFECT	ON/OFF
Motion Detection	ON/OFF(4 Programmable Zone)
Privacy	ON/OFF(4 Programmable Zone)
OSD Language	ENG,GER,FRA,ITA,SPA,POL,RUS,POR,NED,TUR,CH1,CH2
IR LED	36pcs IR LEDs
Video Output	AHD
IR Distance	30m
Lens	3.6mm or 6mm lens for option
Operation Temperature	-20 °C ~ 50°C
Operational Humidity	Within 95%RH
Material	Metal
