Brief introduction
Corelogic can provide the broadest xDSL splitter solution for xDSL communication technology.
CLSJ-XXXJ65 is a highly integrated xDSL over POTS splitter module , which is suitable for KRONE LSA+S2 MDF.
Complies with many kinds of standards.
With high cost performance.
Splitter Performance
Test item |
Condition/Requirement |
Impedance |
600Ω/OptionB |
DC Current |
100mA |
DC series resistance |
≥50 Ω |
Insertion loss /distortion |
1kHz≤1.0dB |
|a(0.2-4kHz)-a(1KHz) |≤1.0dB | |
Return loss |
0.2-2.0kHz ≥18.0dB |
2.0-3.4kHz≥14.0dB | |
xDSL insertion loss |
32-50KHz≤3.0dB |
50-30000KHz≤1.0dB | |
Stop band attenuation |
32-30000KHz≥55.0dB |
Group runtime distortion |
0.2-4.0KHz≤150.0uS |
Unbalance attenuation |
0.05-0.6kHz≥40.0dB |
0.6-3.4kHz≥46.0dB | |
3.4-30kHz≥40.0dB | |
30-1104kHz≥45.0dB | |
1104-30000KHz≥30.0d |
Applied Standards
YD-T 1187-2006
ITU-T G.992.1
ITU-T G.993.2
ETSI TS 101 952-1-1
RoHS compliant
Operation Environment
Temperature:
Operating: -30°C to +70°C
Storage : -40°C to +70°C
Humidity: 0%-80% non-condensing

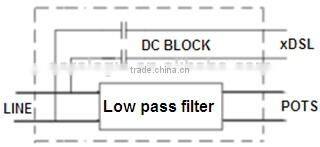

Circuit Diagram

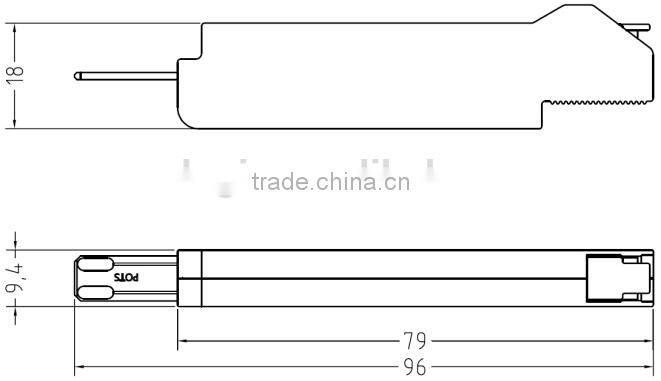

Outline Dimensions
Specifications
1.20Years Experience
2. High Quality& Superior Service
3. Punctual delivery & Reasonabl Price
4. Passed ISO9001,UL,CE
Production Line
Machine and test equipment:
Design concept
It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.
Environmental Guarantee
Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.
After-sale service
Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).
Other Service
We can produce products in your brand according to your request.
If you need more information about it, please send me inquiry, you can get our reply within one day.
