Brief introduction
Corelogic can provide the broadest XDSL splitter solution for XDSL communication technology.
CLSV-329J39 is a highly integrated VDSL2 over POTS splitter.
Complies with many kinds of standards, widely used in Asia Market.
With high cost performance.
Splitter Performance
| Test item | Condition/Requirement |
| Impedance | 600Ω |
| DC Current | 100mA |
| DC series resistance | ≥25 Ω |
Insertion loss /distortion for 600Ω |
1kHz ≤0.3dB a(0.2-4kHz)-a|1KHz|≤1.0dB |
| Return loss for 600Ω | 0.2-2.0kHz ≥18.0dB |
| 2.0-3.4kHz ≥14.0dB | |
Stop Band Attenuation(600Ω) |
30-138KHz ≥34.0dB |
| 138-2208KHz ≥51.0dB | |
| 1-30MHz ≥55.0dB | |
Group runtime distortion |
0.2-4.0KHz≤150.0uS |
Longitudinal Balance |
0.2-3.6kHz ≥55.0dB |
Metering Single pulse |
3dB≤a(16kHz) ≤5dB |
Applied Standards
Application : VDSL2 over POTS CO SPLITTER
Compliance with Standard of ITU-T G.993.2 :
Low Pass Filter & ANNEXURE-1
Satisfy with ITU-T K.20
RoHS compliant
Operation Environment
Temperature:
Operating: -40°C to +70°C
Storage : -40°C to +70°C
Humidity: 0%-100% non-condensing

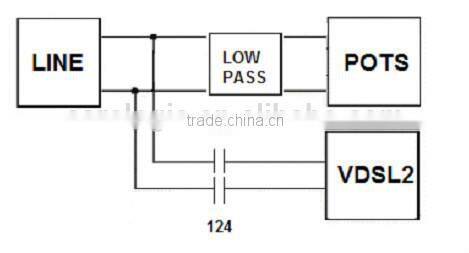

Circuit Diagram

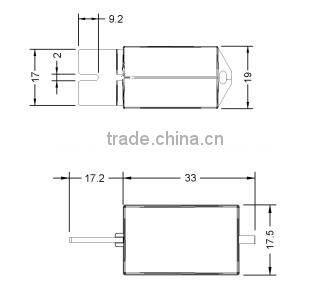

Outline Dimensions
Specifications
1.20Years Experience
2. High Quality& Superior Service
3. Punctual delivery & Reasonabl Price
4. Passed ISO9001,UL,CE
Production Line
Machine and test equipment:
Design concept
It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.
Environmental Guarantee
Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.
After-sale service
Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).
Other Service
We can produce products in your brand according to your request.
If you need more information about it, please send me inquiry, you can get our reply within one day.
