Brief introduction
Corelogic can provide the broadest XDSL splitter solution for XDSL communication technology.

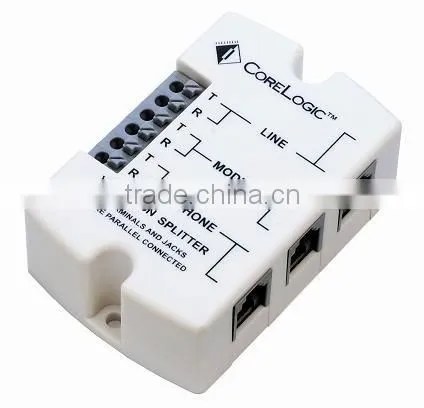

CLSI-027M2 is a highly integrated VDSL2 over ISDN 4B3T splitter. It separates line signal
from subscriber side into ISDN signal and VDSL signal for VDSL modem.
CLSI-027M2 has been designed for both indoor desktop application with three RJ11 ports
(LINE, MODEM, ISDN/POTS) and indoor wall-mounting with two open holes. Moreover, it can be
installed in outdoor small MDF matrix with 6-pole terminal block.
Complies with many kinds of standards, especially for Europe market.
Electrical specification
| Impedances | 150Ω &220Ω +820Ω //115nF | |
Pass band insertion loss for 220Ω +820 |
1KHz | 1.0dB(max) |
| Pass band insertion loss for 150Ω | 0.2-4KHz | ±1.0dB(max) |
| Pass band return loss for 220Ω +820Ω //115nF | 1-60KHz | 1.2dB(max |
| 60-80KHz | 2.0dB(max) | |
| Pass band return loss for 220Ω +820Ω //115nF | 0.6-1.6KHz | 15.0dB(min |
| 0.3-3.4KHz | 12.0dB(min) | |
| Pass band return loss for 150Ω | 1-60KHz | 16.0dB(min) |
| 60-80KHz | 14.0dB(min) | |
| Stop-band Attenuation for 220Ω +820Ω //115nF | 138K-30MHz | 55.0dB(min) |
| Stop-band Attenuation for 150Ω | 138-150KHz | 55.0dB(min) |
| 150-1104KHz | 55.0dB(min) | |
| 1-30MHz | 65.0dB(min) | |
| ADSL insertion loss | 120-170KHz | 3.0dB(max) |
| 170K-30MHz | 1.0dB(max) | |
| DC series resistance | 12.5Ω (max) | |
| DC resistance to earth | 20MΩ (min) | |
DC insulation resistance between A-wire and |
5MΩ (min) | |
| DC feeding current | 0-100mA | |
Standard complied
ITU-T G.992.1 - Annex B Combin
ITU-T G.993.2 - Annex B Combin
ETSI TS 102 080
ETSI TR 101 952-1-4
ITU-T K.21 (2003)
RoHS compliant
Circuit Diagram
Outline Dimensions
Interface definition
| Function | Type | Tip | Ring |
| Line | RJ11 | Pin4 | Pin3 |
ATU-R |
RJ11 | Pin4 | Pin3 |
| Phone | RJ11 | Pin4 | Pin3 |
Specifications
1.20Years Experience
2. High Quality& Superior Service
3. Punctual delivery & Reasonabl Price
4. Passed ISO9001,UL,CE
