Help CenterISDN NT1 Plus Extended ISDN Network Terminal
Related Products
Specifications
Connect CPE device to ISDN BRI NetworkSupport Channel 2B+D loop test
Support Local and Remote power mode, automatically switc

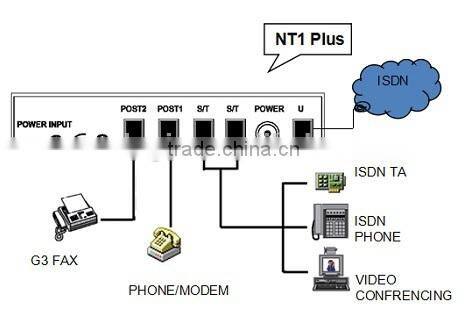

Connect CPE device to ISDN BRI Network
Two analog port support two simultaneous call with CID,
MSN, etc. supplementary service and internal call function.
Adaptive or fied timing Selectable
U interface protects against lighting and power surge
Support Channel 2B+D loop test
Support Local and Remote power mode, automatically switch
U Interface
Standard: ANSI T1.601, ETSI ETR-080, G.961
Line: Two-wire, Full Duplex
Line Code: 2B1Q
Data Rate: 80KBaud
Jack: RJ-45 or RJ-11
S/T Interface
Standard: ANSI T1.605, ETSI ETS300-012,
ITU-T Rec.I.430
Line: Four-Line Full-Duplex
Line Code: AMI
Data Rate: 192Kbps, 144Kbps available for customer
Jack: RJ-45
S/T Port: 2
Termination resistance: 0, 50Ω, 100Ω Optional
POTS Interface
Dialing mode: DTMF
Jack: RJ-11
Port: 2
Operating Environment
Temperature: -5°C-55°C(23℉ -131 ℉ )
Humidity: 0%-100% no condensing
AC/DC Adapter
Input: 220V AC
Output: 42V DC, 10W
Power output: 10W
LED
Status, Power, Local Power
Dimension
200x140x37(mm)
Applications
