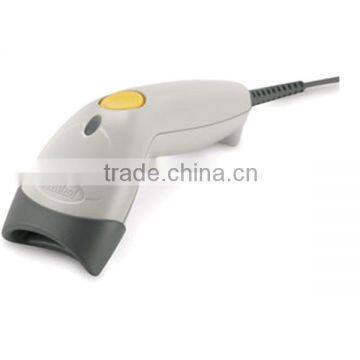

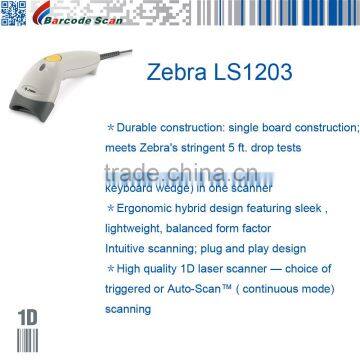

This bi-directional LS1203 handheld scanner handles all 1D bar codes and is ideal for small retailers. It delivers the functionality, features and reliability needed to improve operational efficiencies from the check-out line to the storeroom. It minimizes manual keying — ensuring accuracy in all customer transactions — and it automates paper-based inventory processes. The device easily integrates multiple interfaces to help ensure connectivity to a host and PC system.
Meets 5-ft drop tests, significantly reducing downtime and repair costs.

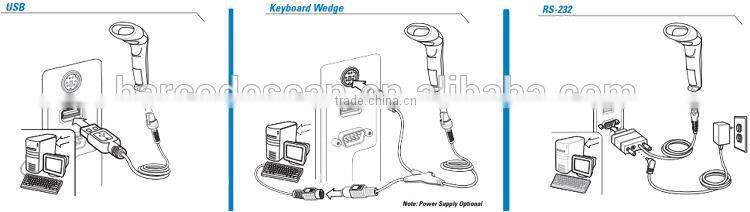

Multiple interfaces: RS232, USB, keyboard wedge (KBW) in one scanner
Simplifies installation and integration, ensuring future compatibility.

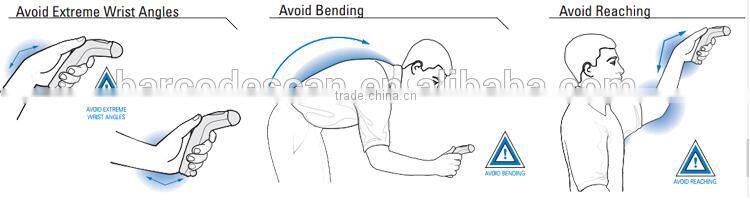

Sleek, lightweight, ergonomic design
Maximizes comfort for all-day use.
Intuitive scanning and plug-and-play capability
Minimizes setup and training time.
Choice of triggered or continuous mode
Ensures versatile, accurate first-time scanning.
Scanner Type |
Bi-directional |
Light Source (Laser) |
650nm laser diode |
Scan Rate |
100 scans per second |
Print Contrast Min |
30% minimum reflectance |
Roll (Tilt) |
1 ± 30° from normal |
Pitch |
2 ± 65° |
Skew (Yaw) |
3 ± 60° |
Decode Capability |
UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5 |
Interfaces Supported |
RS-232; Keyboard Wedge; USB |
Operating Temp |
32° to 122° F/0° to 50° C |
Storage Temp |
-40° to 158° F/-40° to 70° C |
Humidity |
5% to 95% relative humidity, non-condensing |
Drop Specs |
Withstands multiple 5 ft./1.524m drops to concrete |
Ambient Light Immune to direct exposure of normal Immunity |
office and factory lighting conditions, as well as direct exposure to sunlight |
Beeper Volume |
User-selectable: three levels |
Beeper Tone |
User-selectable: three tones |
Electrostatic Conforms to 15 kV air discharge and 8 kV Discharge (ESD) |
of contact discharge |
Electrical Safety |
UL1950, CSA C22.2 No. 950, EN60950/IEC950 |
EMI/RFI |
FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI/MITI/Dentori |
Laser Safety |
IEC Class 1 |
|
