Specifications
1.vicarb heat exchanger plates2green material with RoHs Certification
3.very strict testing for water or gas l
vicarb heat exchanger plates,air to water heat pump,residential air to air heat exchanger
Specification for all heat pump Hxs:
| Size | titanium tube | water inlet and outlet | titanium tube working prssure | PVC shell working pressure | each VOL |
| (CBM) | |||||
| 1/3HP/1/2HP | OD16*0.6mm*L3.3M | 32mm | 3.0Mpa | 0.5Mpa | 0.016 |
| 3/4HP/1HP | OD16*0.6mm*L5.3M | 40mm | 3.0Mpa | 0.5Mpa | 0.028 |
| 1.5HP/2HP | OD16*0.6mm*L9M | 50mm | 3.0Mpa | 0.5Mpa | 0.043 |
| 1HP | OD12.7*0.6mm*L5M | 50mm | 3.5Mpa | 0.4Mpa | 0.016 |
| 1.5HP | OD12.7*0.6mm*L7.5M | 50mm | 3.5Mpa | 0.4Mpa | 0.017 |
| 2HP | OD12.7*0.6mm*L11M | 50mm | 3.5Mpa | 0.4Mpa | 0.017 |
| 3HP | OD12.7*0.6mm*L15.5M | 50mm | 3.5Mpa | 0.4Mpa | 0.021 |
| 5HP | OD19*0.6mm*L20M | 50mm | 3.5Mpa | 0.4Mpa | 0.088 |
| 10HP | OD19*0.6mm*L40M | 50mm | 3.5Mpa | 0.4Mpa | 0.098 |
| 15HP | OD19*1.0mm*L60M | 50mm | 3.5Mpa | 0.4Mpa | 0.199 |
| 20HP | OD19*1.0mm*L80M | 50mm | 3.5Mpa | 0.4Mpa | 0.186 |
| 30HP | OD19*0.55mm*L120M | 50mm | 3.5Mpa | 0.4Mpa | 0.271 |
Remark:1HP=3.5KW 1Mpa=10bar
certification:RoHs
refrigerant:R22 /R134/R407/R41OA .

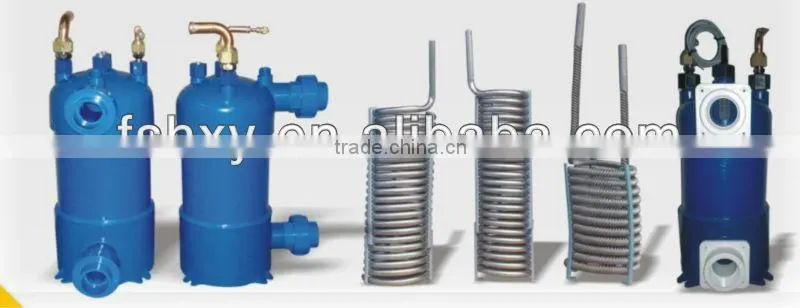

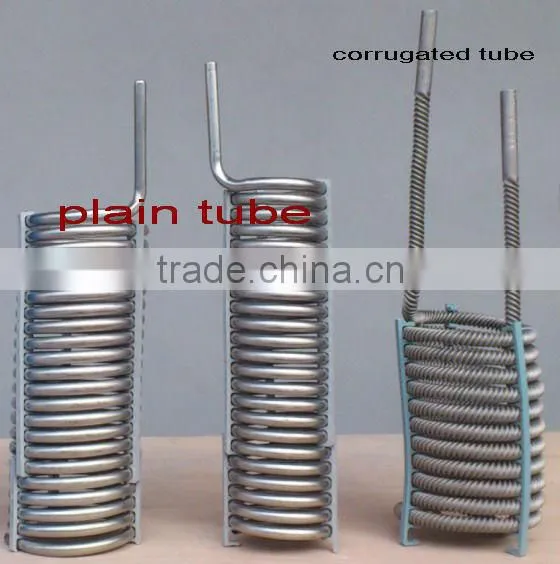

Titanium tube:
| Product detail | |
| inside: titanium coil | |
| titanium tube material | seamless tube--TA1 |
| titanium tube diameter | 12.7mm----30mm(normal use) |
| titanium tube thickness | 0.55mm----3.0mm(normal use) |
| outside: PVC case | |
| PVC cover material | enviromental protection |
| PVC tube diameter | OD110mm----OD400mm |
| PVC tube thickness | 2.7mm----15.3mm |
| connection | |

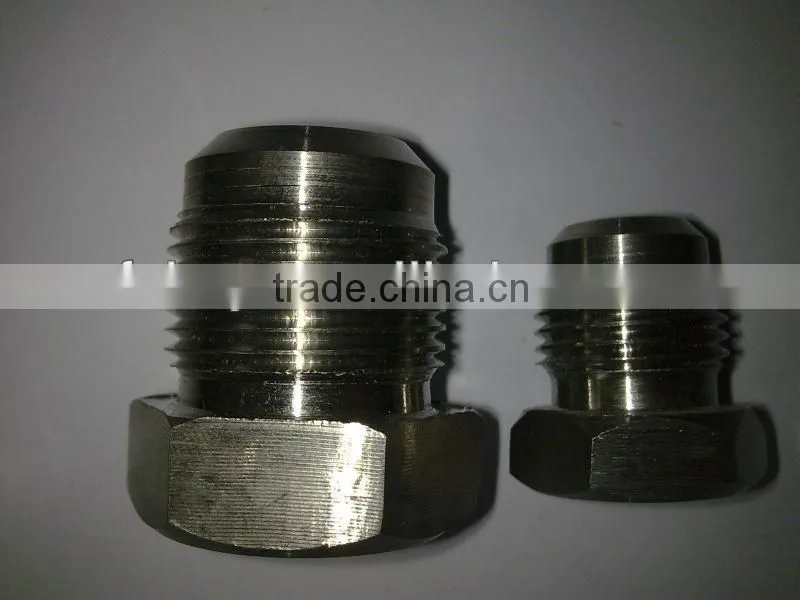

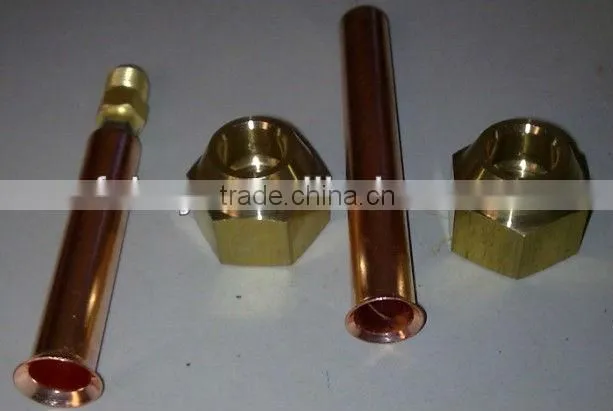

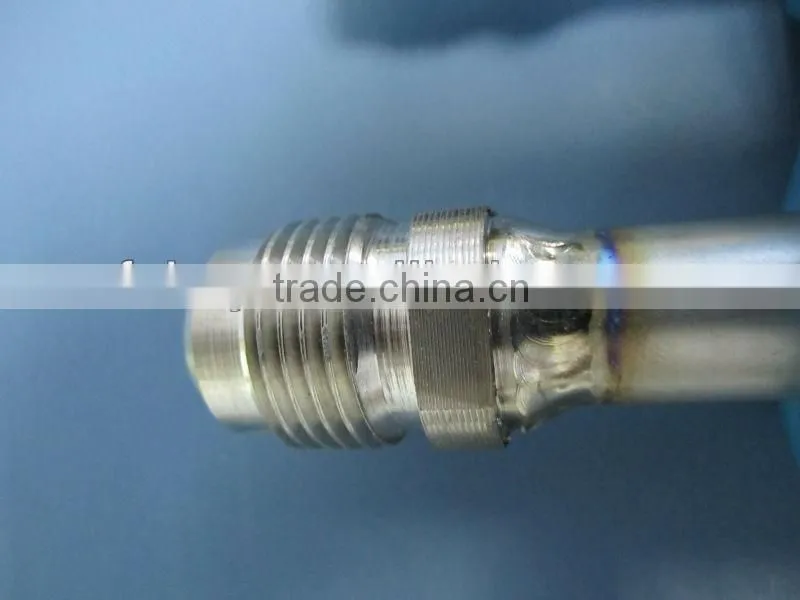

| gas inlet and outlet | titanium thread and copper nut/tube |

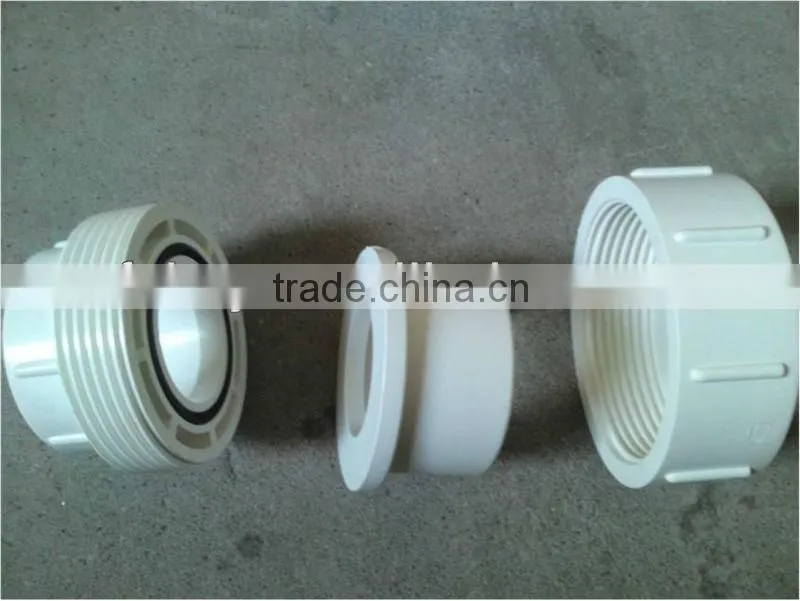

| water inlet and outlet | plastic piston |
| testing/others | |
| water pressure | 0.25----1.0Mpa(2.5---10bar) |
| gas pressure | 3.5Mpa |
| PVC temperature | ≤45°C |
| shell leakage | no |
| tube leakage | no |
| pack | 0.6mm thick gray sponge |
| corrosive or not | anti-corrosion |
| use | pool /heat pump/ air conditioner/chillar etc |
special beautiful appearance with excellence quanlity---easy for installing
inside function
1.factory visiting
2.24 hours on call
3.15 months free repair
4.titanium tube offer other accessories available
5.OEM:Logo design.Retail Gift box design.carton design

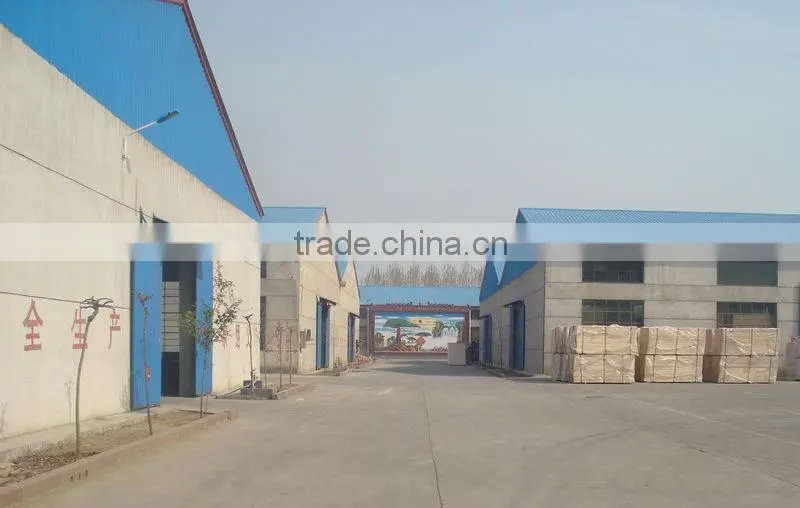

Foshan Hengxingye Hardware Co.,Ltd is located in Foshan, as one of the earliest heat exchanger enterprises with pool heat exchanger titanium tube.pool evaporator in China. it provides professional service and best products for international market. HXY factory covers an area of 3000 square meters. more than 150 staff members in manfactory, 10 staff members in quality control department. 5 staff members in research and development department. From the raw material purchasing to production, inspection, packaging and distribution, each proceess is strictly checking by computer controll system.

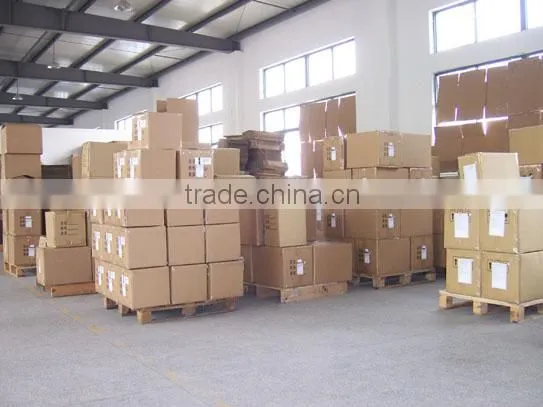

Packaging:
carton or plywood box
Shipping:
2--5days:DHL.FedEx.UPS.etc.
5--10days:EMS.Airport cargo
10-60days:sea cargo
1.Q:What's your delivery time?
A: for samples: within 5days
below 50pcs:within 7days
50--100pcs:15days
100-500pcs:20days
500-1000pcs:40days
Notice:Above time just for reference.please communicate with your sales to confirm
2.Q:.How to buy your company products?
A:24hours contact us:
mobile phone/whatsapp/viber: 0086 13531447796
trade manager: cn205737001
skype: lvlinfeng88
weixin: sunnylv12
payment terms:
L/C at sight .T/T.Western Union
