High Strong Anti-corrosion Coaxial Heat Exchanger With Tube in Tube for Sailing Boat Air Conditioner / Sea Water Fish Pool
US$ 50.5 - 2,002.98
MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HXY
Model Number:
TC-E01
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Strong Anti-corrosion Coaxial Heat Exchanger for Sailing Boat Air Conditioner lUS$ 100 - 500MOQ: 100 Units -
Sail Boat Double Tube Coaxial Titanium Heat ExchangerUS$ 100 - 500MOQ: 100 Units
-
Strong Anti-corrosion Coaxial Heat Exchanger for Vessel Air ConditionerUS$ 50.5 - 2,002.98MOQ: 100 Units
-
Good Quality Coaxial Heat Exchanger for Vessel Air ConditionerUS$ 50.5 - 500MOQ: 1 Unit
-
Air Conditioner Parts With Titanium Coaxial Tube-in-tube Heat Exchanger for VesselUS$ 95 - 785MOQ: 50 Pieces
Place of Origin
Guangdong, China
Brand Name
HXY
Model Number
TC-E01
Type
Heat Exchanger Tube
Application
Heater Parts
Certification
Other, RoHS
Specifications
1.green material with RoHs Certification2.very strict testing for water or gas leakage
rrugated tube for strong power
Specification for titanium evaporator:
now for coaxial tube in tube heat exchanger can do for
1.5HP 3HP 3.5HP 7HP 10HP
Inside:19mm titanium tube
outside:25mm titanium tube
Remark:1HP=3.5KW 1Mpa=10bar
certification:RoHs
refrigerant:R22 /R134/R407/R41OA .
| Product detail | |
| inside: titanium coil | |
| titanium tube material | seamless tube--TA1 |
| titanium tube diameter | 12.7mm----30mm(normal use) |
| titanium tube thickness | 0.55mm----3.0mm(normal use) |
| outside: PVC case | |
| PVC cover material | enviromental protection |
| PVC tube diameter | OD110mm----OD400mm |
| PVC tube thickness | 2.7mm----15.3mm |
| connection | |
| gas inlet and outlet | titanium thread and copper nut/tube |
| water inlet and outlet | plastic piston |
| testing/others | |
| water pressure | 0.25----1.0Mpa(2.5---10bar) |
| gas pressure | 3.5Mpa |
| PVC temperature | ≤45°C |
| shell leakage | no |
| tube leakage | no |

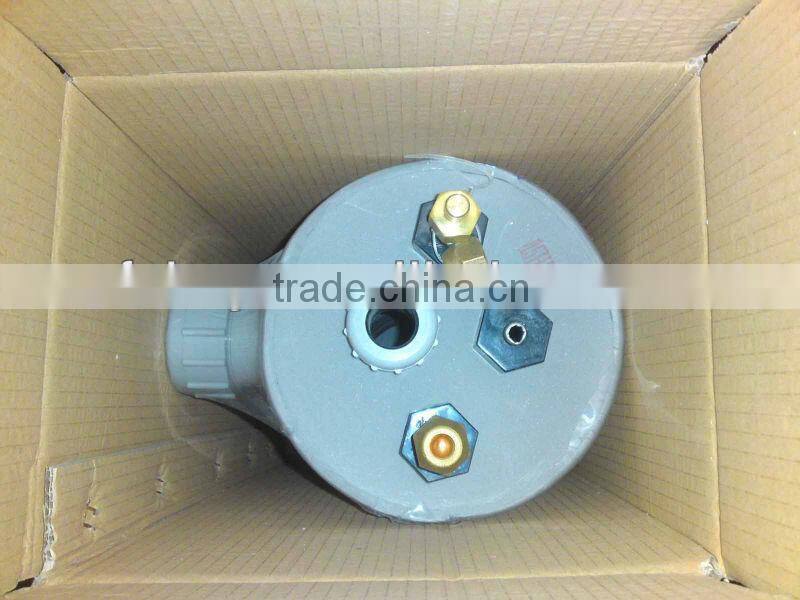

| pack | 0.6mm thick gray sponge |
| corrosive or not | anti-corrosion |
| use | pool /heat pump/ air conditioner/chillar etc |

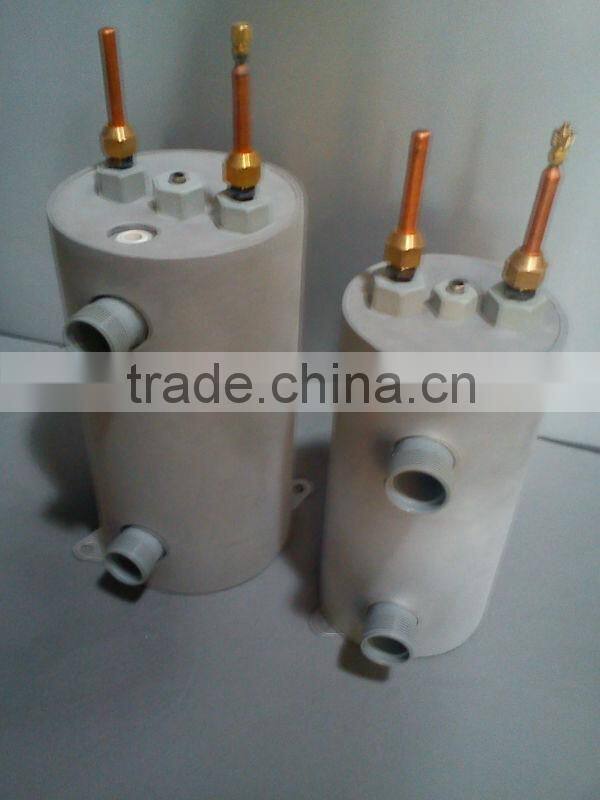

Evaporator with PVC Shell Specification:
| Power | Diameter(mm) | The height of PVC shell(mm) | gas inlet and outlet(mm) | Water inlet and outlet(mm) |
| lay one | ||||
| 1HP | 160 | 400 | OD12.7 | 50/40/32 |
| 1HP | 200 | 400 | OD12.7 | 50/40/32 |
| 1.5HP | 200 | 480 | OD12.7 | 50/40/32 |
| 2HP | 200 | 530 | OD12.7 | 50/40/32 |
| 3HP | 200 | 700 | OD12.7 OD19 | 50/40/32 |
| 5HP | 200 | 850 | OD12.7 OD19 | 50/40/32 |
| stand one | ||||
| 1HP | 160 | 330 | OD12.7 | 50/40/32 |
| 1HP | 200 | 350 | OD12.7 | 50/40/32 |
| 1.5HP | 200 | 350 | OD12.7 | 50/40/32 |
| 2HP | 200 | 350 | OD12.7 | 50/40/32 |
| 3HP | 200 | 420 | OD12.7 OD19 | 50/40/32 |
| 5HP | 200 | 550 | OD12.7 OD19 | 50/40/32 |
special beautiful appearance with excellence quanlity---easy for installing
inside function
corrugated tube certification:
| item | heat exchanger coil-titanium corrugated tube |
| tube type | titanium seamless tube |
| diameter | 12.7mm----25mm |
| power | can be the 2.5 times of normal titanium tube |
| function | small vol but high effeciency |
Water inlet&outlet(PVC Piston)

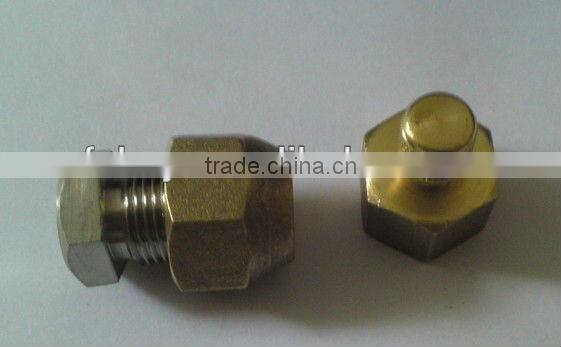

Gas inlet&outlet connection(copper tube)
titanium welding joint
