Titanium Plain Tube Evaporator for Sea Water

FOB Price

US$ 50.5 - 2,002.98 / Unit

100 Units(Min. Order)

Port FOB Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	HXY
Model Number	OEM	Type	Evaporator
Application	Other	Certification	Other, RoHS

Product Description

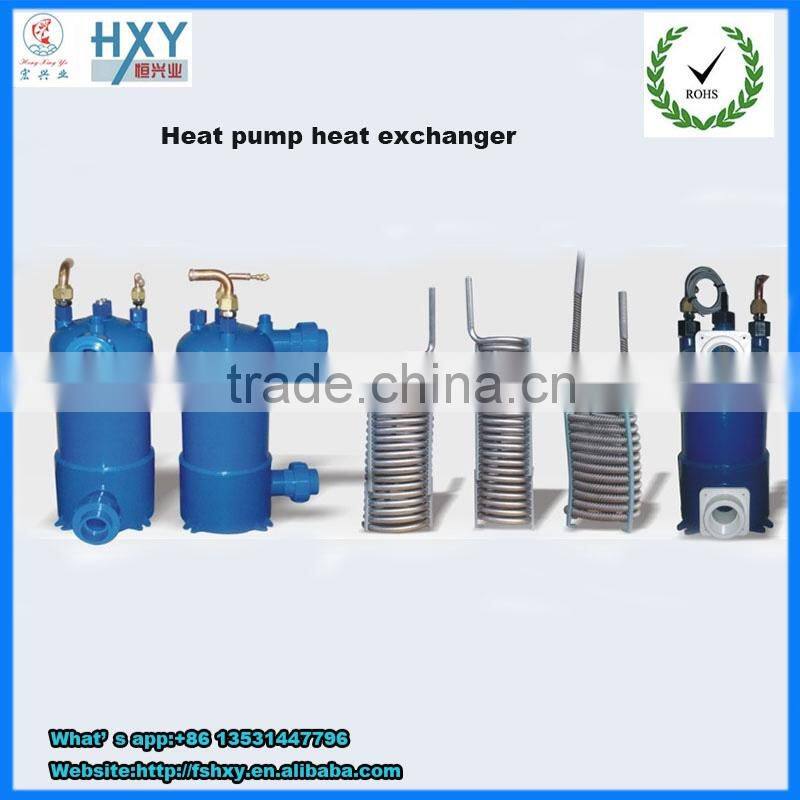

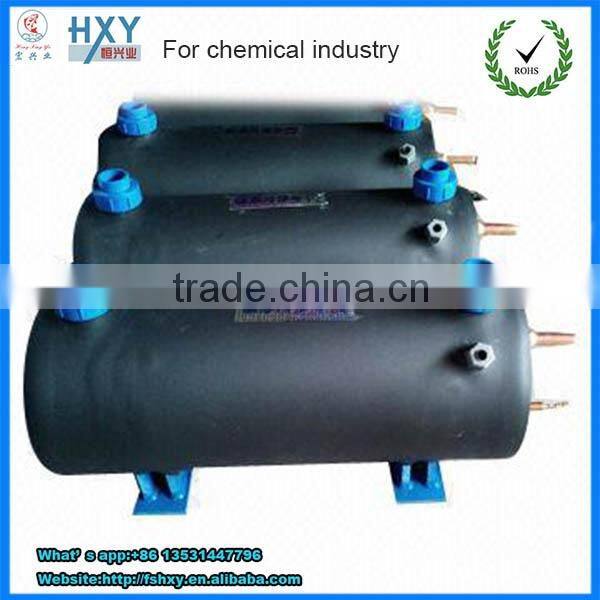

For Heat pump Version:

Specification for all heat pump Hxs:

Size	titanium tube	water inlet and outlet	titanium tube working prssure	PVC shell working pressure	each VOL
Size	titanium tube	water inlet and outlet	titanium tube working prssure	PVC shell working pressure	(CBM)
1/3HP/1/2HP	OD160.6mmL3.3M	32mm	3.0Mpa	0.5Mpa	0.016
3/4HP/1HP	OD160.6mmL5.3M	40mm	3.0Mpa	0.5Mpa	0.028
1.5HP/2HP	OD160.6mmL9M	50mm	3.0Mpa	0.5Mpa	0.043
1HP	OD12.70.6mmL5M	50mm	3.5Mpa	0.4Mpa	0.016
1.5HP	OD12.70.6mmL7.5M	50mm	3.5Mpa	0.4Mpa	0.017
2HP	OD12.70.6mmL11M	50mm	3.5Mpa	0.4Mpa	0.017
3HP	OD12.70.6mmL15.5M	50mm	3.5Mpa	0.4Mpa	0.021
5HP	OD190.6mmL20M	50mm	3.5Mpa	0.4Mpa	0.088
10HP	OD190.6mmL40M	50mm	3.5Mpa	0.4Mpa	0.098
15HP	OD191.0mmL60M	50mm	3.5Mpa	0.4Mpa	0.199
20HP	OD191.0mmL80M	50mm	3.5Mpa	0.4Mpa	0.186
30HP	OD190.55mmL120M	50mm	3.5Mpa	0.4Mpa	0.271

Remark:1HP=3.5KW 1Mpa=10bar

certification:RoHs

Refrigerant:R22 /R134/R407/R41OA .

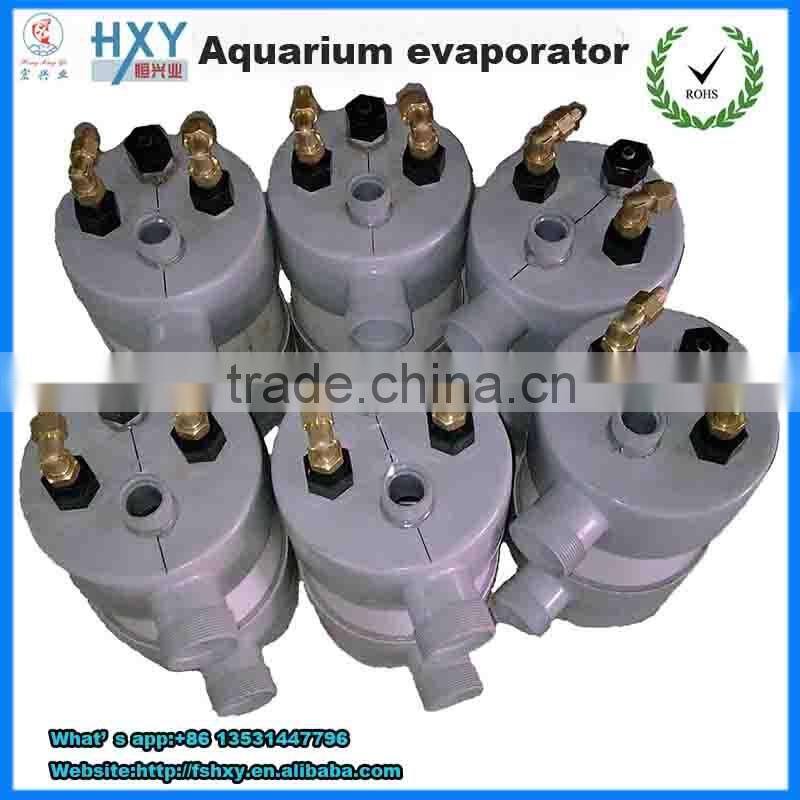

For Aquarium Version/Sea food pool/fish pool

size	Diameter(mm)	Height(mm)	Refrigerant gas inlet and outlet(mm)	Water inlet and outlet(mm)
Horizon
1HP	200	500	Φ12.7	50/40/32
1.5HP	200	580	Φ12.7	50/40/32
2HP	200	530	Φ12.7	50/40/32
3HP	200	700	Φ12.7 Φ19	50/40/32
5HP	200	850	Φ12.7 Φ19	50/40/32
Vertical
1HP	200	350	Φ12.7	50/40/32
1.5HP	200	350	Φ12.7	50/40/32
2HP	200	350	Φ12.7	50/40/32
3HP	200	420	Φ12.7 Φ19	50/40/32
5HP	200	550	Φ12.7 Φ19	50/40/32

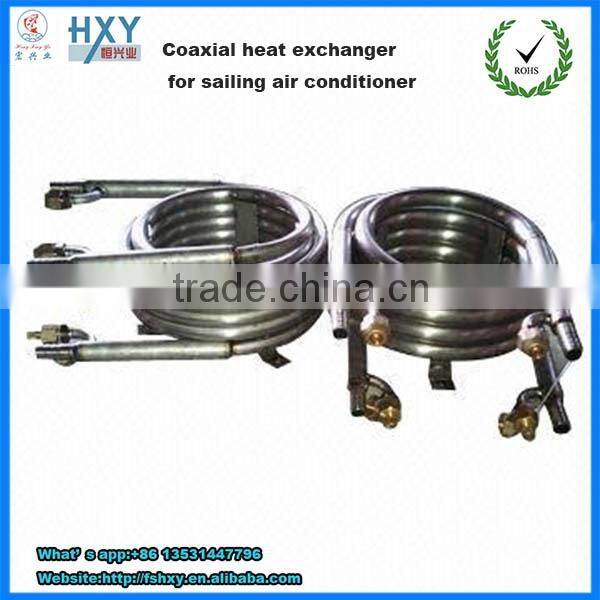

For sea water Version

size	Diameter(mm)	coils	Refrigerant gas inlet and outlet(mm)
1HP	150	4.5	Φ19
1.5HP	150	6.5	Φ19
2HP	150	10.5	Φ19
3HP	150	13.5	Φ19
5HP	150	18.5	Φ19

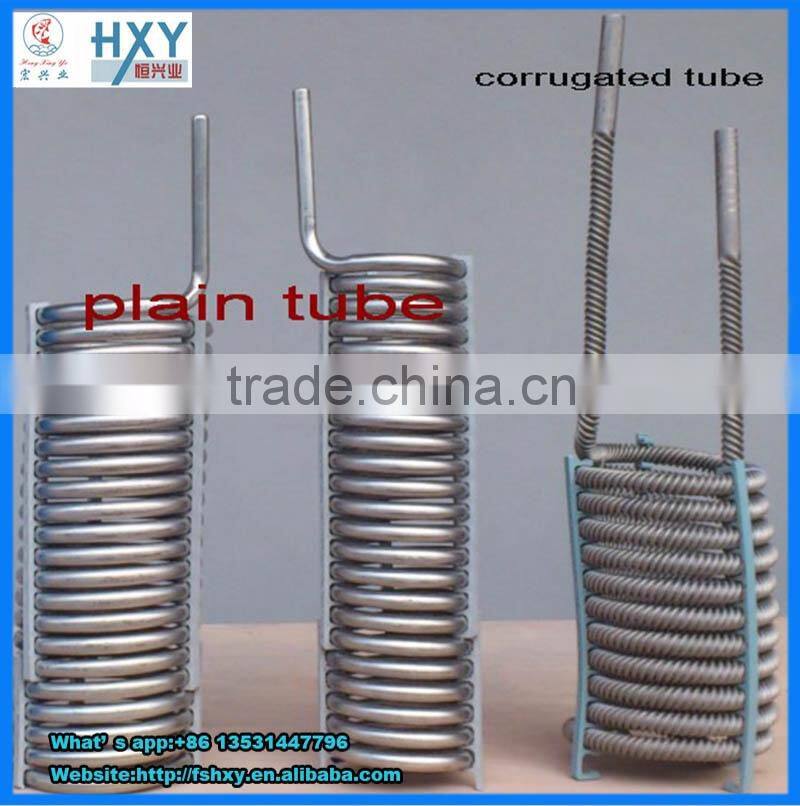

Titanium tube specification:

Titanium tube:

Product detail
inside: titanium coil
titanium tube material	seamless tube--TA1
titanium tube diameter	12.7mm----30mm(normal use)
titanium tube thickness	0.55mm----3.0mm(normal use)
outside: PVC case
PVC cover material	enviromental protection
PVC tube diameter	OD110mm----OD400mm
PVC tube thickness	2.7mm----15.3mm

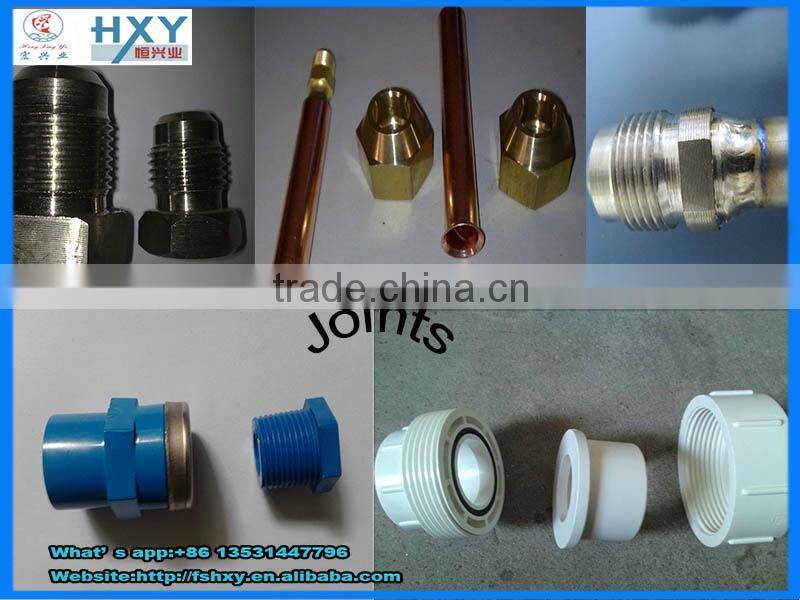

connection
gas inlet and outlet	titanium thread and copper nut/tube
water inlet and outlet	plastic piston
testing/others
water pressure	0.25----1.0Mpa(2.5---10bar)
gas pressure	3.5Mpa
PVC temperature	≤45°C
shell leakage	no
tube leakage	no
pack	0.6mm thick gray sponge
corrosive or not	anti-corrosion
use	pool /heat pump/ air conditioner/chillar etc

Other Version

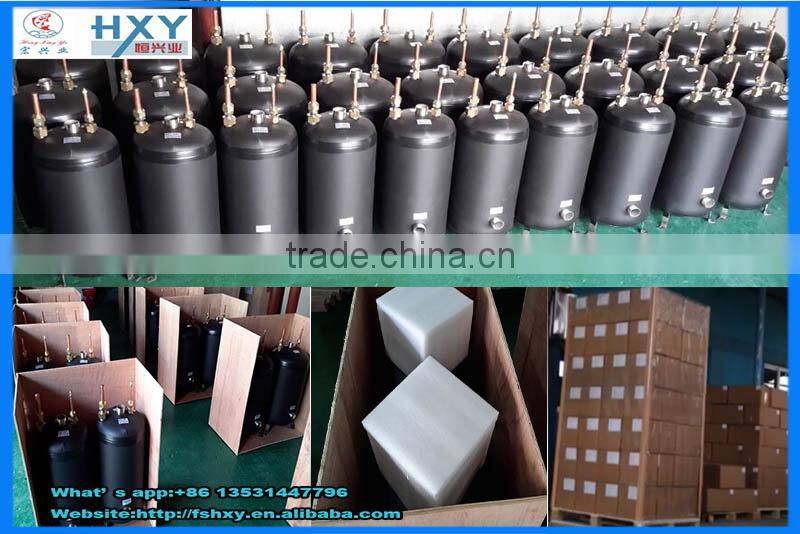

Packaging & Shipping

Packaging:

1,For PVC shell with Sponge insulation

2,Carton with EVA gasket to protection

3,Also can be with plywood box to package

4,With standard pallet for client request

Shipping:

2--5days:DHL.FedEx.UPS.etc.

5--10days:EMS.Airport cargo

10-60days:sea cargo

Our Services

1,factory visiting

2.24 hours on call

3.15 months free repair

4.titanium tube offer other accessories available

4.ODM:For client's own request/own drawing

5.OEM:Logo design.Retail Gift box design.carton design

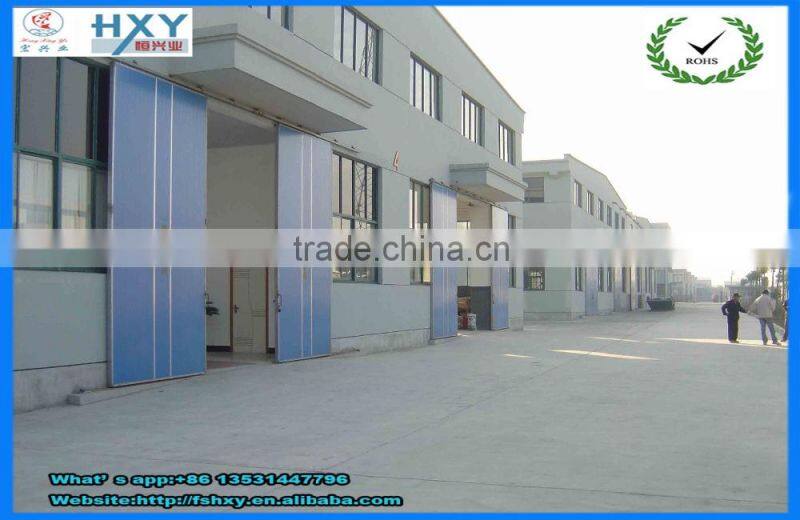

Company Information

Foshan Hengxingye Hardware Co.,Ltd is located in Foshan, as one of the earliest heat exchanger enterprises with pool heat exchanger titanium tube.pool evaporator in China. it provides professional service and best products for international market. HXY factory covers an area of 3000 square meters. more than 150 staff members in manfactory, 10 staff members in quality control department. 5 staff members in research and development department. From the raw material purchasing to production, inspection, packaging and distribution, each proceess is strictly checking by computer controll system.

FAQ

1.Q:What's your delivery time?

A: for samples: within 5days

below 50pcs:within 7days

50--100pcs:15days

100-500pcs:20days

500-1000pcs:40days

Notice:Above time just for reference.please communicate with your sales to confirm

2.Q:.How to buy your company products?

A:24hours contact us:

mobile phone/whatsapp/viber: 0086 13531447796

trade manager: fshxy

skype: lvlinfeng88

wechat: sunnylv12

payment terms:

L/C at sight .T/T.Western Union
