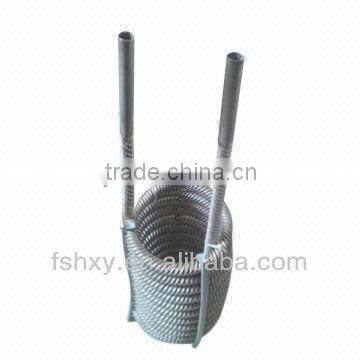

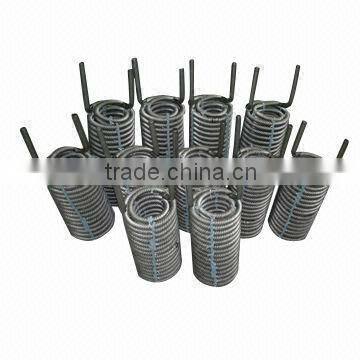

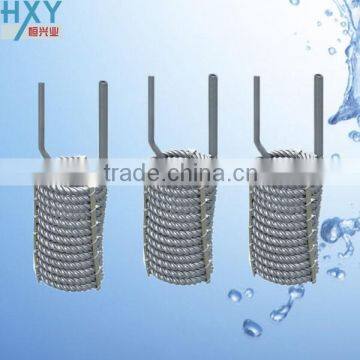

Strong Anti-corrosion Titanium Coil Heat Exchanger With Spiral Tube for Sea Water

US$ 51 - 1,235 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HXY

Model Number:

Foshan Hengxingye Hardware Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HXY

Model Number TS

Structure Tube Heat Exchanger

Liquid Flow Rate according to the size

Maximum Working Pressure 3.5Mpa

Certification ROHS

strong anti-corrosion titanium coil heat exchanger with spiral tube for sea water

material: titanium seamless tube

size:12.7mm----25mm etc

bending type:whorl tube and plain tube

for plain tube,this is the new technology.made by mechine

for titanium whorl tube,we can bend 12.7-----25mm size

compare to plain tube which can be its 2.5 times

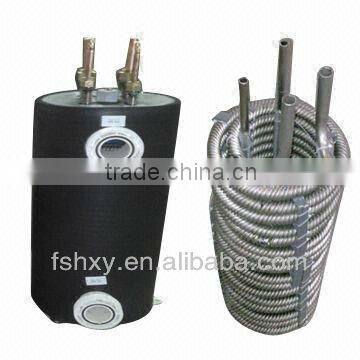

1. Mould cup heat exchanger

Product detail
inside: titanium coil
titanium tube material	seamless tube
titanium tube diameter	12.7mm----30mm(normal use)
titanium tube thickness	0.55mm----3.0mm(normal use)
outside: PVC case
PVC cover material	enviromental protection
PVC tube diameter	OD110mm----OD400mm
PVC tube thickness	2.7mm----15.3mm
connection
gas inlet and outlet	titanium thread and copper nut/tube
water inlet and outlet	plastic piston
testing/others
water pressure	0.25----1.0Mpa(2.5---10bar)
gas pressure	3.5Mpa
PVC temperature	≤45°C
shell leakage	no
tube leakage	no
pack	0.6mm thick gray sponge
corrosive or not	anti-corrosion
use	pool /heat pump/ air conditioner/chillar etc

power	diameter(mm)	PVC shell length(mm)	refrigeration connection (mm)	water inlet/ outlet (mm)	remark
1HP	160	350	Φ12.7	50	squing gun
1.5HP	200	400	Φ12.7	50
2HP	200	400	Φ12.7	50
3HP small	200	420	Φ12.7	50
3HP big	315	400	Φ12.7 Φ19	50
5HP	315	600	Φ12.7 Φ19	50
10HP	400	600	Φ12.7 Φ19	50

2.titanium coaxial heat exchanger

coaxial titanium heat exchanger
Tube type	seamless titanium tube
inside	19mm plain tube or whorl tube
outside	20mm 25mm 30mm plain tube
thickness	0.55---2.0mm
joint connection	copper nut and titanium thread
Corrosion or not	strong anti-corrosion
using	more used for the vessel sailling boat A/C

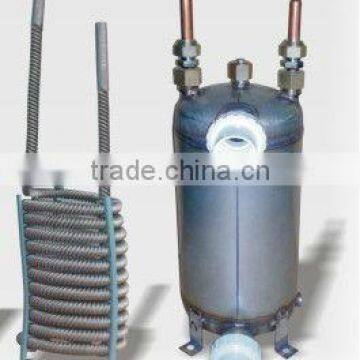

3.stainless steel heat exchanger

stainless steel titanium heat exchanger
Tube type		seamless titanium tube whorl tube
inside		titanium coil
outside		titanium plate welded
thickness		0.6mm---2.0mm
joint connection		copper tube coppet nut
Corrosion or not		strong anti-corrosion
using		use for chemical plant
size		1HP--150HP

4.titanium corrugated tube

product detail
item	heat exchanger coil-titanium corrugated tube
tube type	titanium seamless tube
diameter	12.7mm----25mm
power	can be the 2.5 times of normal titanium tube
function	small vol but high effeciency
using	chiller heat exchanger /water box /compressor/heat pump
