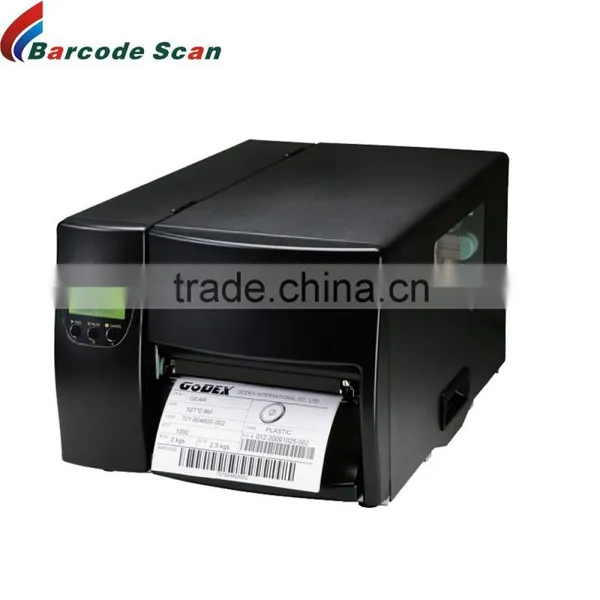

6 Inch Wide Barcode Printer Godex EZ-6200plus Adhesive Label Printer

6 Inch Wide Barcode Printer Godex EZ-6200plus Adhesive Label Printer thumbnail-1
6 Inch Wide Barcode Printer Godex EZ-6200plus Adhesive Label Printer photo-1
Negotiable MOQ: 2 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Other, Thermal Transfer
Style:
Black And White
Contact Supplier Request Quote Chat Now
Shenzhen Barcodescan Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Other, Thermal Transfer
Style Black And White
Use Barcode Printer
Interface Type USB
Max Paper Size 6.61'' print width
Black Print Speed 6 ips print speed
Max. Resolution 203 dpi
Brand Name Godex
Model Number EZ-6200plus
Place of Origin Taiwan, China

6 inch wide barcode printer Godex EZ-6200plus adhesive label printer

Product Description



The EZ-6200 Plus is an industrial barcode printer

Print Modes: Thermal transfer and direct thermal

Print width: 6 inch wide label printer

Available for 200dpi and 300dpi resolution

Tool-less for print head replacement

Automatically detecting print head resolutions while change print head

Multifunction Panel with back-lit LCD display for easy user interface and operation

Modular concept for ease of maintenance

EZ-6200Plus

Print Method
Thermal Transfer / Direct Thermal



Resoltuion
203 dpi (8 dots/mm)



Print Speed
6 IPS (150 mm/s)



Print Width
6.61" (168 mm)



Print Length
Min. 0.16” (4 mm)**; Max. 118” (3000 mm)



Memory
4MB Flash (2MB for user storage) / 16MB SDRAM



Sensor Type
Adjustable, left aligned see-through sensor and reflective sensor



Media
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 2” (50.8 mm) Min. - 7" (178 mm) Max.
Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.25 mm) Max.
Label roll diameter: Max. 8” (203.2 mm) with 3" (76.2 mm) core / Max. 6” (152.4 mm) with 1.5" (38.1 mm) core
Core diameter: 1.5" - 3" (38.1 mm - 76.2 mm)



Ribbon
Types: Wax, wax/resin, resin
Length: 1476’ (450 m)
Width: 2.36” Min - 6.85” (60 mm - 174 mm) Max
Ribbon roll diameter: 2.99“ (76 mm)
Core diameter: 1” (25.4 mm)

Auto ink insede and ink outside



Printer Language
EZPL, GEPL (Godex Eltron® Printer Language)



Software
Label design software: QLabel-IV (for EZPL only)
Driver & DLL: Windows 2000, XP and Vista



Resident Fonts
Bitmap fonts 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable



Download Fonts
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable

Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions

Scalable fonts 90°, 180°, 270° rotatable



Barcodes
1-D Bar codes:

Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar

2-D Bar codes:

PDF417, Datamatrix code, MaxiCode, QR code and Micro QR code



Code Pages
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255
Unicode (UTF8, UTF16)



Graphics
Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software



Interfaces
USB port

Serial port: RS-232(DB-9)

Ethernet 10/100Mbps print server (default off; disables USB when in use)

CF Card socket



Control Panel
Backlit graphics LCD display: 128 x 64 dots or 4 lines x 16 characters

Three mono-color status-LEDs: Power on, Ribbon out, Media out

Control keys: FEED, PAUSE and CANCEL



Real Time Clock
Standard



Power
Auto Switching 100-240VAC, 50-60Hz



Environment
Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C)



Humidity
Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.



Agency Approvals
CE(EMC), FCC Class A, CB, cUL, CCC



Dimension
Length: 20.31" (516 mm)
Height: 11.22” (285mm)
Width: 13.58” (345 mm)



Weight
36.8 lbs (16.7Kg), excluding consumables



Options
Rotary Cutter
Label Dispenser sensor with internal rewinder (Max rewinding speed is 4 IPS)

Parallel port (Centronics 36-pin) and PS2 port
External label rewinder (4 inch wide only)

802.11 b/g wireless print server (Default off; disables USB when in use. Must remove Ethernet card to install)
