Godex EZPi-1200 PS2 Keyboard Connection for Standalone Applications no PC Required
Negotiable
MOQ: 2 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Other, Thermal Transfer / Direct Thermal
Style:
Black And White
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Thermal Transfer Printer Direct Thermal Printer Godex EZ-1305 Barcode PrinterNegotiableMOQ: 2 Sets -
Direct Thermal Printer Godex HD90 Barcode PrinterNegotiableMOQ: 2 Sets
-
Simple Very Compact and Reliable Godex EZ-DT4 Barcode PrinterNegotiableMOQ: 2 Sets
-
Direct Thermal Label Printer Godex EZ-DT2 Barcode Desktop PrinterNegotiableMOQ: 2 Sets
-
All Metal Industrial Barcode Printer Godex EZ-2300plusNegotiableMOQ: 1 Set
Products Status
Stock
Type
Other, Thermal Transfer / Direct Thermal
Style
Black And White
Use
Barcode Printer
Interface Type
USB
Max Paper Size
Print Width:4.25'' (108 mm);Print Length:Min. 0.16' (4 mm), Max. 68''
Black Print Speed
6 IPS (150 mm/s)
Max. Resolution
203 dpi (8 dots/mm)
Brand Name
Godex
Model Number
EZPi-1200
Place of Origin
Taiwan, China
Godex EZPi-1200 PS2 keyboard connection for standalone applications no PC required
Product Description
Standard features include Ethernet, USB 2.0, Parallel and Serial interfaces.
User panel with backlit LCD display for easy user interface and operation
Adjustable, auto-adapt sensor for perfect registration on most all label types

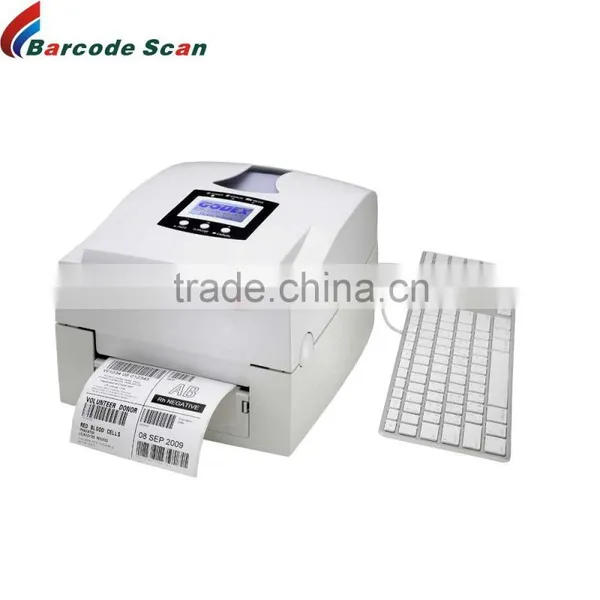

PS2 keyboard connection for standalone applications; no PC required

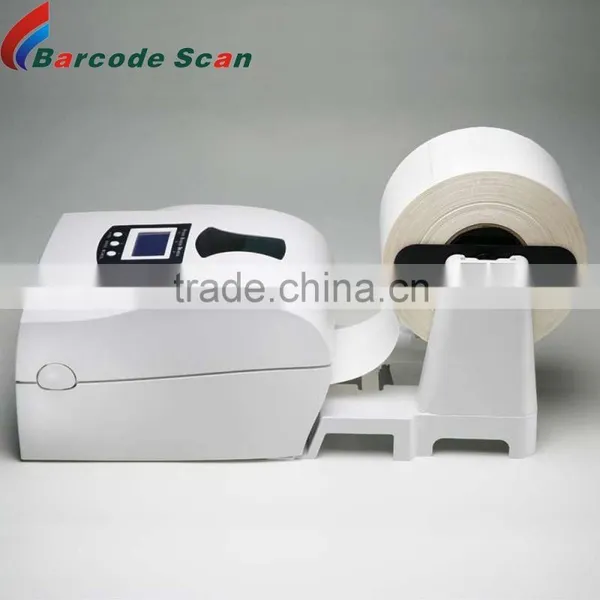

300 meter ribbon and optional 10" OD external label roll stand to increase capacity
Standard interfaces include Ethernet, USB 2.0, parallel and serial DB9
Seagull Scientific Windows drivers included
Free QLabel software with database function makes it easy to design and print labels
Options include: WLAN interface, CF memory adapter with real time clock, rotary cutter, label dispenser, external label roll stand, and external rewinder
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | 6 IPS (150 mm/s) |
| Print Width | 4.25" (108mm) |
| Print Length | Min. 0.16” (4 mm); Max. 68” (1727 mm) |
| Processor | 32 bit RISC CPU |
| Memory | 4MB Flash (2MB for user storage) / 8MB SDRAM |
| Sensor Type | Fixed, center aligned see-through sensor, adjustable reflective sensor |
| Media | Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max. Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.25 mm) Max. Label roll diameter: Max. 5” (127 mm) Core diameter: 1”, 1.5", 3” (25.4 mm, 38.1mm, 76.2 mm) |
| Ribbon | Types: Wax, wax/resin, resin Length: 981’ (300 m) Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max Ribbon roll diameter.: 2.67“ (68 mm) Core diameter: 1” (25.4 mm) |
| Printer Language | EZPL, GEPL (Godex Eltron® Printer Language), GZPL (Godex Zebra® Printer Language) |
| Software | Label design software: QLabel-IV (for EZPL only) Driver: Windows 2000, XP, Vista, 7, 8,Windows Server 2003 & 2008 DLL: Windows 2000, XP and Vista |
| Resident Fonts | Bitmap fonts 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable |
| Download Fonts | Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable |
| Barcodes | 1-D Bar codes: Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code and Micro QR code |
| Code Pages | CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255 Unicode (UTF8, UTF16) |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces | Serial port: RS-232 (DB-9) USB port (default on) Parallel port: Centronics 36-pin PS2 port CF Card socket (max. 1GB CF card) with real time clock Ethernet 10/100Mbps print server (default off; disables USB when in use) |

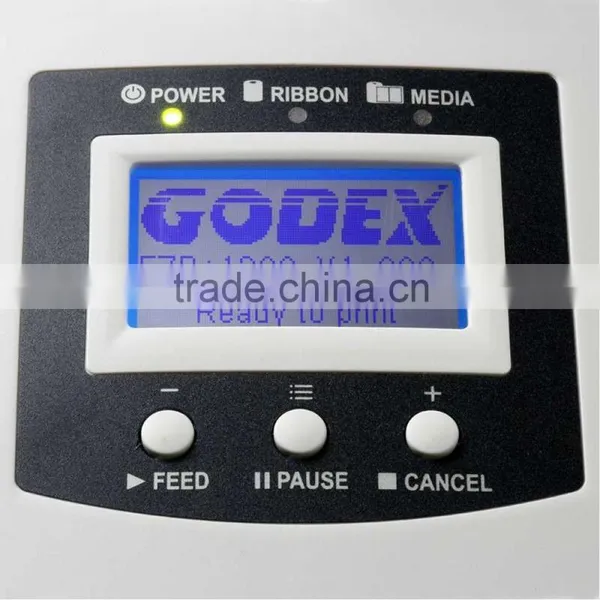

| Control Panel | Backlit graphics LCD display: 128 x 64 dots or 4 lines x 16 characters Three mono-color status-LEDs: Power on, Ribbon out, Media out Function keys: FEED, PAUSE and CANCEL |
| Real Time Clock | Standard |
| Power | Auto Switching 100-240VAC, 50-60Hz |
| Environment | Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 122°F (-20°C to 50°C) |
| Humidity | Operation: 30-85%, non-condensing. Storage: 10-90%, non-condensing. |
| Agency Approvals | CE(EMC), FCC Class A, CB, cUL, CCC |
| Dimension | Length: 11.2” (285mm) Height: 6.8” (171 mm) Width: 8.9” (226 mm) |
| Weight | 6.6 lbs (3.0Kg) ,excluding consumables |
| Options | Rotary Cutter Label Dispenser 802.11 b/g wireless print server (Default off; disables USB when in use. Must remove PS2 port and Ethernet card to install) External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder |
| Note | * Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. ** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability. |
