Fin Heating Element and Fin Heater Tube
1.Specification of heater
1.high-precision electric heating tube
2.OCr20Ni80 heating resistance wire
3.high-resistance alloy wire
4.cheap price
2. Technical Detail of heater
The following are the most common tubular element sheath materials. For other materials consult Joy
Material |
Material Max. Temp. °C |
Application |
Copper |
150 |
Water, non-corrosive liquids |
Steel |
400 |
Oil immersion |
Stainless Steel 304 |
650 |
Water,Corrosive liquids, food processing |
Stainless Steel 316 |
650 |
Corrosive liquids, |
Stainless Steel 321 |
650 |
intergranular corrosion situation |
Incoloy 800 |
800 |
Water ,Corrosive liquids, air, clamp on |
Sheath Dia. ±0.15mm |
6.4 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
25 |
Sheath Length Max. (mm) |
6000 |
6000 |
6500 |
6500 |
7000 |
7000 |
7000 |
7000 |
7000 |
Maximum Voltage |
250 |
277 |
480 |
550 |
550 |
550 |
550 |
550 |
550 |
Wattage Tolerance |
+5% -10% |
||||||||
Resistance Tolerance |
+10% -5% |
||||||||
Other diameter and lenth also OK, Please consult Joy For more details.
3.Feature of heater
1.We offer standard as well as customized models
2.We offer different tube diameters like 6 mm, 8 mm, 11 mm, 12.5mm, 16mm & 18mm
3.We offer different sheath materials. It can be availed in different materials like Incoloy 800, SS 304, SS 321, SS 316, Copper & Titanium
4.We offer various shapes as customer demand:immersion heater with flange or screw, explosion proof heater.
5.Various terminal options are available
6.Various shapes and sizes are available
7.Durable and has longer life
4. Applications of Cartridge Heater :
- Liquid Immersion
- Plastic Molds
- Dies
- Labeling
- Medical Equipment
- Platens
- Packaging Equipment
- Hot Stamping
- Sealing
- Injection Molding

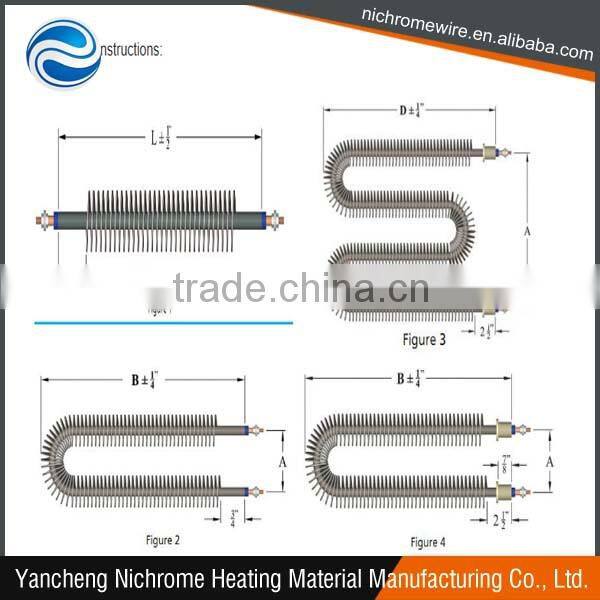

5.Finned Heater Drawing

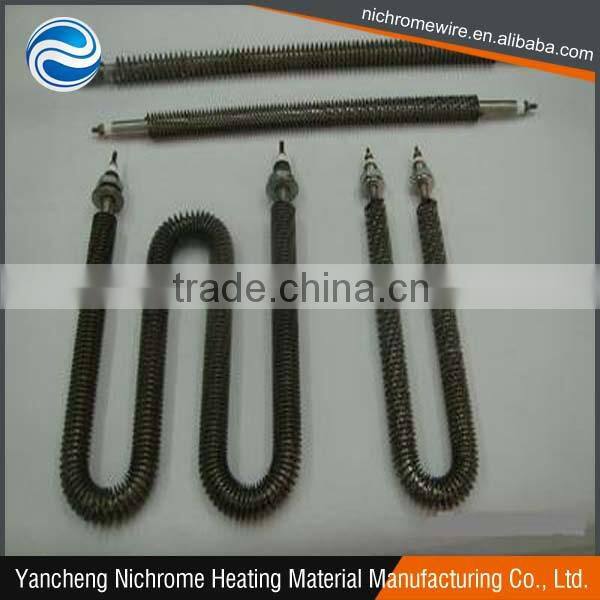

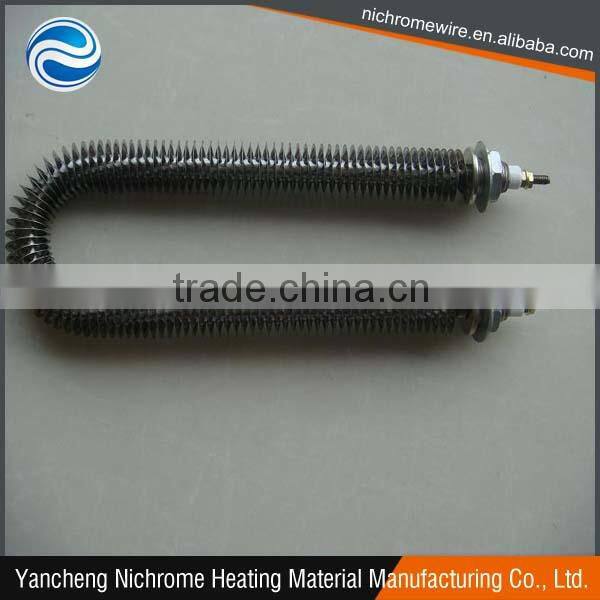

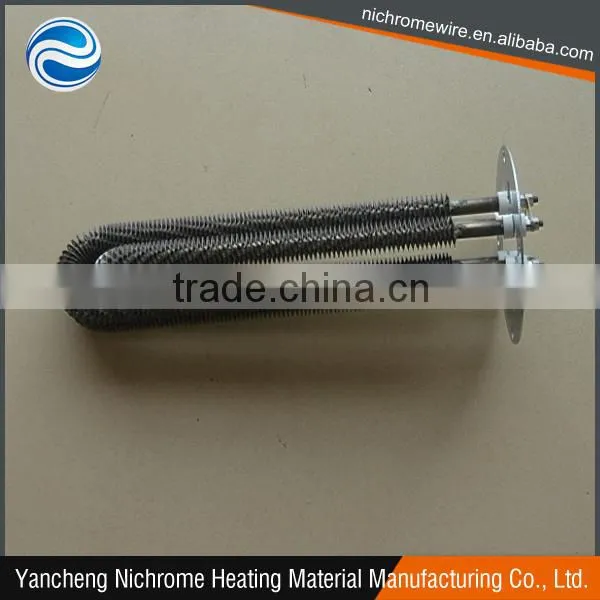

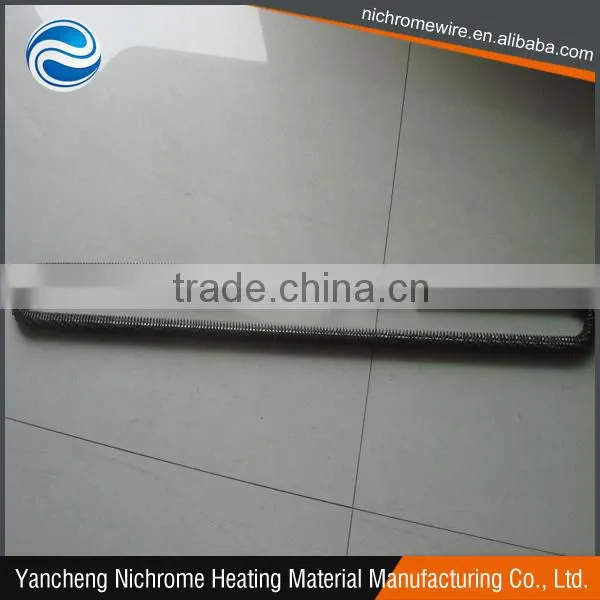

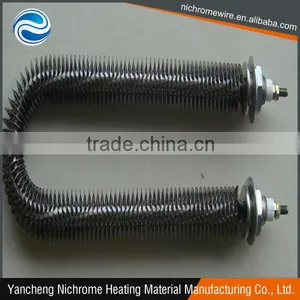

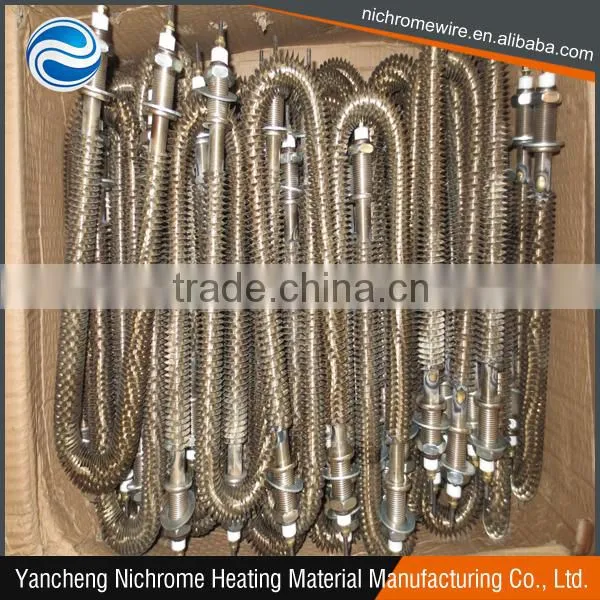

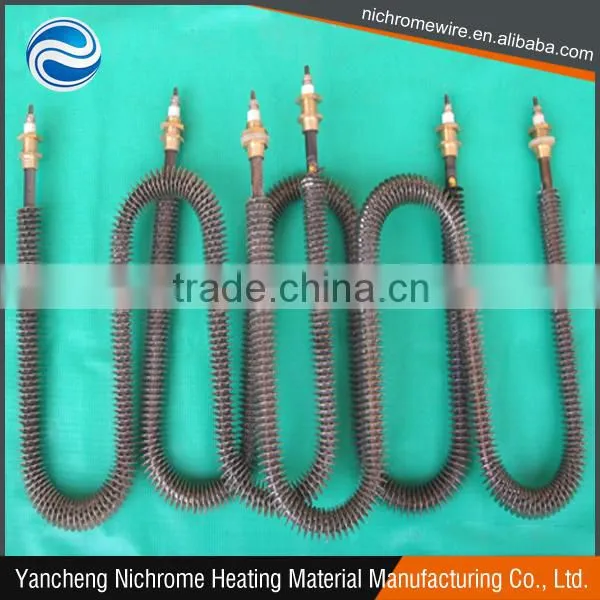

6.Photos of Heater
7.Package and Shipping
8.Pls tell us when inquiry:
1,if have drawing, will be very helpful
2,Power,voltage,shape
3,Working temperature
4,material requirement
5,quantity
6,Othe requirement required

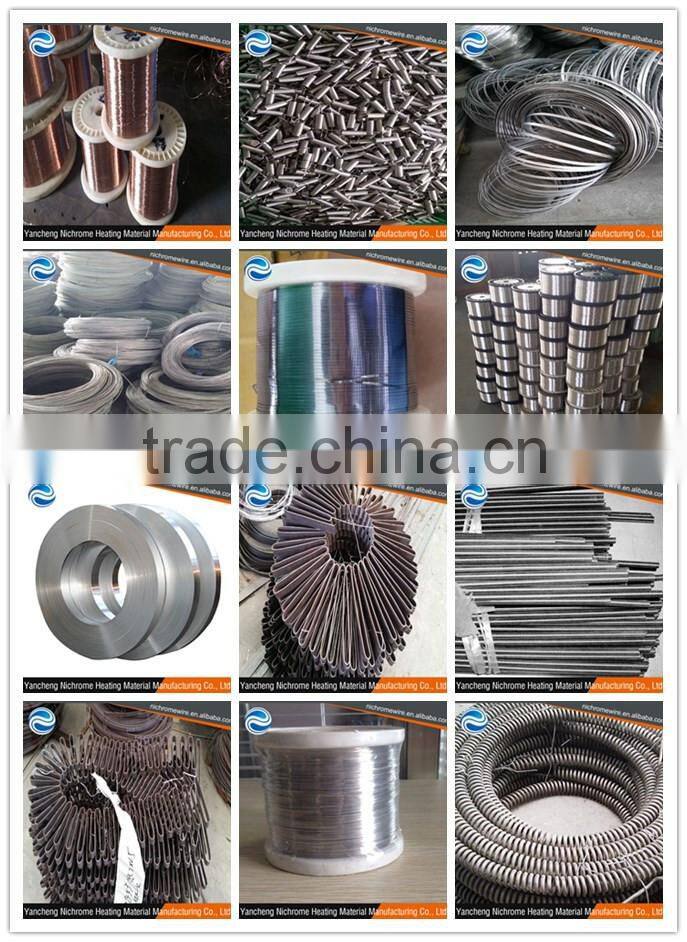

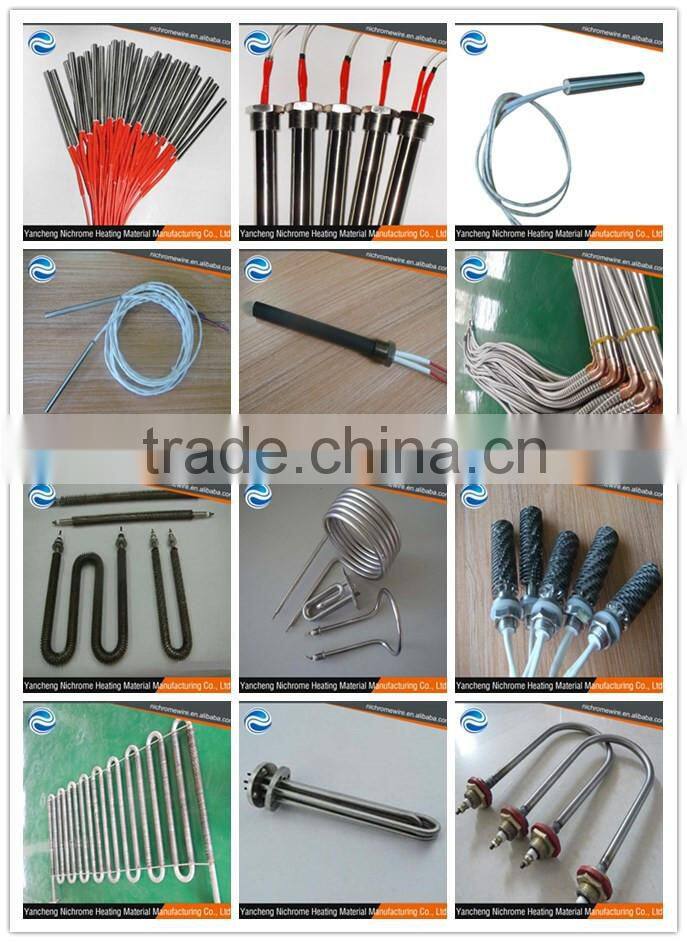

9.Our Main Products
If you want know more about our products,please feel free contact Joy:
