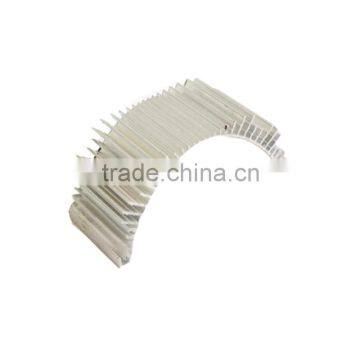

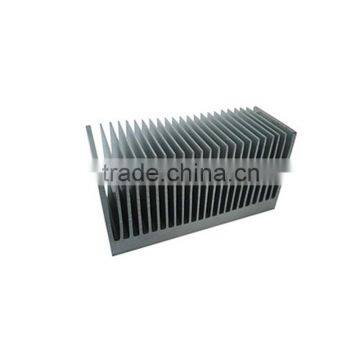

Help CenterHigh Precision OEM Aluminum Inverter Heat Sink
Related Products
-
China Factory Supply Aluminum Inverter Heat SinkUS$ 2.2 - 10MOQ: 1000 Kilograms -
Wholesale OEM ODM Big Aluminum Heat SinkUS$ 2.2 - 10MOQ: 1000 Kilograms
-
Factory Price Anodized Big Aluminum Heat SinkUS$ 2.2 - 10MOQ: 1000 Kilograms
-
Professional Precision Big Aluminum Heat SinkUS$ 2.2 - 10MOQ: 1000 Kilograms
-
Superior Craftsmanship Big Aluminum Heat SinkUS$ 2.2 - 10MOQ: 1000 Kilograms
CPU COOLER HEAT SINK
Specifications
Material |
Aluminum alloy 6000 series |
Temper |
T3-T8 |
Tensile Strength |
≥160 MPa |
Yield strength |
≥110 MPa |
Extensibility |
≥8% |
Hardness (HW) |
≥8 |
Color |
Any color customer required |
Surface treatment |
Mirror anodized ,Drawing, Powder coating, Polishing, Electrophoresis, sandblasting , etc |
Process |
CNC machining ,Drilling ,Milling ,Bending ,Cutting ,Welding, Punching ,etc |
Application |
Electronic parts ,Led street light, Industry House application, Machine parts,etc. |
Certification |
ISO9001 |
Standard |
GB5237-2008, GB/T6892-2006 |

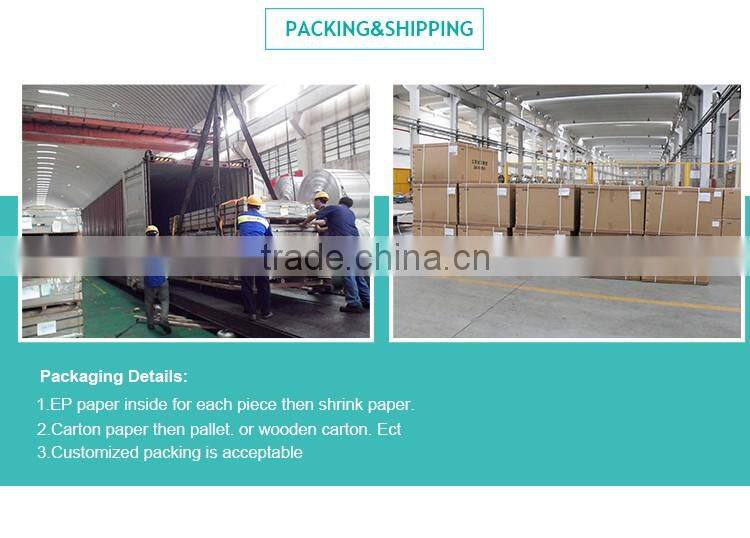

Packing |
Shrink film or EPE film with pallet or customized |
Shelf life |
10 year |
100% Brand new and High Quality

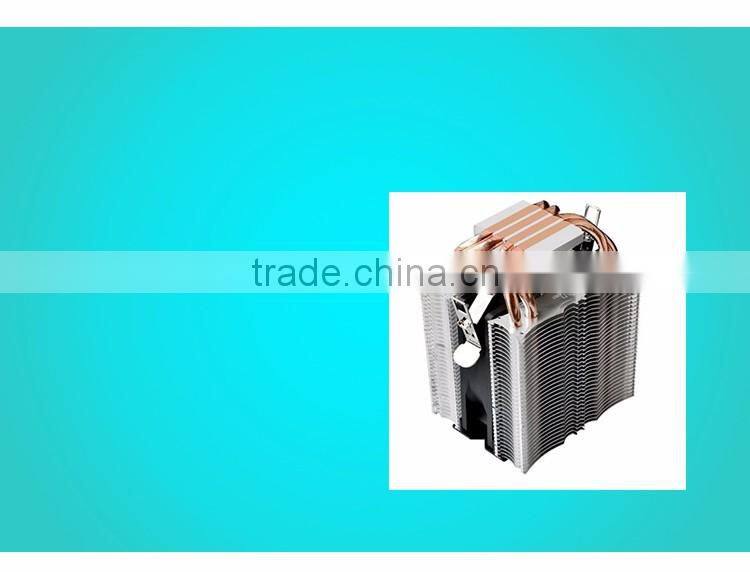

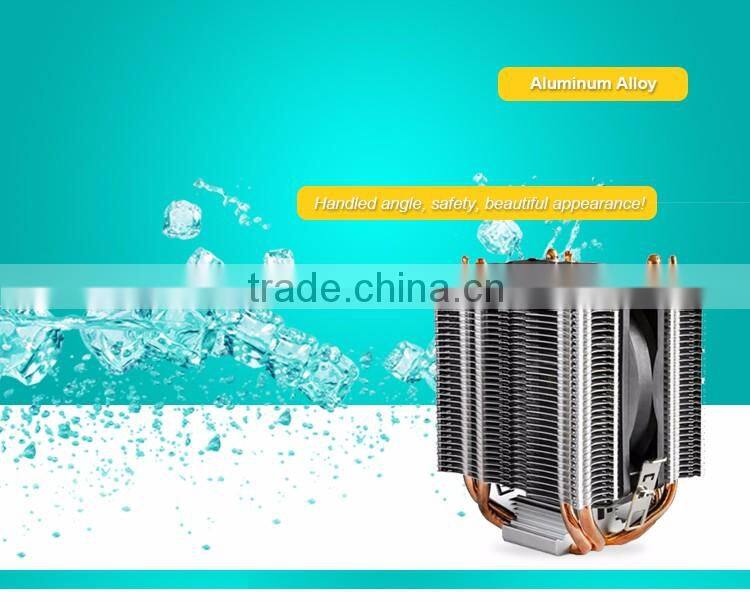

Four 6MM heat pipe design,
superior thermal performance.
Specification
Fan size:92*92*25mm.
Bearing type:Hydro bearing.
Rated Voltage:12V DC.
Start Voltage:7V DC.
Operating Voltage:10.8-13.2V DC.
Rated Current:0.17±10%A.
Input Power:2.04W.
Fan speed:2000±10% RPM.
Bottom CTT process and improve the efficiency of heat transfer.
9 cm quiet black-rimmed leaf fan, highlight DIY personality.
1.Aluminum Ingot 2.Extrusion 3.Sandblasting Machine
4.CNC Machinery 5.Punch Machinery 6.CNC Turning Machine
7.Powder Coating 8.Load Container
Our advantages
We have have 99 CNC machines,40 punching machines,30 drawbench machines and other advanced equipment. Our engineering team members are 6 young men that are full of passion and experience in mechanical and mechatronic design, product development. Their professional engineering knowledge enables them to provide the best technical supports, to fulfill every need of the customer. Please do not hesitate to contact us if you have any enquiry, we are providing the best service and most competitive price.
Please provide your 2D or 3D drawing with details as below:
1. Type of material 2. Quantity of the product
3. Part application 4. Drawings, samples or pictures with details
1 2 3 4 5 6 7
1.Anodized 2.Powder coating 3.Polishing 4.Sand blasting
5.Laser 6.Electrophoresis 7.Oil painting
Q1: What are the advantages of using the 6000 series of alloys in aluminum extrusions?
A: The 6000 series, which incorporates magnesium and silicon, provide good extrudability,
strength, corrosion resistance, formability and machinability -- which explains why it’s also
JJT’s alloy of choice for all our aluminum extrusions.
Q2: If I wish to send an electronic drawing to you, what types of files can you accept?
A: We accept many file formats such as DXF, DWG and IGES.
Q3: Why do extrusion companies always ask me to sign off on a drawing before they can
order tooling if I’ve already provided a drawing?
A: Oftentimes, we find a few key dimensions that are missing from the original drawing
that need to be clearly identified. Other times, we have taken exception to a tolerance,
dimension, alloy, note, surface condition, etc. It’s just our way of documenting exactly
what we have agreed upon.
Q4: What is the difference between anodized and mill finished?
A: Mill is the raw state of aluminum as extruded - no surface treatment. Anodized (also
known as Satin Clear or Clear Anodized) is an electrolytic process. This process increases
corrosion resistance and weather resistance.
Q5: What About Anodizer Rack Marks?
A: Electrical contact must be made to each part to be anodized. The more electrical
current required, the greater the electrical contact. The size of the contact therefore
depends on the anodizing process and the size of the part being anodized.
