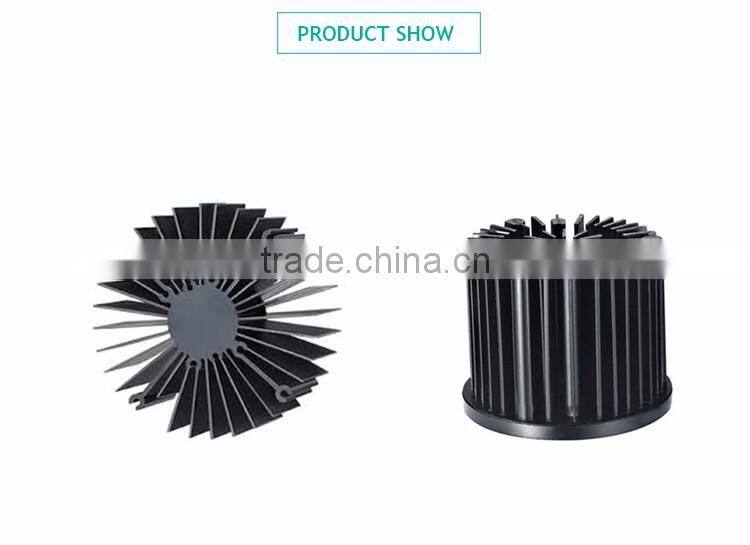

HEAT SINK FOR LED LAMP
Specifications
Material |
Aluminum alloy 6000 series |
Temper |
T3-T8 |
Tensile Strength |
≥160 MPa |
Yield strength |
≥110 MPa |
Extensibility |
≥8% |
Hardness (HW) |
≥8 |
Color |
Any color customer required |
Surface treatment |
Mirror anodized ,Drawing, Powder coating, Polishing, Electrophoresis, sandblasting , etc |
Process |
CNC machining ,Drilling ,Milling ,Bending ,Cutting ,Welding, Punching ,etc |
Application |

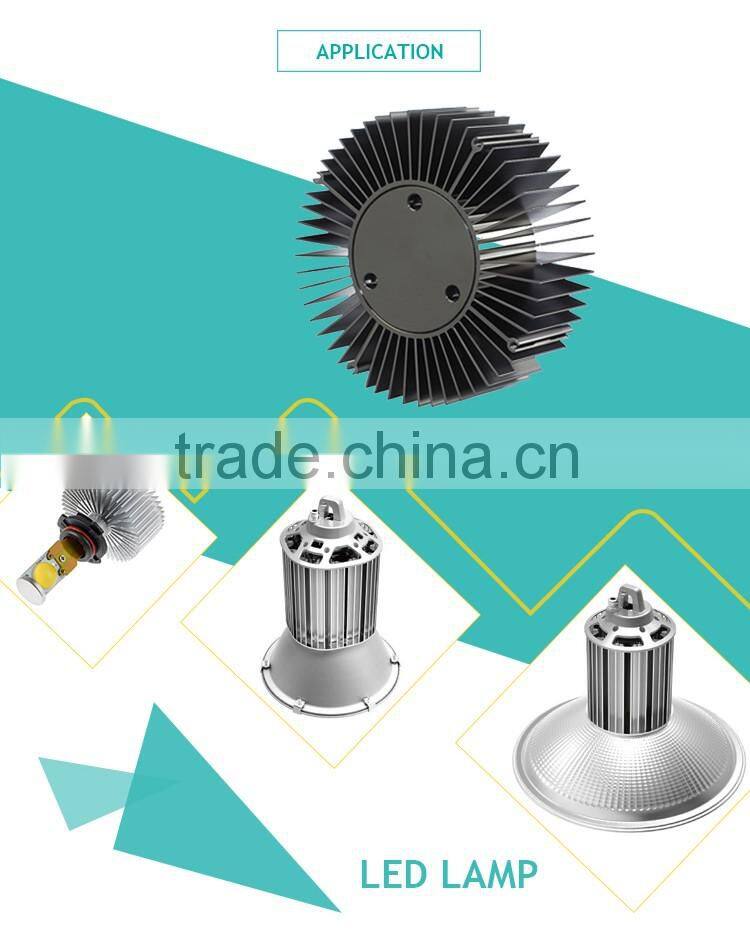

Electronic parts ,Led street light, Industry House application, Machine parts,etc. |
Certification |
ISO9001 |
Standard |
GB5237-2008, GB/T6892-2006 |
Packing |
Shrink film or EPE film with pallet or customized |
Shelf life |
10 year |

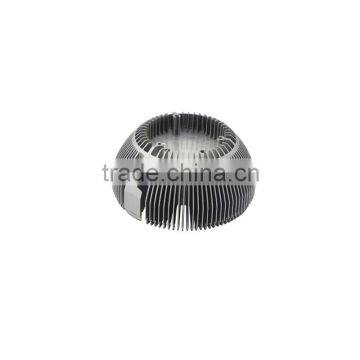

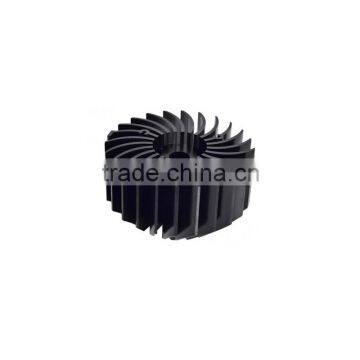

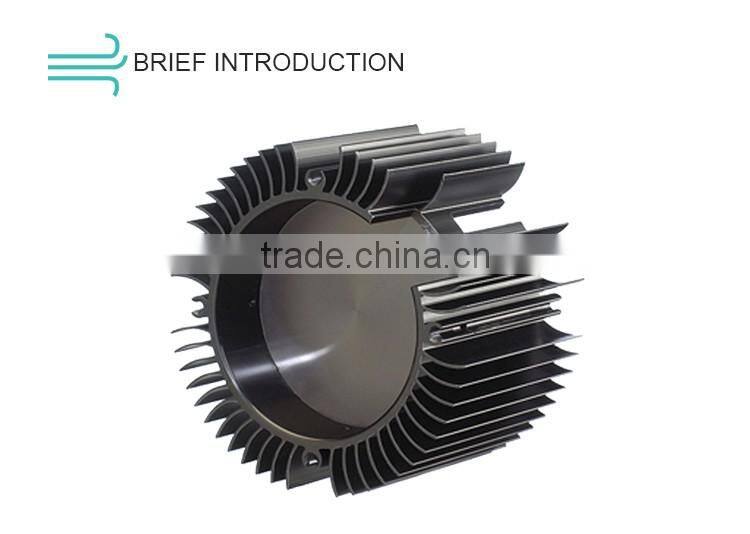

LED Down light heat sink
Designed for high-performance convection cooling of power LEDs,
COB modules and LED engines
Thermal resistance Rth 5,7°C/W
Cooling performance up to 13.2W
Diameter 50mm base
Easy base plate customisation with mounting holes, cable guidance, reflector mounting options
Forged from highly conductive aluminum with 98 round pins for maximum cooling surface
Better performance under tilted positions compared to extruded LED heat sinks

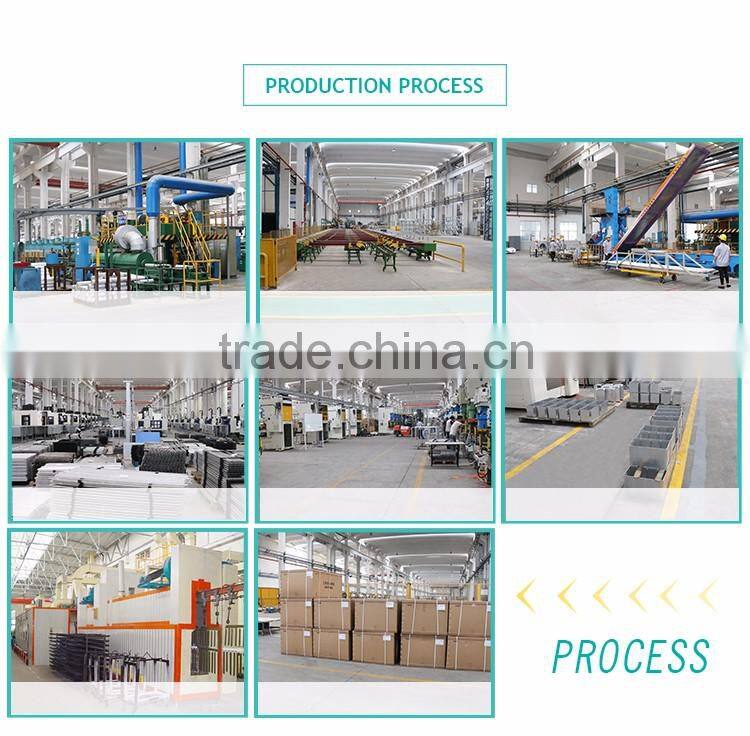

1.Aluminum Ingot 2.Extrusion 3.Sandblasting Machine
4.CNC Machinery 5.Punch Machinery 6.CNC Turning Machine
7.Powder Coating 8.Load Container

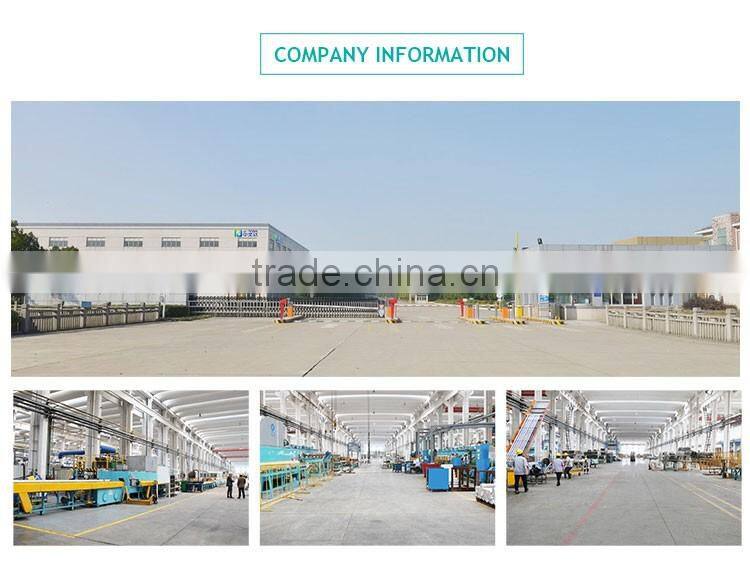

Our advantages
We have have 99 CNC machines,40 punching machines,30 drawbench machines and other advanced equipment. Our engineering team members are 6 young men that are full of passion and experience in mechanical and mechatronic design, product development. Their professional engineering knowledge enables them to provide the best technical supports, to fulfill every need of the customer. Please do not hesitate to contact us if you have any enquiry, we are providing the best service and most competitive price
Please provide your 2D or 3D drawing with details as below:
1. Type of material 2. Quantity of the product
3. Part application 4. Drawings, samples or pictures with details
1 2 3 4 5 6 7

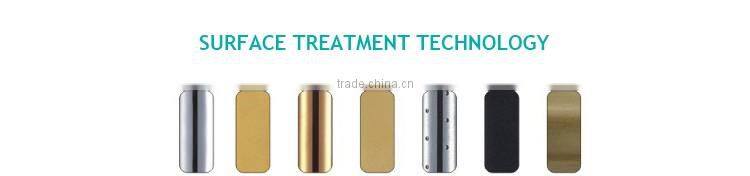

1.Anodized 2.Drawing 3.Powder coating 4.Polishing
5.Sand blasting 6.Laser 7.Electrophoresis
Q1: What are the advantages of using the 6000 series of alloys in aluminum extrusions?
A: The 6000 series, which incorporates magnesium and silicon, provide good extrudability,
strength, corrosion resistance, formability and machinability -- which explains why it’s also
JJT’s alloy of choice for all our aluminum extrusions.
Q2: If I wish to send an electronic drawing to you, what types of files can you accept?
A: We accept many file formats such as DXF, DWG and IGES.
Q3: Why do extrusion companies always ask me to sign off on a drawing before they can
order tooling if I’ve already provided a drawing?
A: Oftentimes, we find a few key dimensions that are missing from the original drawing
that need to be clearly identified. Other times, we have taken exception to a tolerance,
dimension, alloy, note, surface condition, etc. It’s just our way of documenting exactly
what we have agreed upon.
Q4: What is the difference between anodized and mill finished?
A: Mill is the raw state of aluminum as extruded - no surface treatment. Anodized (also
known as Satin Clear or Clear Anodized) is an electrolytic process. This process increases
corrosion resistance and weather resistance.
Q5: What About Anodizer Rack Marks?
A: Electrical contact must be made to each part to be anodized. The more electrical
current required, the greater the electrical contact. The size of the contact therefore
depends on the anodizing process and the size of the part being anodized.
