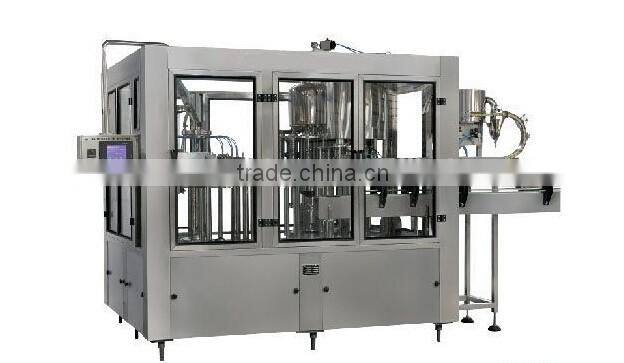

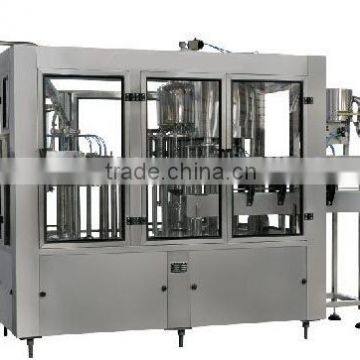

pet bottle juice filling machine adopts bottle neck holding transmission technology to realize fully automatic bottle rinsing, pulp filling, juice filling and cap screwing. It employs single cavity plunger type of fixing filling volume technique and is equipped with perfect temperature control system, reverse flow system, automatic cleaning system and control program. Each machine element that contacts with the liquid is made of high quality stainless steel and food grade rubber.
Model |
RXGFA16-12-16-6 |
RXGFA16-12-18-6 |
RXGF24-18-24-8 |
RXGFA32-24-32-10 |
RXGFA40-32-40-12 |
Production capacity (500ml)(b/h) |
2000-4000 |
4000-6000 |
6000-8000 |
8000-12000 |
12000-15000 |
Filling precision |
±2mm(Liquid Level) |
||||
Polyester bottle standard(mm) |
(Bottle Diameter): Φ50-Φ100 (Height): 150-310 |
||||
Suitable cap shape |
Plastic Screw Cap |
||||
Water pressure of washing bottle(MPa) |
0.2-0.25(MPa) |
||||
Gas source pressure(MPa) |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
Gas consumption(M3/min) |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
Power(KW) |
3.8 |
4.3 |
6.5 |
8.7 |
9.5 |
Dimensions(L×W×H)(mm) |
3050*2000*2400 |
3170*2070*2400 |
4070*2350*2400 |
5100*3050*2400 |
6250*3050*2400 |

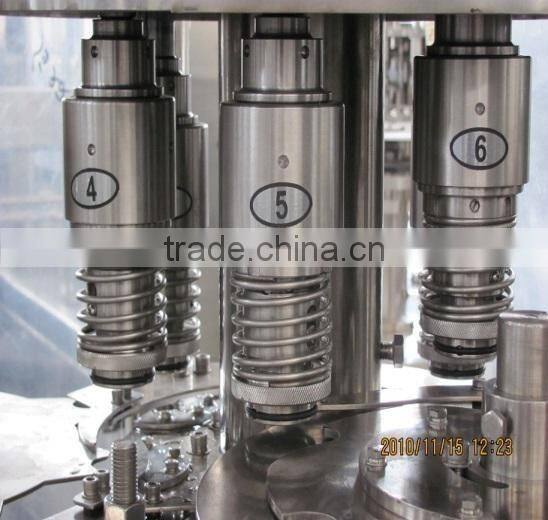

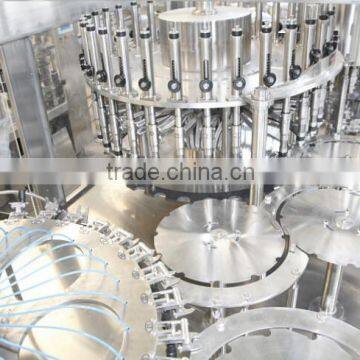

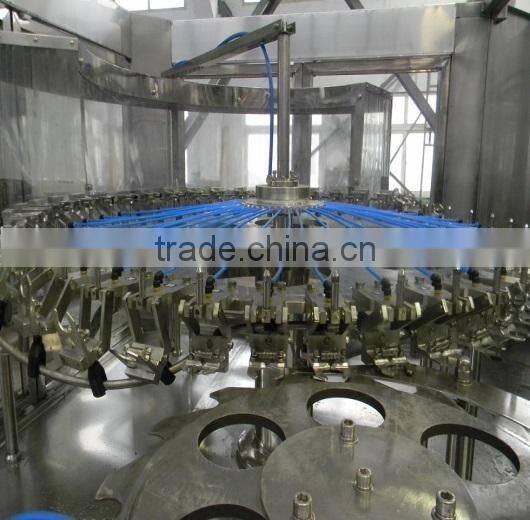

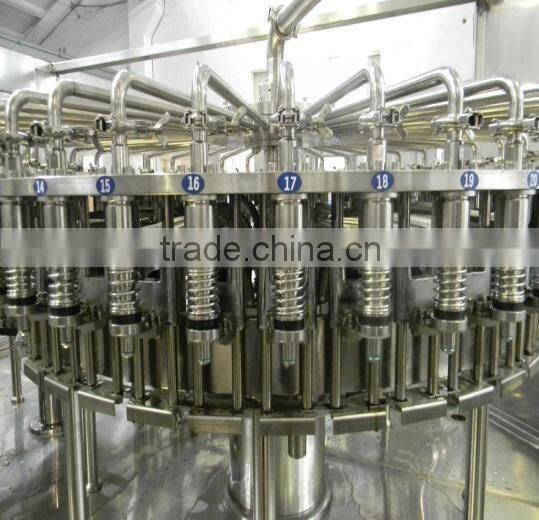

Washing Filling Capping
Certificate
To provide customers with pre-project planning workshop, design.
2. Commissioning services
Send experienced engineers and technicians responsible for equipment installation and commissioning, to ensure normal production and customers.
3. Parts
It comes with one year of wearing parts when the device is shipped. In addition, we prepare an adequate equipment spare parts as inventory, customer ever need spare parts repair and maintenance of equipment, can quickly provide.
4. Technical training
To ensure that your technical staff to become familiar with the performance of the equipment, proper operation and maintenance procedures to master the equipment, provide on-site technical training, in order to facilitate customers faster and more comprehensive access to technology.
Please feel free to contact us
Miss Linda Mobile/Whatsapp: +86-15851606365 skype: lindading16
