Ice Cream Stick Making Machine
- NINGBO
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HONGDA | |
| Model Number | HD-WTDM | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
*Introduction of the machines
This line is used to produce ice-cream stick, ice-cream spoon, coffee stir stick ,tongue depressor for medical purpose, and other wooden products. It is composed of Rotary cutter, Die cutter, polishing and dry machine
* Machine function
lay off – boil off -- peeling – rotary cutting – die cutting – polishing and drying – select – chamfering – select – packing .

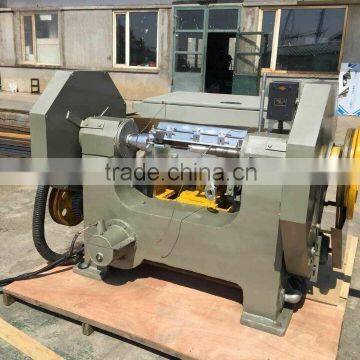

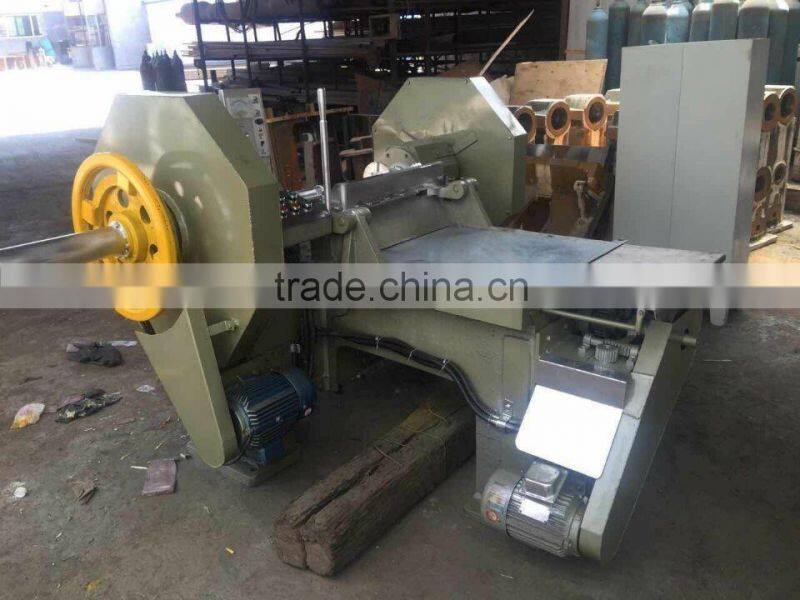

1. Single segment rotary cutter main parameter:
Clamp diameter: <400mm
Working length: <280mm
Rotary cutting thickness: 0.9—5.6mm
Motor power: 11.25kw
Overall size: 3.3*1.8*1.5m
Weight: 3200kg

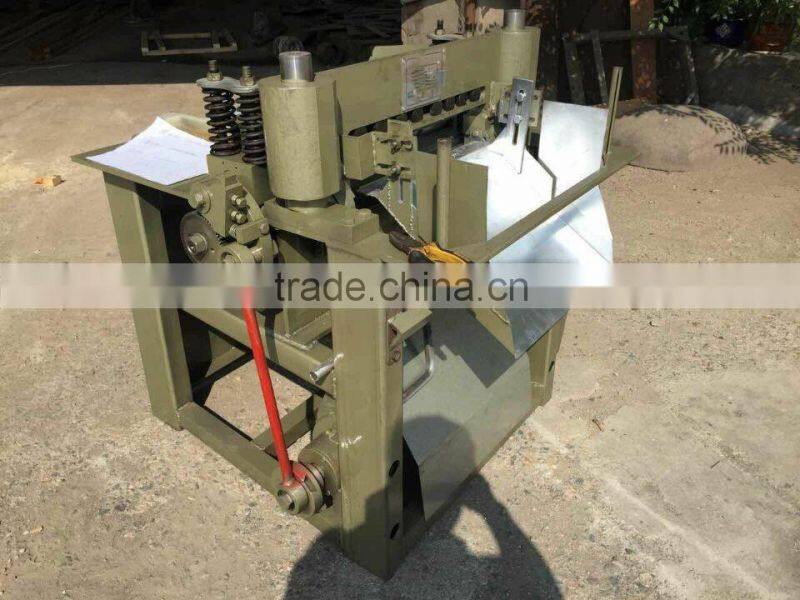

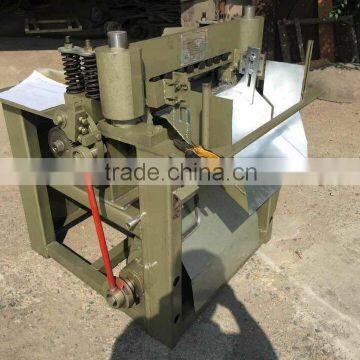

2. Cutting machine main parameter:
Frequency: 430r/min
Cutting thickness: 0—20mm
Max. Sheet width: 440mm
Motor power: 2.2kw
Outside dimension: 1.2*0.8*1.2m
Weight: 500kg

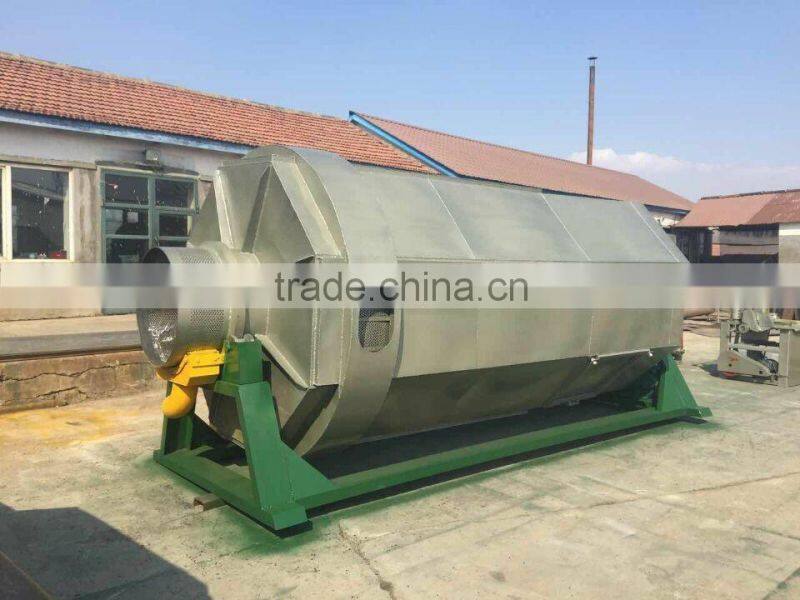

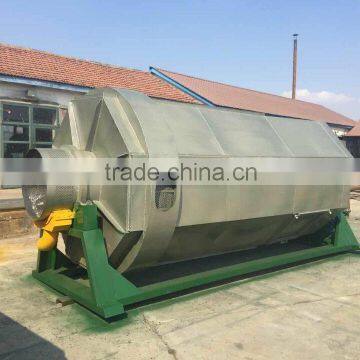

3.dry and polishing machine
power:11kw
Feed speed: 1million pcs max/time
Polishing time : 6-7 hours
size :5.7x2.2x2.1m
Weight: 3000kg

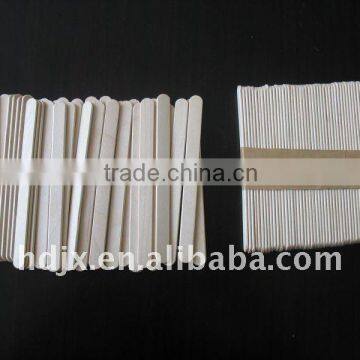

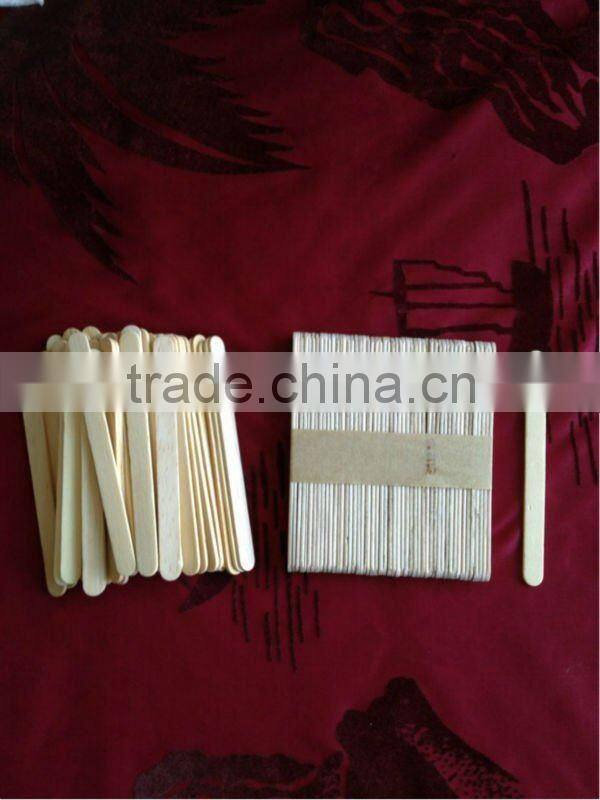

* Machine and production Photo
Contact Us
- Zhejiang Shengzhou Hongda Machinery Co., Ltd.
- Contact nameJane zhang Chat Now
- Phone86-575-83568096
- AddressNo. 38, Jiang'er Road, Sanjiang Industrial Concentration Zone
