Help CenterBamboo Skewer Stick Making Machine
Related Products
-
Bamboo Round Stick Making MachineUS$ 9,980 - 10,000MOQ: 1 Set -
Round Disposable Bamboo Chopstick Making MachineUS$ 9,410 - 9,500MOQ: 1 Set
-
Twin Bamboo Chopstick Making MachineUS$ 12,450 - 13,500MOQ: 1 Set
-
Bamboo Skewer Making MachineUS$ 9,980 - 10,000MOQ: 1 Set
-
Food Skewer Making MachineUS$ 500 - 7,000MOQ: 1 Set
*Introduction of the machines
This production line is composed of these 8 machines above, which are able to produce bamboo skewer BBQ stick .And the total output is 220,000 pieces/8hrs, this production need about 4-5 person to operate. total volume is about 8cbm
Name |
Power (kw) |
Weight (kg) |
Out size (cm) |
|
Saw machine |
1.5 X1 |
50 |
82X62X115 |
|
Bamboo split machine |
4.0 X1 |
500 |
310X78X135 |
|
fix thick and definitely wide flaker |
2.2×3 |
250 |
115X66X110 |
|
Bamboo filament shaping machine |
3.0×2 1.1X1 |
350 |
115X70X110 |
|
Bamboo filament set-size machine |
0.75 X1 |
150 |
160X78X90 |
|
Polishing machine |
2.2X1 |
200 |
260X120X120 |
800 |
Skewer sharpen machine |
1.1X1 0.37X1 |
300 |
140X80X100 |
|
Multi-sharpen machine |
0.37X1 |
50 |
50X60X50 |
|
|
|
|
|
|
* Machine function
1.sawing machine (bamboo)
sawed 400mm*160T,used for feeding and cutting bamboo, better length is 1-1.2m
2. Bamboo split machine
dissection cutter head(9-18heads)total 10,put the finished bamboo into the suit cutter headaccording to the size and polish them into bamboo flakes, width from 20mm to 22mm,speed of feeding is 57m/min
3. fix thick and definitely wide flaker
put the polished bamboo flakes into this machine and make it to be square and straight every side, width from 18-20 mm, width of flaker is 3-4mm,speed of feeding is 87m/min
4. Bamboo filament shaping machine
molding the diameter of the bamboo filament as your request ,speed of feeding is 87m/min
5. Bamboo filament set-size machine
set uniform length of the stick ,as usual 5 or 6times of toothpick length
6.Polishing machine
polish the raw stick after set-size
7.Skewer sharpen machine
Sharpen the tip of skewer
8.Multi-sharpen machine
Sharpen the cutter and saw

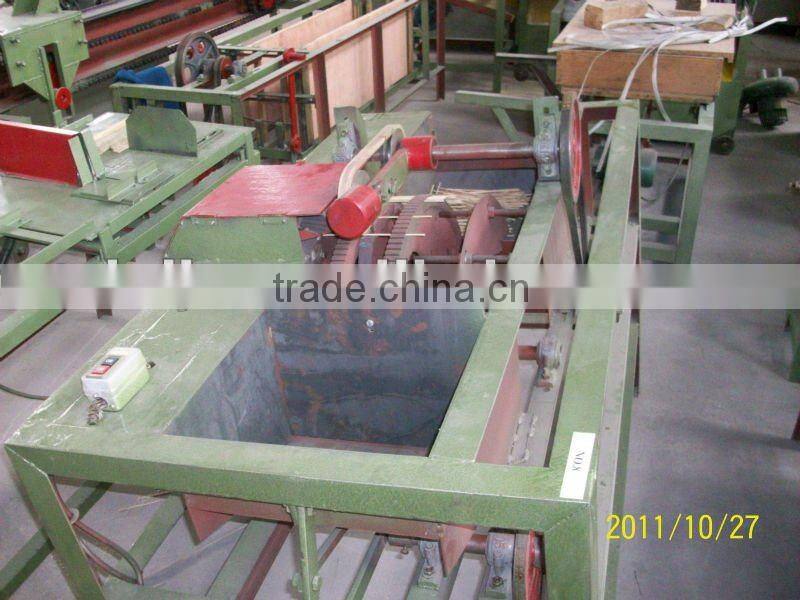

*Machine Photo
