Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Energy Saving Design Led Powersupply 12v 48w Indoor Lighting

Energy Saving Design Led Powersupply 12v 48w Indoor Lighting

Name: Energy Saving Design Led Powersupply 12v 48w Indoor Lighting
Brand: PT Power
SKU: 121606725

Energy Saving Design Led Powersupply 12v 48w Indoor Lighting thumbnail-1

Energy Saving Design Led Powersupply 12v 48w Indoor Lighting thumbnail-2

Energy Saving Design Led Powersupply 12v 48w Indoor Lighting photo-1

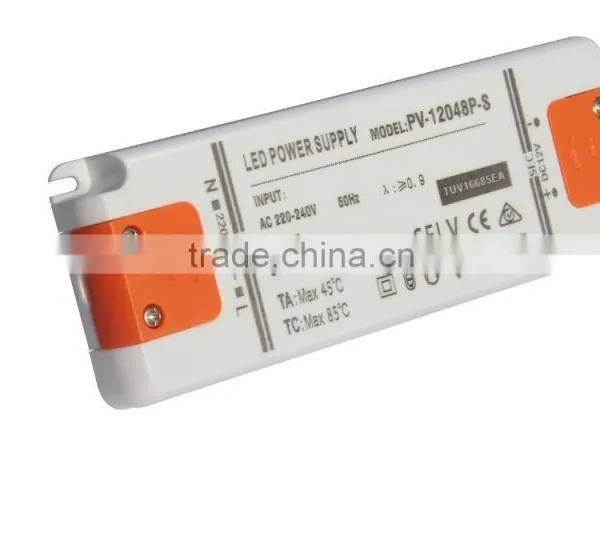

Energy Saving Design Led Powersupply 12v 48w Indoor Lighting photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

PT Power

Model Number:

PV-12048P-S

Contact Supplier Request Quote Chat Now

Zhuhai Pt Power Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou ShenZhen ZhuHai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name PT Power

Model Number PV-12048P-S

Output Power Other, 48W

Output Type Dual

Input Voltage Other, AC:176-264V

Output Voltage 12V

Output Current 4A(Max)

Product Description

1. Model: 48w LED driver constant voltage model
2. Average life span: 50000hours
3. Water proof level: IP20 level
4. Transform efficiency: more than 85%
5. Enter the time withstand 300VAC surge for 5 seconds.
7. The Voltage design (Voltage current mode).
8. Certification: CE, RoHS, CCC, SAA
9. Warranty: 3-years
10.The use of the AC input.
11.Characteristics: high efficiency, low consumption, energy saving , short circuit; overload, over voltage protection, heat protection. And is suitable for LED lighting and moving sign applications.

Products Model

PV-12048P-S

PV-24048P-S

Output

Output Voltage

12V±0.5V

24V±0.5V

Rated Output Voltage

12V

24V

Output current

0-4A

0-2A

Power

48W

Voltage Precision

12V±0.5V

24V±0.5V

Output Ripple

240mVP-P

480mVP-P

Load Reulation

±2%

Start/Rise time

500ms,20ms/230VAC

Retention time

20ms/230VAC

Input

Input Voltage range

170-264VAC

Input Frequency range

50-60HZ

FP values

≥0.9

Effeciency

>85%

Leak Current

0.25mA/240VAC

Protection

Overload Protection

±5% Rated Current output

Constant current restriction style protection

Over Voltage protection

110%-150%

Working Protection

Working Temperature

-25℃-50℃

Storage Temperature

-40℃-80℃

IP Rate

90%RH non condensing, refer to IP20

Shake Proof

10-500HZ,2G 10min/1cycle,preiod for 60min,each along X,Y,Z axes

Temperature Coefficient

±0.03%℃ (0-50℃)

EMC

Security Standard

IP20 approved:Design refer to LVD EN61347-2-13:2006,EN61347-1:2008

Withstand voltage

I/P-O/P:3.75KVAC,I/P-COVER:3.75KVAC,O/P-COVER:500VAC

Insulatuon Resistance

I/P-O/P:>100M Ohms/500VDC/25℃/70% RH

EMC

EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:2008,EN61547:2009

Others

Mean Free Error Time

50KHours (25℃)

Dimesnsion

159.9*57.8*18mm(L*W*H)

Weight

Production application

LED power supply is widely used in: LED wall washer, LED panel lights, LED flexible light strip, modules, etc.

Dimensions (Unit: mm):

Electrical schematics:

Graph:

Packing:

The outer packing(unit mm):

Packing Description

1. Carton size:

2. Total Total pcs products;

3. Carton Sealing was "H" shaped sealing;

4. Gross weight (GW): kg;

Watch out

1.Try to avoid the minefields, high-pressure area to install;

2.Ensure that the correct connection, in order to avoid short-circuit damage to components and trigger fires;

3.Connect the power supply is installed in a well ventilated place to ensure appropriate environmental temperature;

4.Prohibit live wiring, check to confirm wiring is correct, check the no short-circuit, then power;

5. If a problem occurs, do not make unauthorized repairs. If you have questions, please contact the supplier.

Company Information

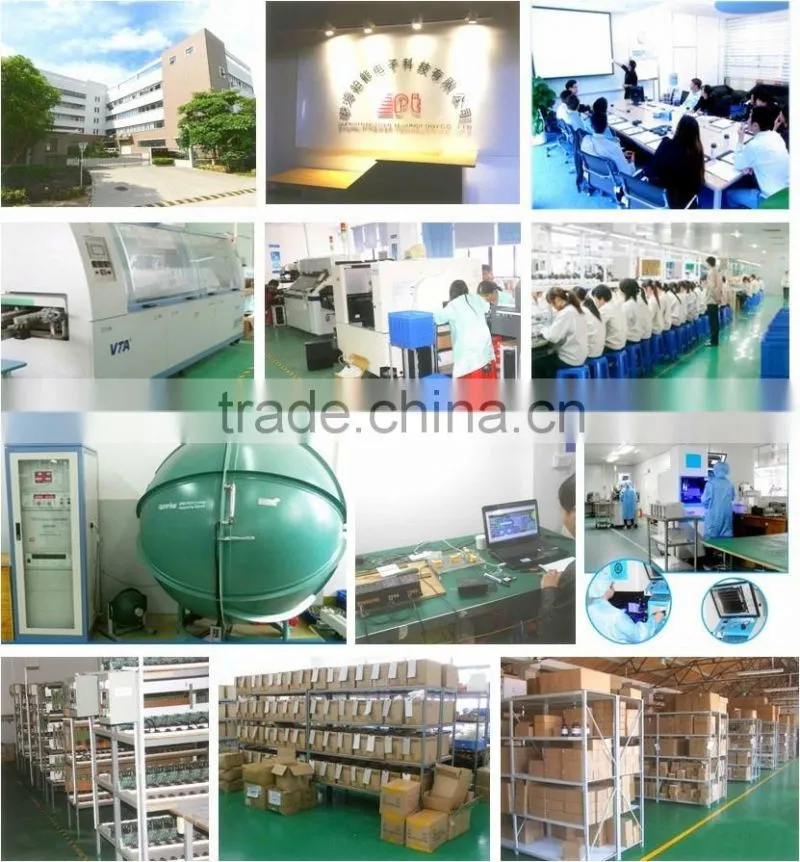

Founded in 2004, Zhuhai PT Power Technology Co,. Ltd is committed to manufacturing LED switching power supplies and LED drivers, which are mainly designed with constant voltage and constant current models. Included Waterproof series, Non-Waterproof series and Rainproof series, Dimmable series, etc. Our products have been used for LED street light, LED panel light, LED strips, LED modules, LED flood light, and LED down light, etc. During the passed decade and more, we have expanded our business, and have experienced professionally in manufacturing different types of LED switching power supplies and LED drivers from 6W to 480W. All of our products were met with a great satisfaction among our customers. We provide high quality products for very suitable prices. We are pleased to get your inquiry and we will come back to you ASAP. For further details, please log on our website () or visit our factory with face-to face meeting. Thank you!
