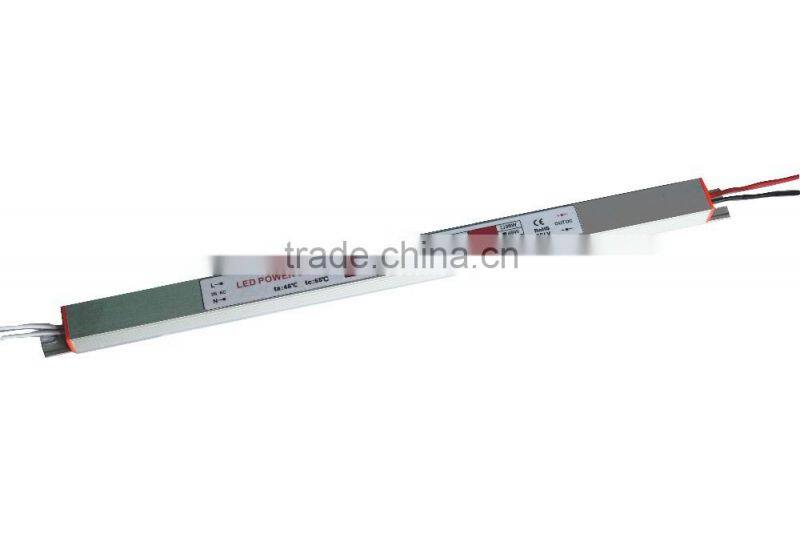

- 1. Model: 48W Ultra Thin LED Power for Slim Advertising Light Box signs Boards
- 2. Average life span: 50000hours
- 3. Waterproof level: IP20 level
- 4. Transform efficiency: more than 83%
- 5. Enter the time withstand 300VAC surge for 5 seconds.
- 6. The Voltage design (Voltage current mode).
- 7. Certification: CE, RoHS
- 8. Warranty: 1 years
- 9.The use of the AC input.
- 10.Characteristics: high efficiency, low consumption, energy saving , short circuit; overload, over voltage protection, heat protection. Suitable for LED lighting and moving sign applications.
| Products Model | PV-24048L | |
| Output | Output Voltage | 24V±0.5V |
| Rated Output Voltage | 24V | |
| Output current | 0-2A | |
| Power | 48W | |
| Voltage Precision | ±5% | |
| Output Ripple | 480mVP-P | |
| Load Reulation | ±2% | |
| Start/Rise time | 500ms,20ms/230VAC | |
| Retention time | 20ms/230VAC | |
| Input | Input Voltage range | 180-240VAC |
| Input Frequency range | 50-60HZ | |
| FP values | ≥0.9 | |
| Effeciency | >83% | |
| Leak Current | 0.25mA/240VAC | |
| Protection | Overload Protection | ±5% Rated Current output |
| Constant current restriction style protection | ||
| Over Voltage protection | 110%-150% | |
| Working Protection | Working Temperature | -25℃-50℃ |
| Storage Temperature | -40℃-80℃ | |
| IP Rate | IP20 | |
| Shake Proof | 10-500HZ, 2G 10min/1cycle,preiod for 60min,each along X,Y,Z axes | |
| Temperature Coefficient | ±0.03%℃ (0-50℃) | |
| EMC | Security Standard | Approved:Design refer to LVD EN61347-2-13:2006,EN61347-1:2008 |
| Withstand voltage | I/P-O/P:3.75KVAC | |
| Insulatuon Resistance | I/P-O/P:>100M Ohms/500VDC/25℃/70% RH | |
| EMC | EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:2008,EN61547:2009 | |
| Others | Mean Free Error Time | 50KHours (25℃) |
| Dimesnsion | 330*18*14.5mm (L*W*H) | |
| Weight | 94g | |
